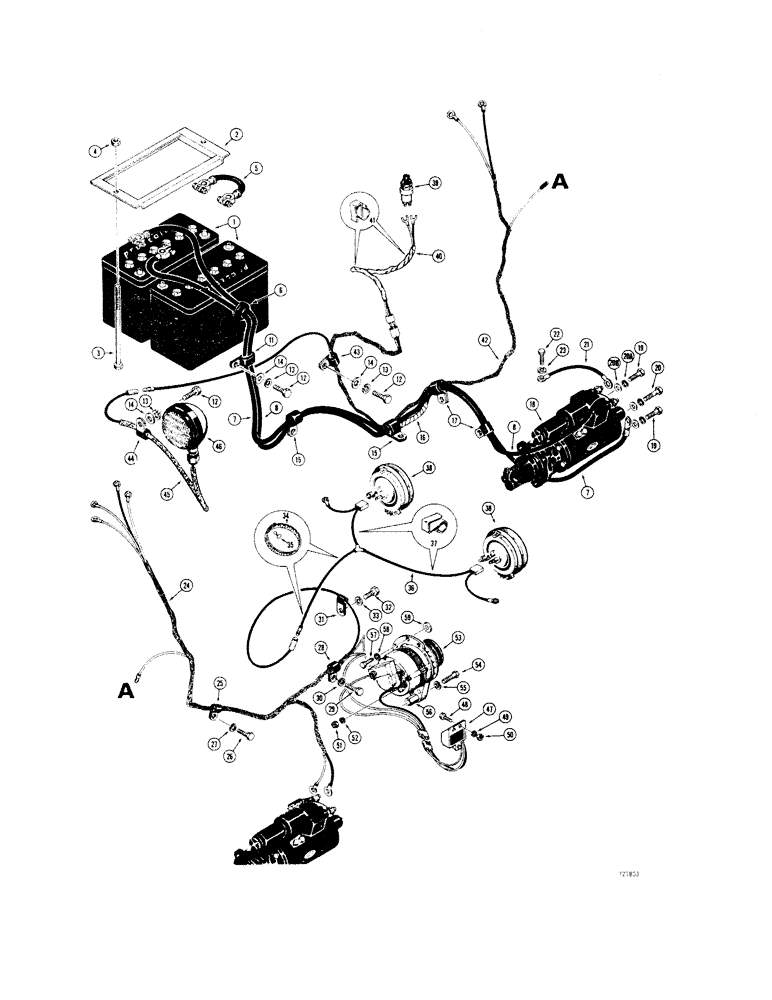

Запчасти Case 1150 (046) - ELECTRICAL SYSTEM (06) - ELECTRICAL SYSTEMS

1

A38411

DRY BATTERY

BATTERY - dry type, 12 volt (Without tilt-tite caps)

2шт.

1

A60878

BATTERY

BATTERY - dry type, 12 volt (With Tilt-Tite caps)

2шт.

1b

A60553

CAP

CAP - battery, non-spill (Not shown)

12шт.

2

D47810

BRACKET

HOLDDOWN - battery

2шт.

3

R21737

BOLT

ROD - holddown

4шт.

4

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

4шт.

5

72176

CABLE

CABLE - jumper

1шт.

6

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

GROMMET - battery cable

1шт.

7

D42967

CABLE

CABLE - ground (Negative)

1шт.

8

D35910

CABLE

CABLE - hot (Positive)

1шт.

11

D49498

CLAMP

CLAMP - cable

1шт.

12

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

3шт.

13

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

3шт.

14

195-33

WASHER,1/2"

WASHER - plain () 1/2"

3шт.

15

D35908

CLAMP,1" Clamping pipe

CLAMP -, Serial Range: cable-cowl

2шт.

16

R12586

TAPE

WRAP - battery cable

1шт.

17

R14668

CLAMP

CLAMP - cable to converter housing

2шт.

18

D42964

X

STARTER - Delco Remy #1113949 Service with R26137 starter, 13-848 bolt, (2) 13-832 bolts, (3) R24323 washers and (3) 92-8 lockwashers (Parts list figure 56 and 58), Serial Range: -7301780

1шт.

18

A15485

STARTING MOTOR

STARTER - Delco Remy #1113370 Service with R26137 starter, 13-848 bolt, (2) 13-832 bolts, (3) R24323 washers and (3) 92-8 lockwashers, Serial Range: -7301780

1шт.

18

RR46156

REMAN-STARTER

Remanufactured Starter

1шт.

18

RC46156

CORE-STARTER

Return Number

1шт.

18

R26137

STARTER MOTOR

STARTER - Delco Remy #1113998, Start Serial: 7301780

1шт.

19

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

BOLT, Hex, 1/2"-13 x 2", G5

2шт.

20

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

HHCS - 1/2" - 13 NC x 3"

1шт.

20a

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

3шт.

20b

R24323

WASHER

WASHER - special

3шт.

21

D43390

CABLE

CABLE - ground

1шт.

22

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

23

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

24

D47808

HARNESS

HARNESS - wiring, main

1шт.

25

49838

CLAMP

CLAMP -, Serial Range: harness-block

1шт.

26

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

27

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

1шт.

28

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

CLAMP - harness to head cover

1шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

30

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

31

NLS

NO LONGER SERVICED

- harness

1шт.

32

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2 - 13 NC x 3/4"

1шт.

33

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

1шт.

34

D41077

STRAP

STRAP - retainer, headlight wire

2шт.

35

D41075

STUD

STUD - strap mounting

2шт.

36

D35912

ELECTRICAL WIRE

WIRE WIRING - headlight

1шт.

37

49874

ROD

CLIP - wiring

2шт.

38

D41701

LAMP

HEADLIGHT ASSEMBLY - 24 volt (Parts list figure 48)

2шт.

39

D34924

SWITCH

SWITCH - push button, starter

1шт.

40

D39130

ELECTRICAL WIRE

WIRE WIRE - starter switch

1шт.

41

NLS

NO LONGER SERVICED

CLIP - wire

2шт.

42

D48264

HARNESS

HARNESS - taillight

1шт.

43

49839

CLAMP

CLAMP - harness

1шт.

44

49832

CLAMP

CLAMP - harness

1шт.

45

NLS

NO LONGER SERVICED

BUSHING,LARGE LOOM - wiring

1шт.

46

D35913

LAMP

TAILLIGHT ASSEMBLY - 24 volt (Parts list figure 48)

1шт.

47

A75072

REGULATOR

REGULATOR - voltage

1шт.

48

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

49

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

50

25-224

SQUARE NUT,Sq, 1/4"-20

NUT - hex. (1/4" - 20 NC)

3шт.

51

129-17

NUT,Hex, #10 - 24

NUT - hex. (#10 - 24 NC) Zinc plated

3шт.

52

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

53

A41360

ALTERNATOR

ALTERNATOR - electrical (Parts list figure 54) For adjusting strap, see figure 8 and mounting parts, see figure 26

1шт.

54

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

1шт.

55

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

56

25-106

NUT,3/8"-16, G5

NUT - hex. (3/8" - 16 NC)

1шт.

57

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

58

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

1шт.

59

A27343

BUSHING

WASHER - special

1шт.
