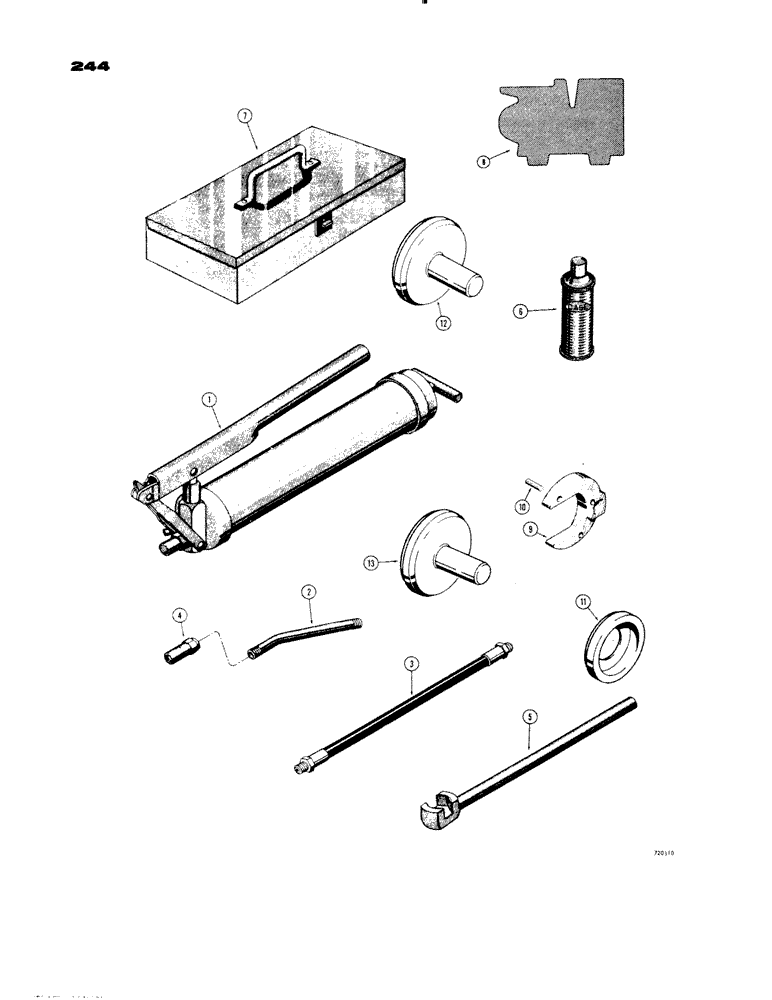

Запчасти Case 1150 (244) - TOOLS (05) - UPPERSTRUCTURE CHASSIS

1

219-106

GUN, GREASE

BARREL AND LEVER - grease gun

1шт.

2

D28956

CABLE EXTENSION

EXTENSION - nozzle

1шт.

3

D28957

HOSE

- FLEX (12" long)

1шт.

4

D28958

COUPLING, QUICK, FEM

COUPLING - hydraulic

1шт.

5

R21610

TOOL

WRENCH - track bolt

1шт.

6

B17072

START SPRAY FLUID

ETHER CAN - cold starting aid

1шт.

7

CAS10079

TOOL

KIT - optional, includes 1-6" slip joint plier, 1-1/4" x 4" screwdriver, 1-5/16" x 6" screwdriver, 1-1/2" ball peen hammer, 1-set of 7 double open end wrenches (3/8" to 1-1/8"), 1-12" adjustable wrench, 1-taper punch, 1-1/2" cold chisel, 1-18" Jimmy

1шт.

8

D44716

SPARE PART

GAUGE - wear, track components (Used on units with D36464 rollers only)

1шт.

8

R24731

GAUGE - wear, track components (Used on units other than those with D36464 rollers)

1шт.

D44110

OPEN END WRENCH

SET - spanner wrench (For removing and installing packing glands in threaded gland type hydraulic cylinders), Includes: Ref. 9 and 10

1шт.

9

D44111

OPEN END WRENCH

WRENCH - spanner, for 2-1/2" I.D. cylinders with 1-1/4" or 1-1/2" dia. piston rods

1шт.

D44112

OPEN END WRENCH

WRENCH - spanner, for 3" I.D. cylinders with 1-1/2" dia. piston rod

1шт.

D44113

OPEN END WRENCH

WRENCH - spanner, for 3" I.D. cylinders with 1-3/4" dia. piston rod

1шт.

D44114

OPEN END WRENCH

WRENCH - spanner, for 3-1/2" I.D. cylinders with 1-3/4" or 2" dia. piston rods

1шт.

D44115

OPEN END WRENCH

WRENCH - spanner, for 4" I.D. cylinders with 2" or 2-1/4" dia. piston rods

1шт.

D44116

OPEN END WRENCH

WRENCH - spanner, for 4-1/2" I.D. cylinders with 2-1/2" dia. piston rod

1шт.

10

D30107

PIN

- repair, spanner wrench (For 2-1/2" through 4" I.D. cylinders)

3шт.

D44118

SPARE PART

PIN - repair, spanner wrench (For D44116 wrench only)

3шт.
