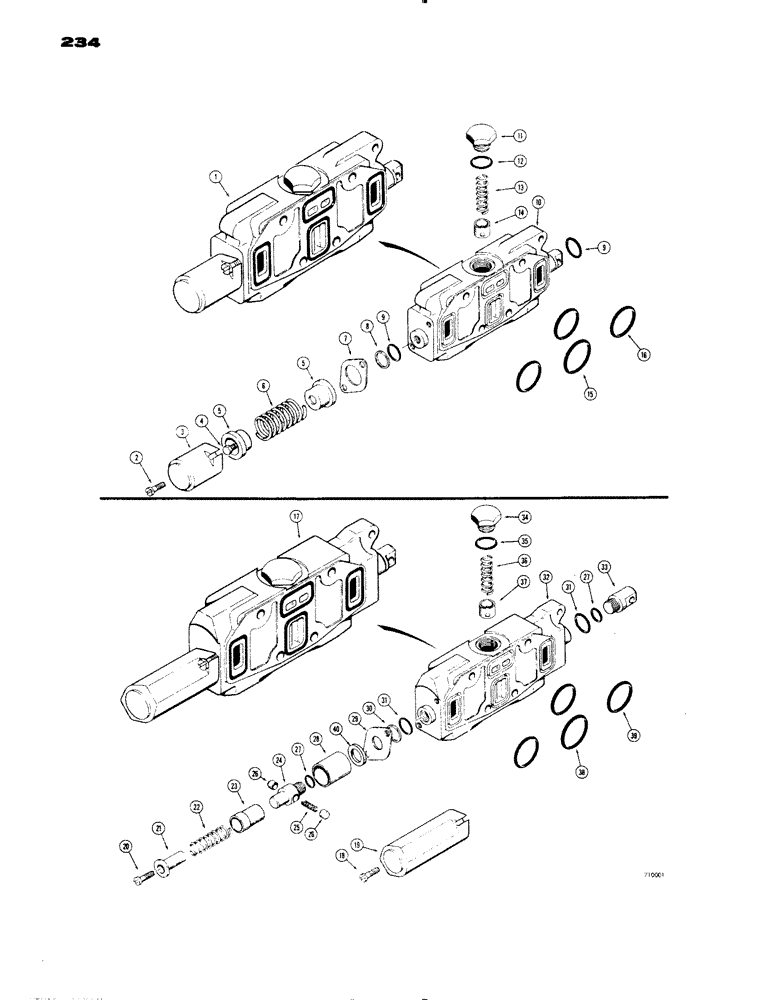

Запчасти Case 1150 (234) - D32123 DOZER TILT, ANGLING, PULL BEHIND, LOADER CLAM, OR FELLER BUNCHER, SHEAR AND CLAMP SECTION (05) - UPPERSTRUCTURE CHASSIS

1

D32123

KNIFE SECTION

VALVE SECTION - equipment control valve, Includes: Ref. 2 - 16

1шт.

2

71-512

SCREW,Slotted Fil Hd, 5/16"-18 x 3/4"

FHMS - 5/16" - 18 NC x 3/4"

2шт.

3

D32221

COVER

CAP - valve section

1шт.

4

D32128

BOLT (SPREADER)

BOLT - stripper

1шт.

5

D32130

GUIDE

- spring

2шт.

6

D32129

SPRING

- centering

1шт.

7

D32456

PLATE

- retaining

1шт.

8

D32215

RING

- backup

1шт.

9

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

SEAL - "O" ring, 7/8" I.D. x 1-1/8" O.D.

2шт.

10

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - valve section

1шт.

11

39007

CAP

- check valve

1шт.

12

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL "O" ring, 1" I.D. x 1-3/8" O.D.

1шт.

13

R15308

VALVE SPRING

SPRING - check valve

1шт.

14

D45694

SPOOL

POPPET - check valve

1шт.

15

D32127

O-RING

SEAL - "O" ring, 1-13/16" I.D. x 2" O.D.

1шт.

16

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O" ring, 1-9/16" I.D. x 1-3/4" O.D.

3шт.

17

D38092

VALVE SECTION - CS & S #HP 1030, dozer lift, Includes: Ref. 18 - 40

1шт.

17

D52443

VALVE

SECTION - CS & S #SY 1030, dozer lift, Includes: Ref. 18 - 40

1шт.

D52479 spacer is used only in D52443 section.

1шт.

18

71-514

SCREW,Slotted Fil Hd, 5/16"-18 x 7/8"

FHMS - 5/16" - 18 NC x 7/8", D38092 and D52443 dozer lift sections

2шт.

19

D32459

CAP

- valve section, D38092 and D52443 dozer lift

1шт.

20

D39711

SCREW - fillister head, special, D38092 and D52443 dozer lift sections

1шт.

21

D32452

RETAINER - spring, inner, D38092 and D52443 dozer lift sections

1шт.

22

D32453

SPRING

- centering, D38092 and D52443 dozer lift sections

1шт.

23

D32454

RETAINER

- spring, outer, D38092 and D52443 dozer lift sections

1шт.

24

D32455

RETAINER

- poppet, D38092 and D52443 dozer lift sections

1шт.

25

D32450

SPRING

- poppet, D38092 and D52443 dozer lift sections

1шт.

26

D32226

SPOOL

POPPET - relief, D38092 and D52443 dozer lift sections

2шт.

27

D38813

O-RING

SEAL "O" ring, 1/2" I.D. x 11/16" O.D., D38092 and D52443 dozer lift sections

2шт.

28

D32225

SLEEVE - poppet, D38092 and D52443 dozer lift sections

1шт.

29

D32456

PLATE

- retaining, D38092 and D52443 dozer lift sections

1шт.

30

D32457

RING

- backup, D38092 and D52443 dozer lift sections

1шт.

31

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL "O" ring, 1" I.D. x 1-1/4" O.D., D38092 and D52443 dozer lift sections

2шт.

32

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - valve section, D38092 and D52443 dozer lift sections

1шт.

33

D32223

LUG

- spool, D38092 and D52443 dozer lift sections

1шт.

34

39007

CAP

- check valve, D38092 and D52443 dozer lift sections

1шт.

35

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL - "O" ring, 1" I.D. x 1-3/8" O.D., D38092 and D52443 dozer lift sections

1шт.

36

R15308

VALVE SPRING

SPRING - check valve, D38092 and D52443 dozer lift sections

1шт.

37

D45694

SPOOL

POPPET - check valve, D38092 and D52443 dozer lift sections

1шт.

38

D32127

O-RING

SEAL - "O" ring, 1-13/16" I.D. x 2" O.D., D38092 and D52443 dozer lift sections

1шт.

39

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O" ring, 1-9/16" I.D. x 1-3/4" O.D., D38092 and D52443 dozer lift sections

3шт.

40

D52479

SPACER - stop, D38092 and D52443 dozer lift sections

1шт.

D52479 spacer is used only in D52443 section.

1шт.
