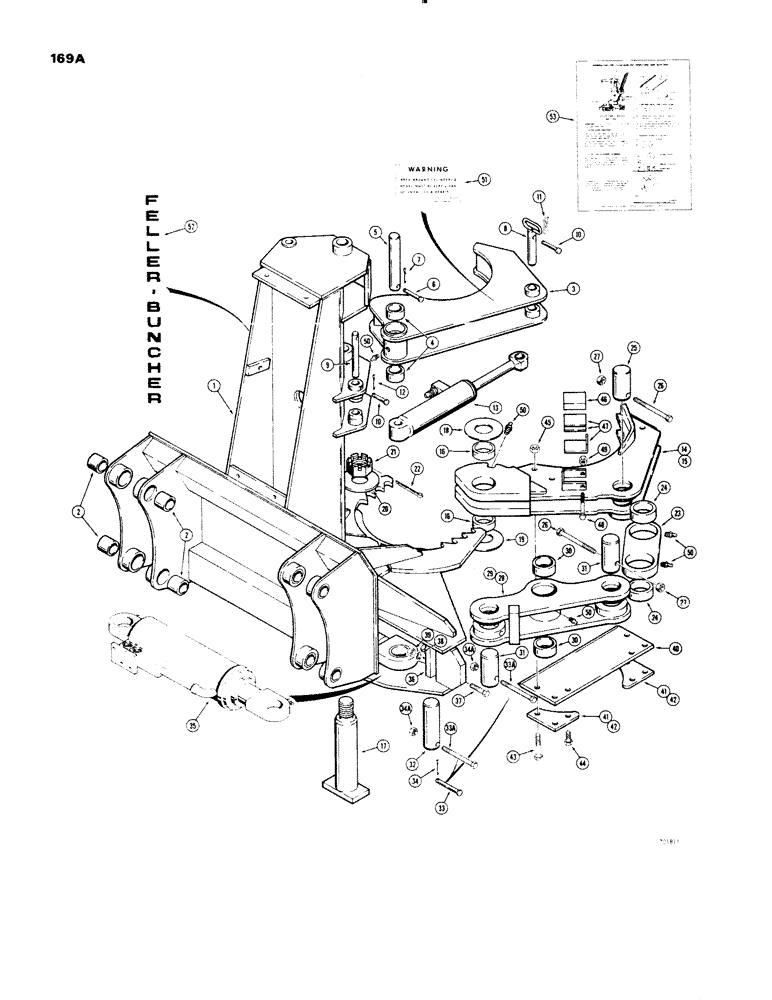

Запчасти Case 1150 (169A) - FELLER BUNCHER (MECHANICAL PARTS) (05) - UPPERSTRUCTURE CHASSIS

1

NSS

NOT SOLD SEPARAT

FRAME ASSEMBLY - feller buncher, Includes: Ref. 2

1шт.

2

R14220

BUSHING

- frame

8шт.

3

S502233

GRAB ARM ASSEMBLY - feller buncher, Includes: Ref. 4

2шт.

4

S202134

BUSHING

- grab arm

2шт.

5

S205348

PIN

- pivot, grab, Serial Range: arm-frame

2шт.

6

141-339

X

PIN - clevis

2шт.

7

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

8

S216699

PIN - pivot, grab arm cylinder rod eye

2шт.

9

S27349M1

X

PIN - pivot, grab arm, Serial Range: cylinder-frame

2шт.

10

141-327

PIN - clevis

4шт.

11

A70250

PIN

- hair, cotter (Used at grab arm cylinder rod eye)

2шт.

12

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

13

S504748

CYLINDER - hydraulic, grab arm (Parts list figure 209C)

2шт.

14

S58594M1

BLADE ARM ASSEMBLY - feller buncher, R.H.

1шт.

15

S58595M1

BLADE ARM ASSEMBLY - feller buncher, L.H., Includes: Ref. 16

1шт.

16

S202195

BUSHING

- S58594M1 and S58595M1 blade arms

2шт.

17

S213285

PIN - pivot, blade, Serial Range: arms-frame

1шт.

18

S88568

SHIM

WASHER - blade arm (.060" thick)

1шт.

19

S88569

SHIM

WASHER - blade arm (.090" thick)

1шт.

20

95-32

WASHER,2 1/8" x 4 1/2" x .179"

- S213285 pin

1шт.

21

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

NUT - slotted (2" - 4-1/2 NC)

1шт.

22

132-161

COTTER PIN,1/4" x 3 1/2"

PIN - split (Cotter), 1/4" x 3 1/2"

1шт.

23

S212933

LINK ASSEMLBY - blade arm, Includes: Ref. 24

2шт.

24

S202195

BUSHING

- link

2шт.

25

S211492

PIN - pivot, link to blade arm

2шт.

26

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6"

4шт.

27

131-79

NUT - hex., lock (5/8" - 11 NC)

4шт.

28

S502235M1

LEVER ASSEMBLY - blade arm, R.H., Includes: Ref. 30

1шт.

29

S502236M1

LEVER ASSEMBLY - blade arm, L.H., Includes: Ref. 30

1шт.

30

S202193

BUSHING

- S502235M1 and S502235M2 levers

2шт.

31

S211493M1

X

PIN - pivot, lever (At lever ends)

4шт.

32

S211494M1

PIN - pivot, lever (At lever center)

2шт.

33

141-241

PIN - clevis, early production

4шт.

33a

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6", late production

4шт.

34

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), (Early production) 1/8" x 1 1/4"

4шт.

34a

131-79

NUT - hex., lock (5/8" - 11 NC)

4шт.

35

S502258M2

CYLINDER - hydraulic, shear (Parts list figure 209C)

1шт.

36

S83276

SPACER - adjusting, shear closing

1шт.

37

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

38

92-8

LOCK WASHER,1/2"

4шт.

39

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

40

S215932

EDGE - cutting, shear

2шт.

41

S213284

SUPPORT - R.H. cutting edge

2шт.

42

S216684

SUPPORT - L.H. cutting edge

2шт.

43

S87757

BOLT - special (3/4" - 10 NC x 5-1/2")

8шт.

44

S85827

BOLT - special (3/4" - 10 NC x 2-1/2")

4шт.

45

S87763

NUT - special (3/4" - 10 NC)

12шт.

46

S87847

BAR - wear, blade arms

2шт.

47

S87846

SHIM - angle retainer, wear bar

2шт.

47

S87843

SHIM - flat, wear bar

1шт.

48

13-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

2шт.

49

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

2шт.

50

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

13шт.

51

S87964

DECAL - "Warning", grab arm

2шт.

52

S504702

DECAL - "Feller-Buncher", frame

2шт.

53

S504229

DECAL - operation and maintenance (On tractor)

1шт.
