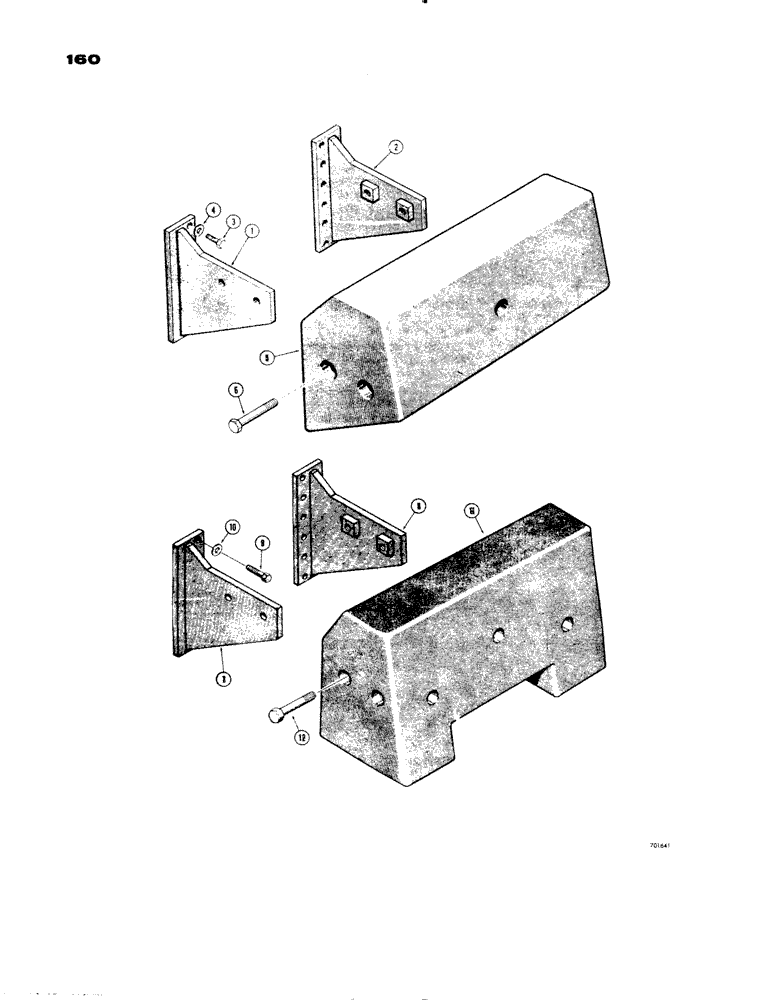

Запчасти Case 1150 (160) - LOADER COUNTERWEIGHTS, COUNTERWEIGHT (2500 LBS.) (05) - UPPERSTRUCTURE CHASSIS

1

D34091

BRACKET - L.H.

1шт.

2

D34092

BRACKET - R.H.

1шт.

3

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

12шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

12шт.

5

D38567

COUNTERWEIGHT - 2500 lbs.

1шт.

6

13-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

4шт.

7

D34091

BRACKET - L.H., counterweight (3200 pounds)

1шт.

8

D34092

BRACKET - R.H., counterweight (3200 pounds)

1шт.

9

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Counterweight (3200 pounds) Hex, 3/4"-10 x 2", G5

12шт.

10

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, counterweight (3200 pounds)

12шт.

11

D41474

COUNTERWEIGHT - 3200 lbs.

1шт.

12

13-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

Counterweight (3200 lbs.) Hex, 1"-8 x 6", G5

4шт.
