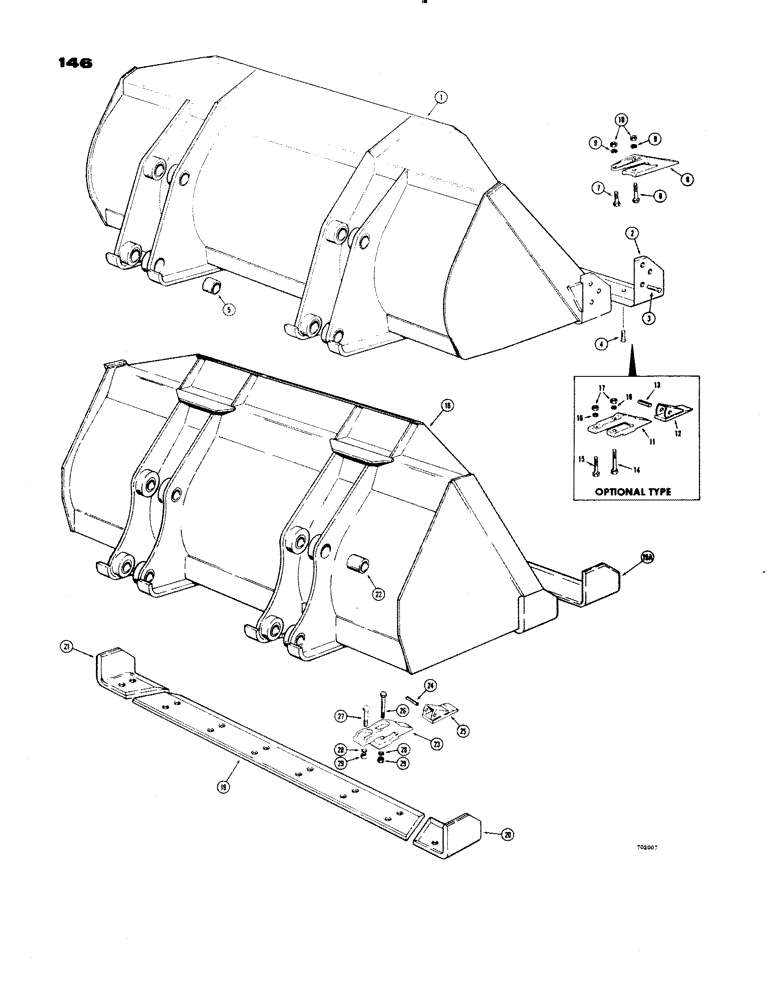

Запчасти Case 1150 (146) - LOADER BUCKETS, 1-1/2 CUBIC YARD BUCKET (MACHINERY ITEMS) (05) - UPPERSTRUCTURE CHASSIS

D33795

BUCKET - 1-1/2 cu. yd., with teeth, Includes: Ref. 1 - 5

1шт.

1

D33797

BUCKET - 1-1/2 cu. yd, without teeth, Includes: Ref. 2 - 5

1шт.

2

72855

BLADE

CUTTING EDGE - bucket

1шт.

3

46-840

RIVET,Pop, 1/2" x 2 1/2"

- 1/2" dia. x 2-1/2"

6шт.

4

46-836

RIVET,Csk, 1/2" x 2 1/4"

- 1/2" dia. x 2-1/4"

12шт.

5

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

bucket ear

8шт.

6

R18502

TOOTH

- bucket, standard type

7шт.

7

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2" - 20 NF x 2-1/4", standard teeth (D33795 bucket)

7шт.

8

14-852

BOLT,Hex, 1/2" - 20 x 3-1/4", Gr 5

HHCS - 1/2" - 20 NF x 3-1/4", standard teeth (D33795 bucket)

7шт.

9

92-8

LOCK WASHER,1/2"

standard teeth (D33795 bucket) 1/2"

14шт.

10

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF), standard teeth (D33795 bucket)

14шт.

D40445

TOOTH

ASSEMBLY - optional type, Includes: Ref. 11 - 13

7шт.

11

NSS

NOT SOLD SEPARAT

SHANK - tooth, optional (D33795 bucket)

1шт.

12

D39090

POINT

- tooth, optional (D33795 bucket)

1шт.

13

D39448

PIN

FLEX PIN - point, optional teeth (D33795 bucket)

1шт.

14

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

Optional teeth (D33795 bucket) Hex, 1/2"-13 x 4 1/4", G5

7шт.

15

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

HHCS - 1/2" - 13 NC x 3", optional teeth (D33795 bucket)

7шт.

16

92-8

LOCK WASHER,1/2"

optional teeth (D33795 bucket) 1/2"

14шт.

17

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC), optional teeth (D33795 bucket)

14шт.

18

D49212

BUCKET - 1-3/4 cu. yd., (machinery item) Includes: Ref. 19 - 22

1шт.

19

D49199

BLADE

CUTTING EDGE - center, 64-5/8", 1-3/4 cubic yard bucket (machinery item)

1шт.

19a

D51889

EDGE

CUTTING EDGE - one-piece, 1-3/4 cubic yard bucket (machinery item)

1шт.

20

D49200

BLADE

CUTTING EDGE - R.H., 1-3/4 cubic yard bucket (machinery item)

1шт.

21

D49201

BLADE

CUTTING EDGE - L.H., 1-3/4 cubic yard bucket (machinery item)

1шт.

22

D40091

BUSHING,51.02mm ID x 63.5mm OD x 47.6mm L

- bucket mounting, 1-3/4 cubic yard bucket (machinery item)

4шт.

NLS

NO LONGER SERVICED

- bucket, (D49212), Includes: Ref. 23 - 25

8шт.

23

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket (D49212 bucket)

1шт.

24

L32090

PIN

FLEX PIN - tooth, bucket (D49212 bucket)

1шт.

25

L32089

POINT

- tooth, bucket (D49212 bucket)

1шт.

26

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

HHCS - 5/8" - 11 NC x 3-1/2", bucket teeth (D49212 bucket)

8шт.

27

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

HHCS - 5/8" - 11 NC x 2-3/4", bucket teeth (D49212 bucket)

8шт.

28

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Bucket teeth (D49212 bucket) 5/8"

16шт.

29

25-1010

NUT,5/8"-11, G5

Bucket teeth (D49212 bucket) 5/8"-11, G5

16шт.
