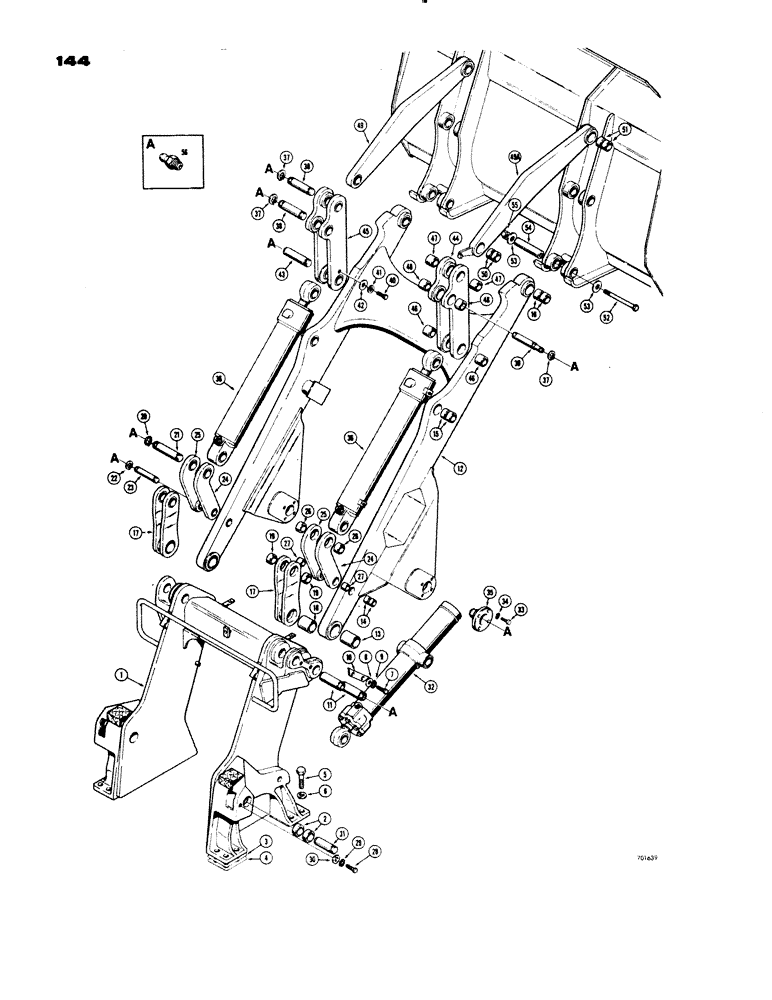

Запчасти Case 1150 (144) - LOADER-MECHANICAL, USED ON TRACTOR SERIAL NO. 7300094 & AFTER (05) - UPPERSTRUCTURE CHASSIS

1

D36056

FRAME - uprightk, Includes: Ref. 2

1шт.

2

D33678

BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L

- frame

4шт.

3

73169

SHIM - 16 gauge

1шт.

4

73170

SHIM

- 10 gauge

1шт.

5

14-1644

BOLT,Hex, 1" - 14 x 2-3/4", Gr 5, Full Thd

HHCS - 1" - 14 NF x 2-3/4"

16шт.

6

D30196

WASHER

- special

16шт.

7

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

(If used) Hex, 5/8"-18 x 1 3/4", G5

4шт.

7

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

(If used) Hex, 5/8"-11 x 1 3/4", G5, Full Thd

4шт.

8

195-41

WASHER,5/8"

4шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

10

D33630

PLATE

- retaining

2шт.

11

D33592

PIVOT

PIN - upright to lift frame and linkage

4шт.

12

D49194

FRAME - loader liftk, Includes: Ref. 13 - 16

1шт.

13

D33616

BUSHING

- frame

2шт.

14

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- frame

4шт.

15

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- frame

4шт.

16

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- frame

4шт.

17

D49191

DRAG LINK

LINK - upright to lift framek, Includes: Ref. 18 and 19

2шт.

18

D33616

BUSHING

- link

1шт.

19

D33659

BUSHING,51.02mm ID x 63.5mm OD x 19.1mm L

- link

2шт.

20

D26919

SNAP RING,#200, Ext

RING - snap, . #200, Ext

4шт.

21

D33637

PIN

- lever to tilt cylinder

2шт.

22

D25279

SNAP RING,M35, Int

RING - snap

4шт.

23

D33638

PIN

- lever to lift frame

2шт.

24

D49186

LEVER

- lift frame to tilt cylinder, R.H., Includes: Ref. 26 and 27

2шт.

25

D49187

LEVER

- lift frame to tilt cylinder, L.H., Includes: Ref. 26 and 27

2шт.

26

D33659

BUSHING,51.02mm ID x 63.5mm OD x 19.1mm L

- lever (D49186 and D49187 lever)

1шт.

27

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- lever (D49186 and D49187 lever)

1шт.

28

14-1020

BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5

Hex, 5/8"-18 x 1 1/4

2шт.

29

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

30

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- pin retaining

2шт.

31

70524

PIN

- lift cylinder mounting

2шт.

32

REF

INSTRUCTION

CYLINDERS - lift (See figure 206 for proper cylinder)

2шт.

33

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

16шт.

34

92-8

LOCK WASHER,1/2"

16шт.

35

D37960

PIN

- lift cylinder mounting

4шт.

36

REF

INSTRUCTION

CYLINDER - bucket (See figures 202 and 203A for cylinders)

2шт.

37

D26919

SNAP RING,#200, Ext

RING - snap, #200, Ext

8шт.

38

D36055

AXLE PIN

PIN - lever to L.H. tilt cylinder and tilt links

3шт.

39

D36051

PIN

- lever to R.H. tilt cylinder

1шт.

40

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

2шт.

41

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

42

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special

2шт.

43

D33660

PIN

- lever to lift frame

2шт.

44

D51762

LEVER

- frame to tilt cylinder and link, R.H., Includes: Ref. 46 - 48

1шт.

45

D49217

LEVER - frame to tilt cylinder and link, L.H., Includes: Ref. 46 - 48

1шт.

46

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- D51762 and D49217 lever

2шт.

47

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- D51762 and D49217 lever

2шт.

48

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- D51762 and D49217 lever

2шт.

49

D33625

LINK - tilt, L.H., Includes: Ref. 50 and 51

2шт.

49a

D51761

LINK - tilt, R.H., Includes: Ref. 50 and 51

1шт.

50

D33678

BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L

- D33625 and D51761 links

2шт.

51

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- D33625 and D51761 links

2шт.

52

15-12160

BOLT,Hex, 3/4" - 10 x 10", Gr 5

HHCS - 3/4" - 10 NC x 10"

4шт.

53

72915

GASKET

- pin retaining

8шт.

54

R13427

PIN

- pivot

4шт.

55

230-41112

LOCK NUT,3/4"-10, GA

NUT - lock (3/4" - 10 NC)

4шт.

56

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

18шт.
