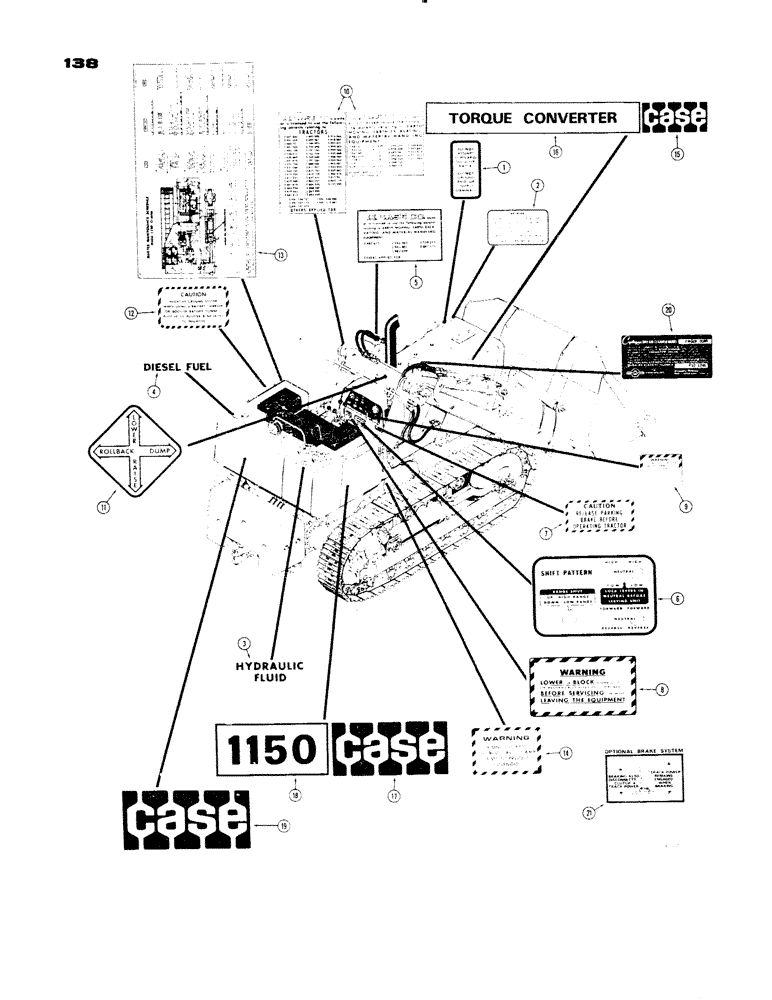

Запчасти Case 1150 (138) - DECALS (05) - UPPERSTRUCTURE CHASSIS

1

321-1061

DECAL

- alternator instructions

1шт.

2

321-367

DECAL

- oil filter replacement, L.H. engine

1шт.

3

321-229

DECAL

- hydraulic fluid, R.H. top tank

1шт.

4

321-230

DECAL

- Diesel Fuel, L.H. top tank

1шт.

5

321-246

DECAL

- patent, tractor (L.H. side)

1шт.

6

D36894

DECAL

- transmission control, on dash

1шт.

7

321-2387

DECAL

- Release Parking Brake, on dash

1шт.

8

321-2112

DECAL

- warning, Lower or Block Hydraulically (On dash)

1шт.

9

321-1089

DECAL

- warning, starting instructions (At starter switch)

1шт.

10

321-663

DECAL

- patent, equipment (L.H. side)

1шт.

11

321-920

DECAL

- loader controls, on dash

1шт.

12

321-1062

DECAL

- battery, negative ground (Under L.H. arm rest)

1шт.

13

321-916

DECAL

- Master Maintenance Schedule, under L.H. arm rest

1шт.

14

321-1258

DECAL

- Fuse warning, return-to-dig

1шт.

15

321-1438

DECAL

- Case, 3" high (On hood)

2шт.

16

321-1483

DECAL

- torque converter (On hood)

2шт.

17

321-1441

DECAL

- Case, 5" high (On side of tank)

2шт.

18

321-1479

DECAL

- 1150, 5" high (On side of tank)

2шт.

19

321-1445

DECAL

- Case, 7" high (On rear of tank)

1шт.

20

321-1731

DECAL

- air cleaner instructions (On air cleaner)

1шт.

21

321-2114

DECAL

- optional brake system (On heel plate)

1шт.

R24006

DECAL

KIT - decal - all above decals except Ref. 2

1шт.
