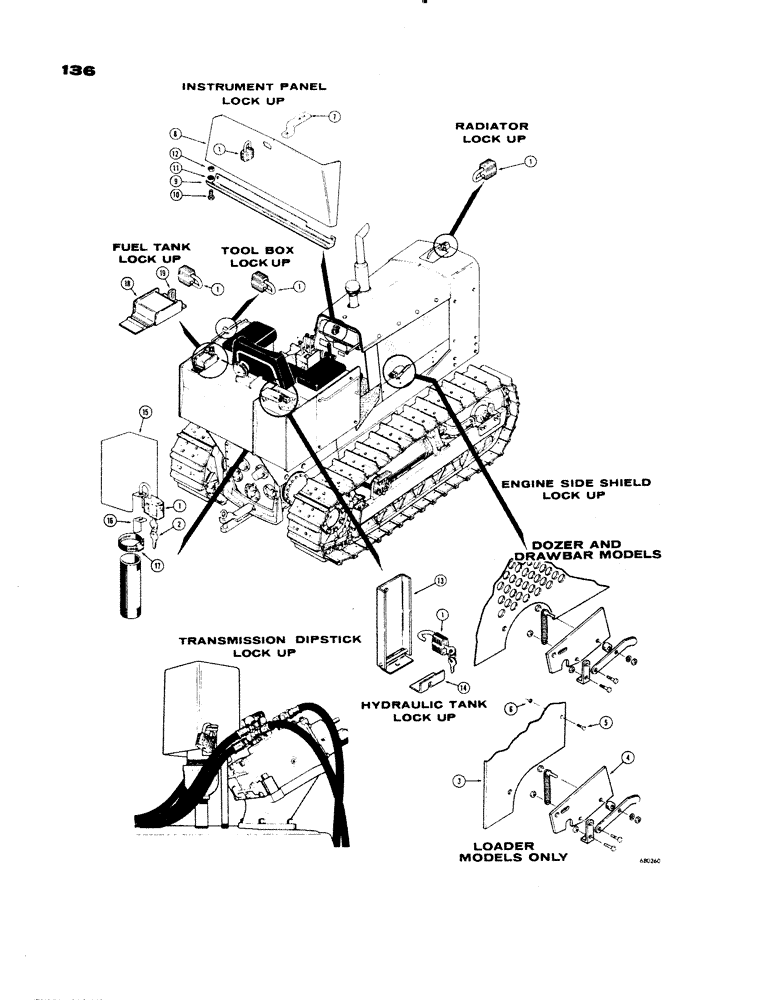

Запчасти Case 1150 (136) - LOCK UP PARTS (05) - UPPERSTRUCTURE CHASSIS

1

D40678

LOCK

PADLOCK - crawler lock up (Master #X - 2138)

8шт.

1

R29554

LOCK

PADLOCK - crawler lock up (Master #500)

8шт.

2

D40679

KEY

- D40679 padlock (Set of two) Master #X 2138

1шт.

2

R29555

KEY

- R29554 Padlock (Set of two) No master No.

1шт.

3

D42169

SHIELD - side, R.H., lock up

1шт.

4

D38535

COVER

- side shield, inner, engine, lock up

1шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Engine side shield lock up Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

6

131-351

LOCK NUT,5/16"-18, GA

NUT - hex, lock (5/16" - 18 NC), engine side shield lock up

4шт.

7

D41733

WASHER

TAB - locking, instrument panel

1шт.

8

D41729

GUARD ASSY.

GUARD - instrument panel, lock up

1шт.

9

D41728

BRACKET

- instrument panel guard, lock up

1шт.

10

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Instrument panel lock up Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Instrument panel lock up 1/4"

1шт.

12

25-104

NUT,1/4"-20, G5

Instrument panel lock up 1/4"-20, G5

1шт.

13

D41245

GUARD

- hydraulic tank, lock up

1шт.

14

D41242

BRACKET

- hydraulic tank, lock up

1шт.

15

D42185

COVER

- transmission filler tube (For service use R25736 cover and R25737 bracket), dipstick lock up

1шт.

15

R25736

COVER

- transmission filler tube, must be used with R25737 bracket, dipstick lock up

1шт.

16

R25737

BRACKET

- filler tube lock, transmission dipstick

1шт.

17

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- dipstick lock, transmission #36, 1.81/2.75 Type F Worm

1шт.

18

D41705

COVER

GUARD - fuel cap, tank lock up

1шт.

19

NSS

NOT SOLD SEPARAT

TAB - guard lock, fuel tank lock up

1шт.
