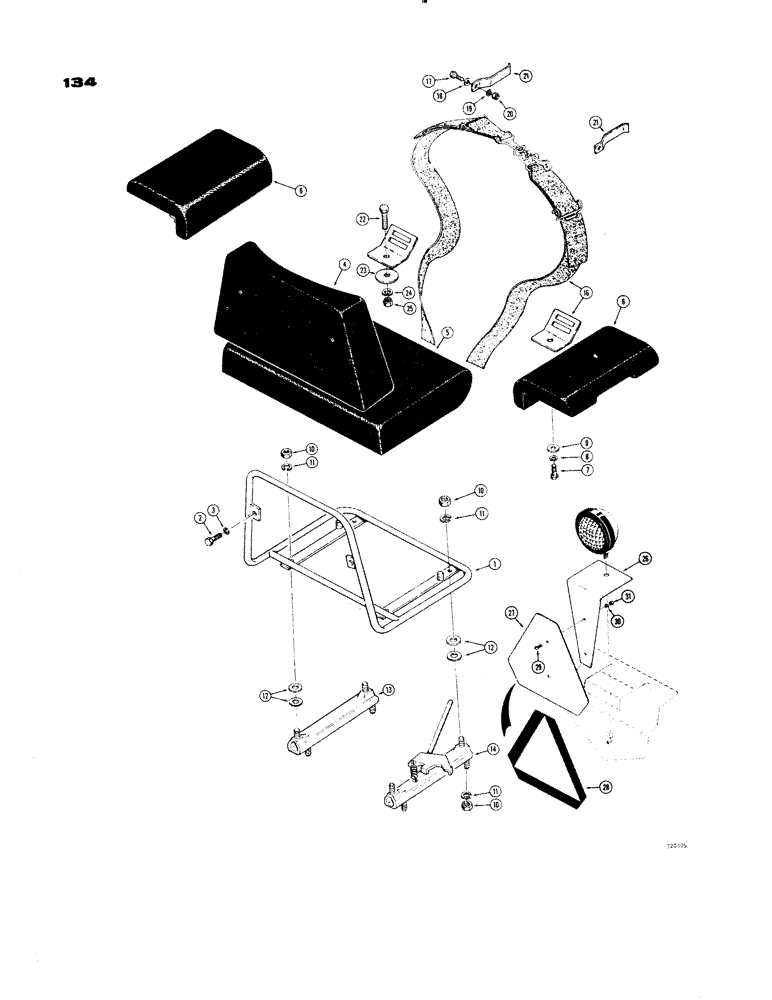

Запчасти Case 1150 (134) - SEAT FRAME AND CUSHIONS (05) - UPPERSTRUCTURE CHASSIS

1

D36279

SEAT

FRAME - seat

1шт.

2

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

D44169

CUSHION

- seat, back

1шт.

5

D36316

CUSHION

- seat

1шт.

6

D36317

CUSHION

- arm and hip

2шт.

7

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

9

195-18

WASHER,1/4"

- plain () 1/4"

4шт.

10

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF) D40238 and D40237 slides

8шт.

10

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC) R25578 and R26375 slides

8шт.

11

92-5

LOCK WASHER,5/16"

8шт.

12

195-21

WASHER,5/16"

- plain () 5/16"

8шт.

13

D40238

SLIDE

- seat (Use R26375 slide and (4) 25-105 nuts for service) Has NF threads

1шт.

13

R26375

ADJUSTER

SLIDE - seat, has NC threads

1шт.

14

D40237

SLIDE

AND LATCH - seat, has NF threads (Use R25578 slide and (4) 25-105 nuts for service)

1шт.

14

R25578

SLIDE

AND LATCH - seat, has NC threads

1шт.

15

D44411

SEAT

BELT ASSEMBLY - seat, 1-13/16" wide (Includes hardware) Not illustrated

1шт.

16

L48907

BELT

SAFETY BELT, 3" wide

1шт.

17

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Seat belt Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

18

95-8

WASHER,1/2"

- standard wrot, seat belt 1/2"

2шт.

19

92-8

LOCK WASHER,1/2"

seat belt 1/2"

2шт.

20

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC), seat belt

2шт.

21

D50522

HOOK

- D44411 belt, seat

2шт.

21

R24720

HOOK

- L48907 belt, seat

2шт.

22

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Seat belt Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

23

195-21

WASHER,5/16"

- plain (), Seat belt 5/16"

2шт.

24

92-5

LOCK WASHER,5/16"

seat belt 5/16"

2шт.

25

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), seat belt

2шт.

26

D52014

BRACKET - mounting, emblem, seat belt

1шт.

A59449

NO LONGER SERVICED

EMBLEM ASSEMBLY - slow moving vehicle, seat beltk, Includes: Ref. 27 and 28

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE - mounting, decal, seat belt

1шт.

28

321-1751

DECAL

EMBLEM - S.M.V. decals, seat belt

1шт.

29

173-96

SCREW,Sl Rnd Hd, #10 - 24 x 7/16"

- flat head (#10 - 24 NC x 7/17"), seat belt

2шт.

30

92-3

LOCK WASHER,#10

WASHER, LOCK, , Seat belt #10

2шт.

31

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24 NC), seat belt

2шт.
