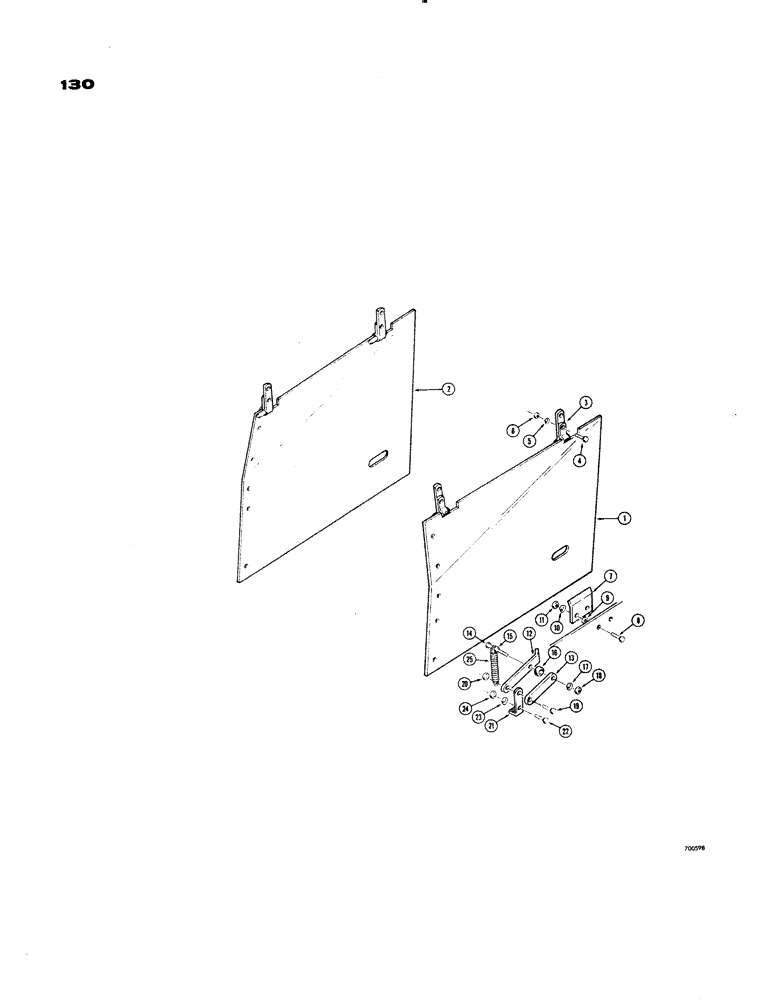

Запчасти Case 1150 (130) - ENGINE SIDE SHIELDS, LOADER MODELS (05) - UPPERSTRUCTURE CHASSIS

1

D36499

GUARD

SHIELD - side, R.H.

1шт.

2

D36498

GUARD

SHIELD - side, L.H.

1шт.

3

D43293

CLAMP

- shield

4шт.

4

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

8шт.

5

92-6

LOCK WASHER,3/8"

8шт.

6

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

7

D36503

RETAINER

CLIP - retainer

2шт.

8

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

9

D36627

BUSHING

SPACER

2шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

12

D36500

LATCH

- side shield, inner

2шт.

13

D36504

LOCK

LATCH - side shield, outer

2шт.

14

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

15

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

16

D38524

SPACER

2шт.

17

92-6

LOCK WASHER,3/8"

2шт.

18

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex., lock (3/8" - 16 NC)

2шт.

19

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

20

131-352

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC)

2шт.

21

D36626

BRACKET

- spring mounting

2шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

25

A30711

SPRING

- latch

2шт.
