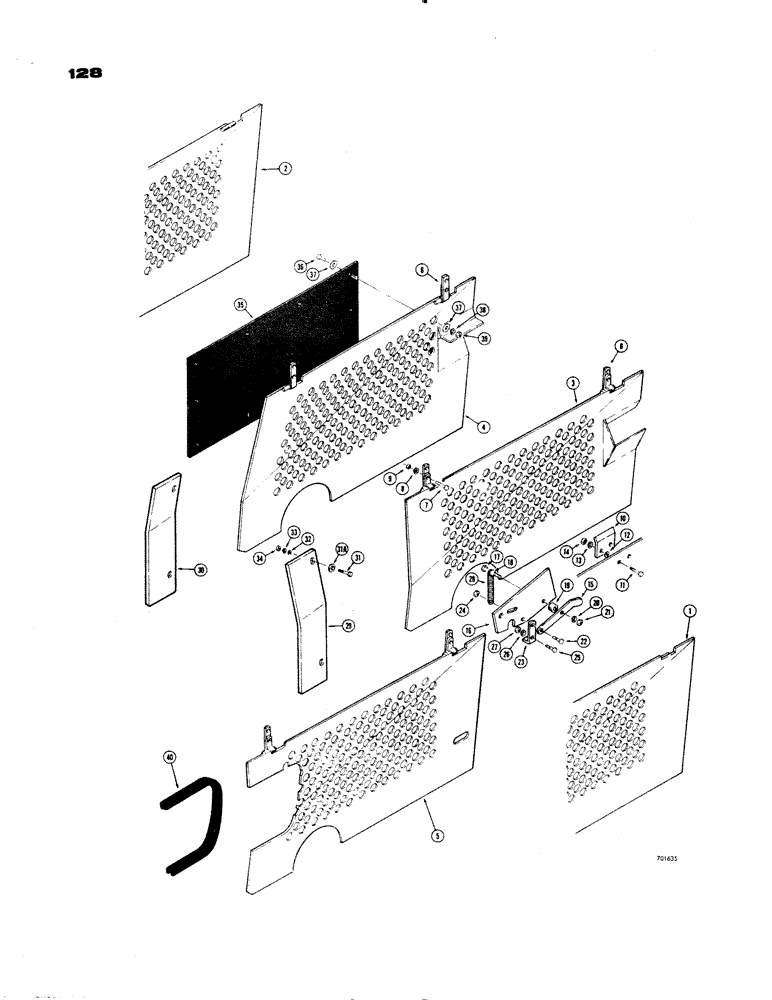

Запчасти Case 1150 (128) - SIDE SHIELDS AND BRUSH SCREENS, DOZER, DRAWBAR & FELLER BUNCHER (05) - UPPERSTRUCTURE CHASSIS

1

D36633

GUARD

SHIELD - side, R.H. (Drawbar Models)

1шт.

2

D36632

GUARD

SHIELD - side, L.H. (Drawbar Models)

1шт.

3

D49356

SHIELD

- side, R.H. (Dozer models) When stock is exhausted use R27985 shield)

1шт.

3

R27985

GUARD

SHIELD - side, R.H. (Dozer models)

1шт.

4

D49355

SHIELD

- side, L.H. (Dozer models) When stock is exhausted use R27984 shield)

1шт.

4

R27984

SHIELD

- side, L.H. (Dozer models)

1шт.

5

D50835

SHIELD - side, L.H. (Feller Buncher

1шт.

5

D50836

SHIELD - side, R.H. (Feller Buncher

1шт.

6

D43293

CLAMP

- shield

4шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

8

92-6

LOCK WASHER,3/8"

8шт.

9

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

10

D36503

RETAINER

CLIP - retainer

2шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

12

D36627

BUSHING

SPACER

2шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

15

D36500

LATCH

- side shield, outer

2шт.

16

D38535

COVER

- side shield, inner

2шт.

17

113-265

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

18

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex., jam (3/8" - 16 NC)

2шт.

19

D38524

SPACER

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

22

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

23

D36626

BRACKET

- spring mounting

2шт.

24

131-352

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC)

2шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

28

A30711

SPRING

- latch

2шт.

29

D48015

COVER

GUARD - brush, R.H. (Dozer Models)

1шт.

30

D48014

GUARD ASSY.

GUARD - brush, L.H. (Dozer Models)

1шт.

31

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

31a

D48016

SPACER

- guard

2шт.

32

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

33

92-6

LOCK WASHER,3/8"

4шт.

34

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

35

D49154

SCREEN - brush, R.H. (Dozer and Drawbar Models)

1шт.

35

D49155

SCREEN - brush, L.H. (Dozer and Drawbar Models)

1шт.

35

D51237

SCREEN - brush, L.H. (Feller Buncher Models)

1шт.

35

D51238

SCREEN - brush, R.H. (Feller Buncher Models)

1шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

20шт.

37

195-28

WASHER,3/8"

- plain () 3/8"

40шт.

38

92-6

LOCK WASHER,3/8"

20шт.

39

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

20шт.

40

D33534

MOLDING

TRIM - edge

2шт.
