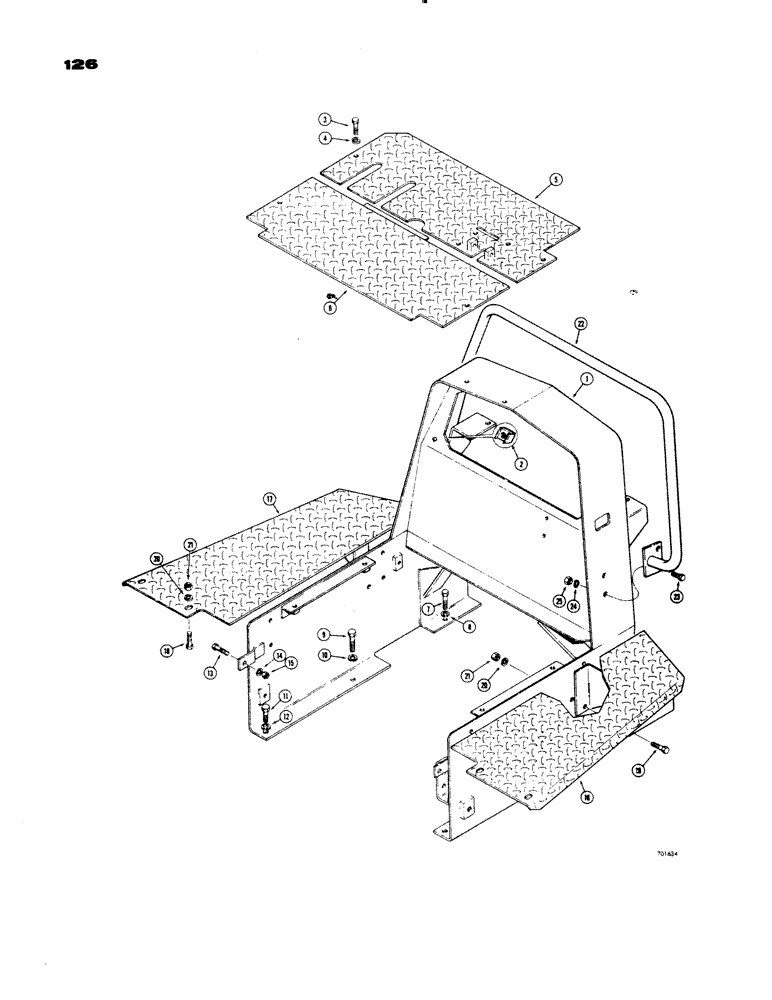

Запчасти Case 1150 (126) - COWL, FLOOR AND RELATED PARTS (05) - UPPERSTRUCTURE CHASSIS

1

D47831

COWL

1шт.

2

131-139

SPRING NUT,Ret, 5/16"-24

Tinnerman Ret, 5/16"-24

4шт.

3

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

D35836

FLOOR PLATE - front, Start Serial: 7300854

1шт.

5

R24024

FLOOR PLATE - front, Serial Range: -7300854

1шт.

6

D36403

FLOOR PLATE - rear

1шт.

7

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(Cowl mounting) front holes Hex, 1/2"-13 x 2", G5

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

12

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

13

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

14

92-8

LOCK WASHER,1/2"

2шт.

15

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

16

D35733

PLATE - step, R.H. (Drawbar and Dozer models only)

1шт.

17

D35732

PLATE - step, L.H. (Drawbar and Dozer models only)

1шт.

18

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

19

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

20

92-8

LOCK WASHER,1/2"

6шт.

21

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

6шт.

22

D52184

RAIL - hand

1шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

24

92-6

LOCK WASHER,3/8"

4шт.

25

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.
