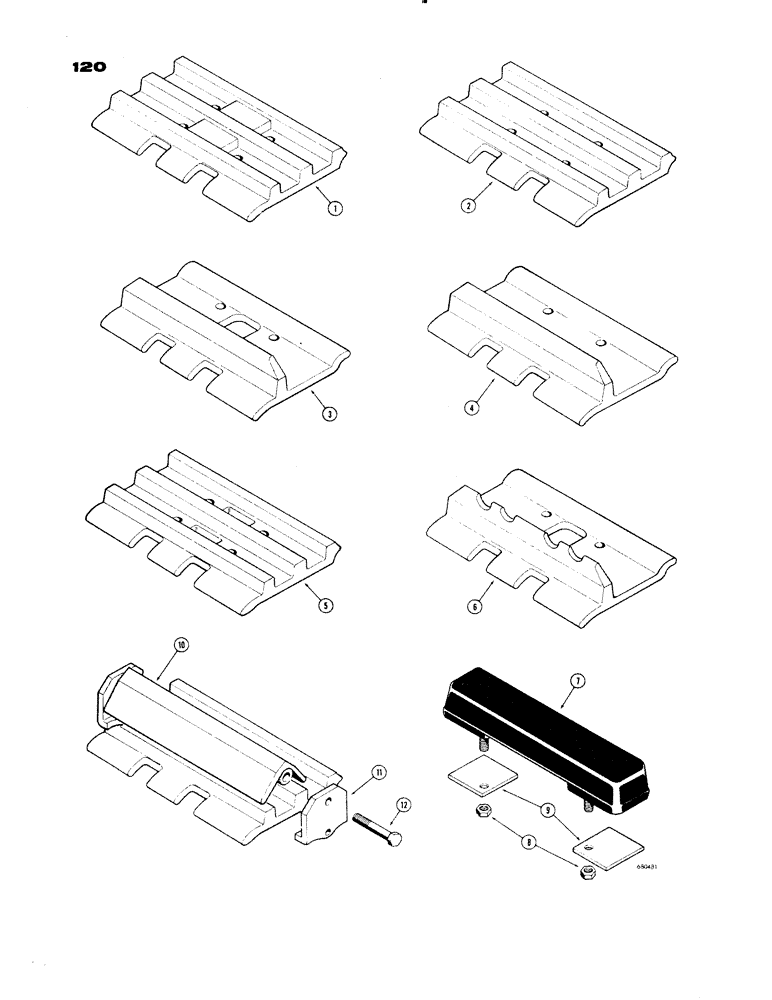

Запчасти Case 1150 (120) - TRACK SHOES, SEMI-GROUSER, MINING SPECIAL (04) - UNDERCARRIAGE

1

D41578

TRACK SHOE

SHOE - track, 10" (All models)

80шт.

2

D41123

PLATE

SHOE - track, 12" (All models), semi grouser, closed

80шт.

2

D41124

NO LONGER SERVICED

SHOE - track, 13" (All models), semi grouser, closed

80шт.

2

D41125

PLATE

SHOE - track, 15" (All models), semi grouser, closed

80шт.

2

D41126

TRACK SHOE

SHOE - track, 16" (All models except Loader or Backhoe), semi grouser, closed

80шт.

3

D41146

SHOE - track, 12" (All models except Loader), grouser, open center

80шт.

3

D41140

SHOE - track, 13" (All models except Loader), grouser, open center

80шт.

3

D41141

SHOE - track, 14" (All models except Loader), grouser, open center

80шт.

3

D41142

SHOE - track, 15" (All models except Loader), grouser, open center

80шт.

3

D41143

PLATE

SHOE - track, 16" (All models except Loader or Backhoe), grouser, open center

80шт.

3

D41144

TRACK SHOE

SHOE - track, 17" (All models except Loader or Backhoe), grouser, open center

80шт.

3

41145

ROD, CONNECTING

SHOE - track, 18" (Drawbar models only), grouser, open center

80шт.

4

D41131

SHOE - track, 12" (All models except Loader), grouser, closed

80шт.

4

D41132

TRACK SHOE

SHOE - track, 13" (All models except Loader), grouser, closed

80шт.

4

D41133

TRACK SHOE

SHOE - track, 14" (All models except Loader), grouser, closed

80шт.

4

D41134

PLATE

SHOE - track, 15" (All models except Loader), grouser, closed

80шт.

4

D41135

TRACK SHOE

SHOE - track, 16" (All models except Loader or Backhoe), grouser, closed

80шт.

4

D41136

TRACK SHOE

SHOE - track, 17" (All models except Loader or Backhoe), grouser, closed

80шт.

4

D41137

TRACK SHOE

SHOE - track, 18" (Drawbar and Wide Track Dozers), grouser, closed

80шт.

4

D41323

PLATE

SHOE - track, 20" (Drawbar models only), grouser, closed

80шт.

4

D41138

PAD

SHOE - track, 24" (Wide track dozer models only), grouser, closed

80шт.

5

D41116

TRACK SHOE

SHOE - track, 12" (All models), semi grouser, open center

80шт.

5

D41117

PLATE

SHOE - track, 13" (All models), semi grouser, open center

80шт.

5

D41118

PLATE

SHOE - track, 15" (All models), semi grouser, open center

80шт.

5

D41121

TRACK SHOE

SHOE - track, 16" (All models except Loader or Backhoe), semi grouser, open center

80шт.

6

D41148

X

SHOE - track, 14" (All models except Loader), grouser, ice

80шт.

6

D41149

SHOE - track, 15" (All models except Loader), grouser, ice

80шт.

6

D41150

TRACK SHOE

SHOE - track, 16" (All models except Loader or Backhoe), grouser, ice

80шт.

6

D41151

SHOE - track, 17" (Drawbar models only), grouser, ice

80шт.

D13878

RUBBER TRACK SHOE KIT - Machinery itemk, Includes: Ref. 7 - 9

1шт.

7

70635

SHOE

- track, rubber

80шт.

8

131-168

LOCK NUT,1/2"-20, GA

NUT - hex., lock (1/2" - 20 NF), rubber track shoe

160шт.

9

R21166

SPACER

- shoe, rubber track

160шт.

R21513

GROUSER INSTALLATION - clamp-on, 13"k, Includes: Ref. 10 - 12

10шт.

10

R21514

GROUSER - clamp-on, 13"

1шт.

11

R21515

PLATE - end, grouser, clamp on

1шт.

12

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Grouser, clamp on Hex, 5/8"-11 x 3", G5

1шт.

R17483

GROUSER INSTALLATION - clamp on, 15"k, Includes: Ref. 10 - 12

10шт.

10

NSS

NOT SOLD SEPARAT

GROUSER - clamp on, 15"

1шт.

11

72306

SLEEVE

PLATE - end, grouser, clamp on

1шт.

12

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

HHCS - 5/8" - 11 NC x 2-3/4", grouser, clamp on

1шт.
