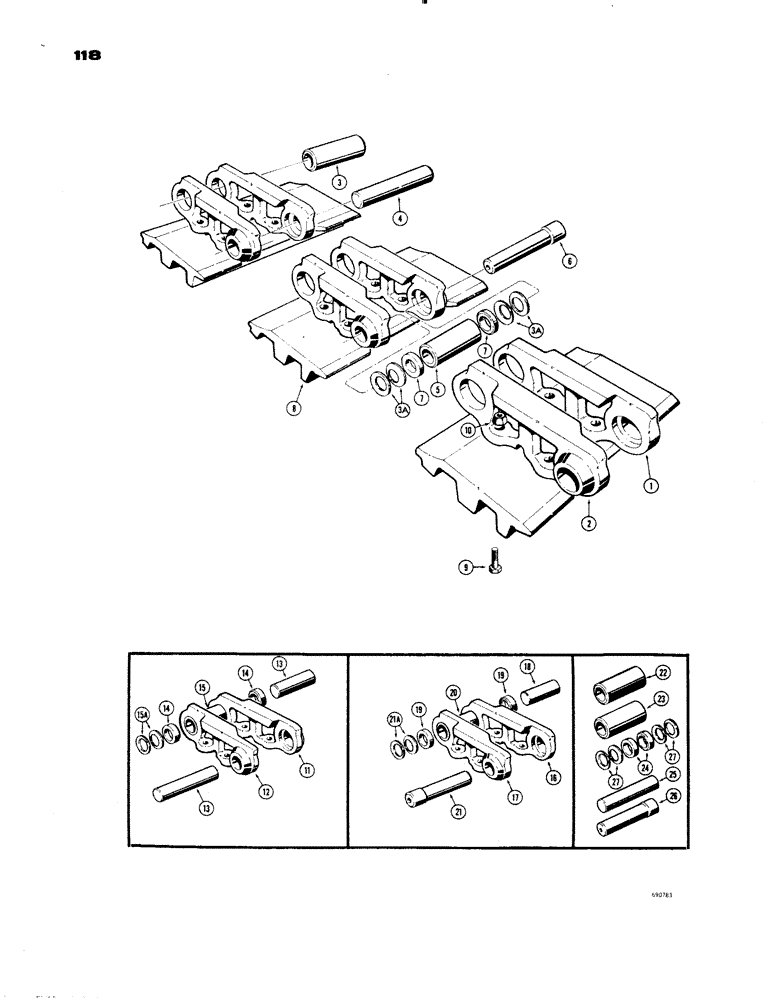

Запчасти Case 1150 (118) - TRACK CHAIN (04) - UNDERCARRIAGE

D45079

CHAIN (AG)

CHAIN ASSEMBLY - 20 unit, sealed track, Includes: Ref. 1 - 7

4шт.

1

D31710

LINK

- track, R.H. (Order D45348 track chain unit kit for service)

20шт.

2

D31709

LINK

- track, L.H. (Order D45348 track chain unit kit for service)

20шт.

3

D45075

SLEEVE,35.23mm ID x 50.77mm OD x 115.16mm L

- track, long

19шт.

3a

D45076

BELLEVILLE SPRING

SEAL - washer

80шт.

4

R14893

PIN,34.9mm OD x 176.22mm L

- track, standard

19шт.

D32164

PIN

- track service option (.003" oversize)

19шт.

5

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short

1шт.

6

D36511

PIN

- track, master

1шт.

7

D45272

BUSHING

- spacer

2шт.

8

REF

INSTRUCTION

PLATE - track (See figure 120 for options)

80шт.

9

D48004

FLANGE BOLT

BOLT - special

320шт.

10

R17415

LOCK NUT

- lock, special

320шт.

D45348

KIT

- track chain unit, sealed track, Includes: Ref. 11 - 15A

76шт.

11

D31710

LINK

- track, R.H. (Order D45348 track chain unit kit for service)

1шт.

12

D31709

LINK

- track, L.H. (Order D45348 track chain unit kit for service)

1шт.

13

R14893

PIN,34.9mm OD x 176.22mm L

- track, standard, chain unit kit

2шт.

14

D45272

BUSHING

- spacer, track chain unit kit

2шт.

15

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short, track chain unit kit

1шт.

15a

D45076

BELLEVILLE SPRING

SEAL - washer, track chain unit kit

8шт.

D45350

LINK

KIT - master chain unit, sealed trackk, Includes: Ref. 16 - 21A

4шт.

16

D31710

LINK

- track, R.H. (Order D45348 track chain unit kit for service), master

1шт.

17

D31709

LINK

- track, L.H. (Order D45348 track chain unit kit for service), master

1шт.

18

R14893

PIN,34.9mm OD x 176.22mm L

- track, standard, master chain unit

1шт.

19

D45272

BUSHING

- spacer, master chain unit

2шт.

20

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short, chain unit

1шт.

21

D36511

PIN

- master, chain unit

1шт.

21a

D45076

BELLEVILLE SPRING

SEAL - washer, master chain unit

8шт.

D45349

KIT

- pin and bushing, sealed trackk, Includes: Ref. 22 - 27

1шт.

22

D45075

SLEEVE,35.23mm ID x 50.77mm OD x 115.16mm L

- track, long, pin kit

76шт.

23

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short, pin kit

4шт.

24

D45272

BUSHING

- spacer, pin kit

8шт.

25

D32164

PIN

- track, service option (.003" oversize), bushing kit

76шт.

26

D43541

PIN

- track, master (.003" oversize), bushing kit

4шт.

27

D45076

BELLEVILLE SPRING

SEAL - washer, pin and bushing kit

320шт.
