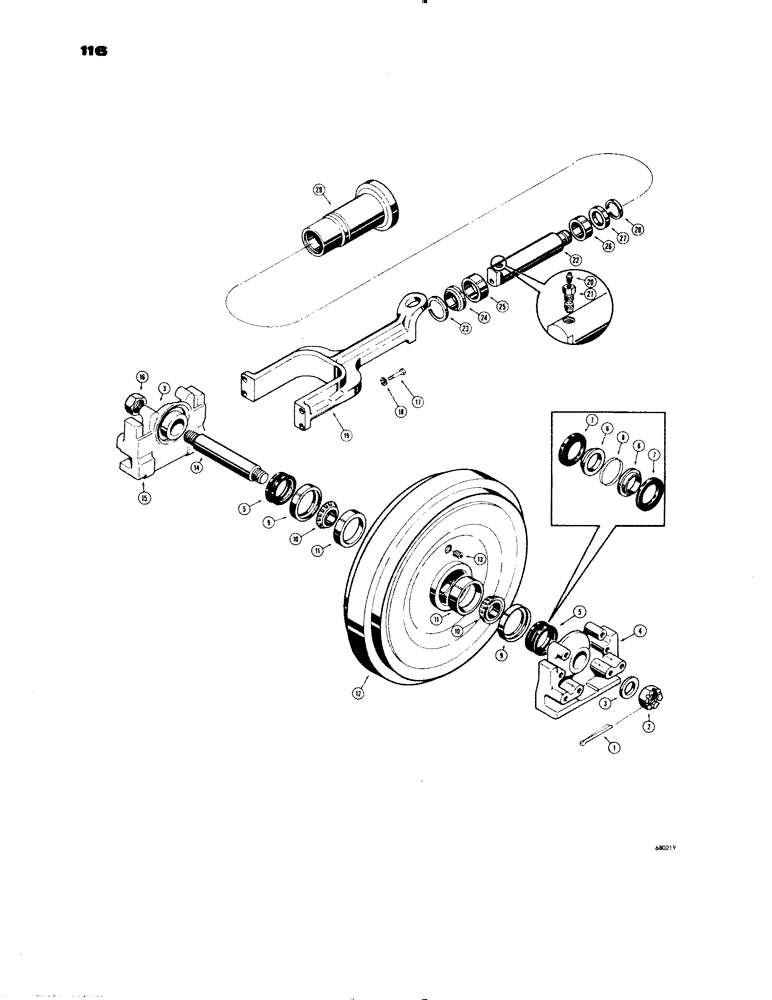

Запчасти Case 1150 (116) - IDLER WHEEL AND TRACK ADJUSTER (04) - UNDERCARRIAGE

D43267

FRONT IDLER

IDLER WHEEL AND BRACKET - L.H., Use R29569 idler for service, Includes: Ref. 1 - 16

1шт.

D43268

X

IDLER WHEEL AND BRACKET - R.H., Use R29569 idler for service (Not shown), Includes: Ref. 1 - 16

1шт.

R53647

WHEEL

IDLER WHEEL AND BRACKET - R.H. and L.H.(Replaced R29569), Includes: Ref. 1 - 16

3шт.

1

132-156

PIN

- cotter, 1/4" dia. x 2-1/4"

1шт.

2

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT - hex., slotted (1-1/2" - 12 NF)

1шт.

3

D36065

WASHER

- special

2шт.

4

D36066

X

BRACKET - L.H., D43267 and D43268 idler wheel

1шт.

4

R27941

BRACKET

- R29569 idler

1шт.

5

D35267

SEAL

- face, Includes: Ref. 6 - 8

2шт.

6

NSS

NOT SOLD SEPARAT

BODY - seal, split

1шт.

D36826

SEAL KIT

KIT - repair, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - plastic

2шт.

9

D36069

RING

- seal retaining

2шт.

10

40413

BEARING, CONE,2" ID x 1.2188" OD

BEARING - cone

2шт.

11

A27732

BEARING CUP

BEARING - cup

2шт.

12

D42886

FRONT IDLER

WHEEL - idler

1шт.

13

221-841

PLUG

- pipe, hex. socket head (1/4" NPT) If used

1шт.

14

D36068

SHAFT

- idler

1шт.

15

D36067

BRACKET

- R.H., D43267 and D43268 idler wheel

1шт.

15

R27941

BRACKET

- R29569 idler

1шт.

16

25-1524

JAM NUT,Jam, 1 1/2"-12, G5

- hex., lock (1-1/2" - 12 NF)

1шт.

17

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

8шт.

18

92-8

LOCK WASHER,1/2"

8шт.

19

D36360

YOKE

- front idler wheel

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

21

D35287

CHECK VALVE,5/8" - 18

CHECK BALL ASSEMBLY - track adjuster

2шт.

D36642

ADJUSTER

TRACK ADJUSTER - hydraulic

2шт.

22

D36361

PISTON

- track adjuster

1шт.

23

D32043

RING

- snap, front (Used with D37798 seal)

1шт.

24

D37798

WIPER

SEAL - wiper (When stock is exhausted, use D95149 seal)

1шт.

24

D95149

PACKING RING,60.24mm ID x 73.05mm OD x 7.92mm Thk

SEAL - wiper

1шт.

Tubes without snap ring groove must use D95149 seal.

1шт.

25

D30374

RING,60.43mm ID x 73.15mm OD x 25.4mm L

- rider

1шт.

26

D30368

BEARING

- backup

1шт.

27

D36971

RING

PACKING - "U" cup

1шт.

28

D23191

SNAP RING,#200, Ext

RING - snap, , rear #200, Ext

1шт.

29

D36357

TUBE

- track adjuster

1шт.

Tubes without snap ring groove must use D95149 seal.

1шт.
