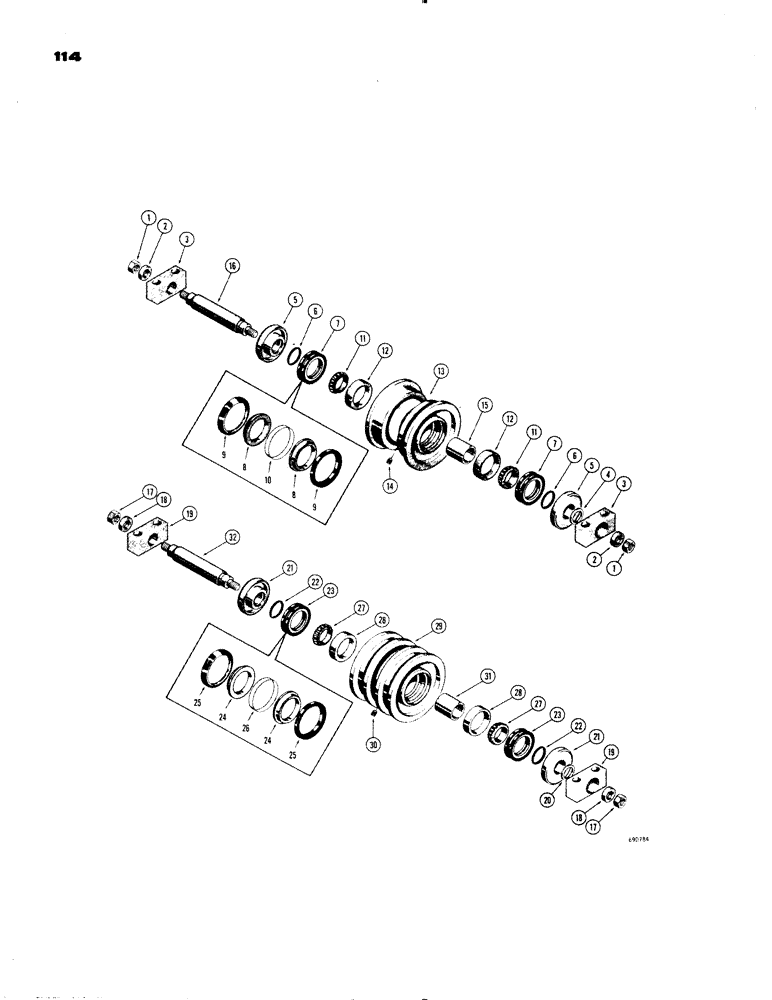

Запчасти Case 1150 (114) - TRACK ROLLERS, TRACK ROLLER (SINGLE FLANGE) (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
D49035
ROLLER
- track, single flange (Replaced R24102), Includes: Ref. 1 - 16
8шт.
1
280375
NUT,3/4"-10, GC
NUT - hex., lock (3/4" - 10 NC)
2шт.
2
D44182
WASHER
- special
2шт.
3
D36409
BLOCK
- roller
2шт.
4
D31329
SHIM,.005" Thk
1шт.
5
D45502
BUSHING
- thrust
2шт.
6
D27878
O-RING,1.609" ID x 1.887" OD
SEAL - "O" ring
2шт.
7
D35267
SEAL
- face, Includes: Ref. 8 - 10
2шт.
8
NSS
NOT SOLD SEPARAT
BODY - seal, split
1шт.
D36826
SEAL KIT
KIT - repair, Includes: Ref. 9 and 10
1шт.
9
NSS
NOT SOLD SEPARAT
SEAL - rubber
2шт.
10
NSS
NOT SOLD SEPARAT
RETAINER - plastic
2шт.
11
D44321
ROLLER BEARING,1.625" ID x 1.1875"
CONE - bearing
2шт.
12
D44322
BEARING CUP,3.375" OD x 0.9375"
CUP - bearing
2шт.
13
R24100
ROLLER
HUB - roller, single flange
1шт.
14
221-841
PLUG
- pipe, hex. socket head (1/4" NPT)
1шт.
15
D44183
SPACER
- bearing
1шт.
16
D44184
SHAFT
- roller
1шт.
R24103
ROLLER
- track, double flange, Includes: Ref. 17 - 32
4шт.
17
280375
NUT,3/4"-10, GC
NUT - hex., lock (3/4" - 10 NC), track roller (double flange)
2шт.
18
D44182
WASHER
- special, track roller (double flange)
2шт.
19
D36409
BLOCK
- roller, track roller (double flange)
2шт.
20
D31329
SHIM,.005" Thk
Track roller (Double flange) .005" Thk
1шт.
21
D45502
BUSHING
- thrust, track roller (double flange)
2шт.
22
D27878
O-RING,1.609" ID x 1.887" OD
SEAL - "O" ring, track roller (double flange)
2шт.
23
D35267
SEAL
- face, Includes: Ref. 24 - 26 track roller (double flange)
2шт.
24
NSS
NOT SOLD SEPARAT
BODY - seal, split, track roller (double flange)
1шт.
D36826
SEAL KIT
KIT - repair, Includes: Ref. 25 and 26 track roller (double flange)
1шт.
25
NSS
NOT SOLD SEPARAT
SEAL - rubber, track roller (double flange)
2шт.
26
NSS
NOT SOLD SEPARAT
RETAINER - plastic, track roller (double flange)
2шт.
27
D44321
ROLLER BEARING,1.625" ID x 1.1875"
CONE - bearing, track roller (double flange)
2шт.
28
D44322
BEARING CUP,3.375" OD x 0.9375"
CUP - bearing, track roller (double flange)
2шт.
29
R24101
HUB
- roller, double flange, track roller (double flange)
1шт.
30
221-841
PLUG
- pipe, hex. socket head (1/4" NPT), track roller (double flange)
1шт.
31
D44183
SPACER
- bearing, track roller (double flange)
1шт.
32
D44184
SHAFT
- roller, track roller (double flange)
1шт.
Выбрано товаров: 36
