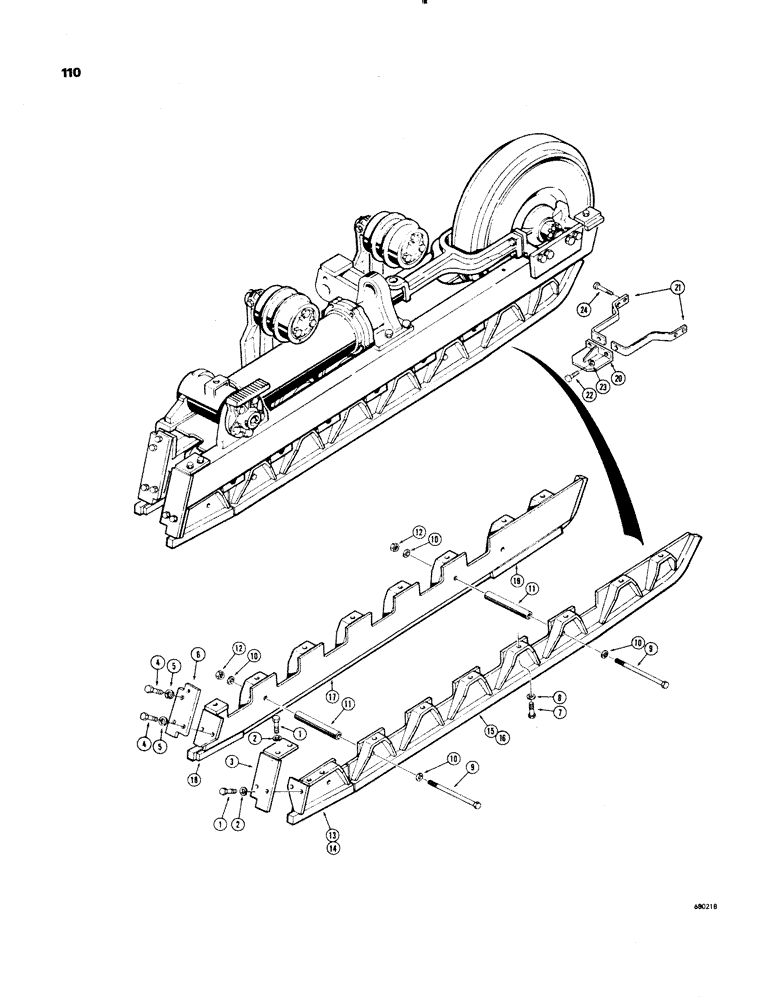

Запчасти Case 1150 (110) - TRACK GUIDES (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
1
13-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd
8шт.
3
D35714
GUARD
- rock, outer rear (R.H.)
1шт.
3
D35713
GUARD
- rock, outer rear (L.H.) Not illustrated
1шт.
4
13-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd
8шт.
6
D38476
COVER
GUARD - rock, inner rear
2шт.
7
26-1224
BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8
34шт.
8
D34666
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
- special
34шт.
9
113-784
BOLT,Hex, 3/4" - 10 x 10", Gr 5
HHCS - 3/4" - 10 NC x 10" (Replaced 15-12160)
4шт.
10
D34666
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
- special
8шт.
11
D35698
SPACER
SPECER - track guides
4шт.
12
230-41112
LOCK NUT,3/4"-10, GA
NUT - hex., lock (3/4" - 10 NC)
4шт.
13
D40105
GUARD
TRACK GUIDE - rear, R.H. outer, Includes: Ref. 14
1шт.
14
D40109
STRIP
WEAR STRIP - guide (Not illustrated)
1шт.
13
D40104
GUARD
TRACK GUIDE - rear, L.H. outer (Not illustrated), Includes: Ref. 14
1шт.
14
D40109
STRIP
WEAR STRIP - guide (Not illustrated)
1шт.
15
D38439
GUARD
TRACK GUIDE - front, R.H. outer, Includes: Ref. 16
1шт.
16
D38440
STRIP
WEAR STRIP - guide (Not illustrated)
1шт.
15
D38438
GUARD
TRACK GUIDE - front, L.H. outer (Not illustrated)
1шт.
16
D38440
STRIP
WEAR STRIP - guide (Not illustrated)
1шт.
17
D40111
GUARD
TRACK GUIDE - R.H. inner, Includes: Ref. 18 and 19
1шт.
18
D40109
STRIP
WEAR STRIP - guide, rear
1шт.
19
D38440
STRIP
WEAR STRIP - guide, front
1шт.
17
D40110
GUARD
TRACK GUIDE - L.H. inner (Not illustrated), Includes: Ref. 18 and 19
1шт.
18
D40109
STRIP
WEAR STRIP - guide, rear (Not illustrated)
1шт.
19
D38440
STRIP
WEAR STRIP - guide, front (Not illustrated)
1шт.
20
D39039
GUARD
- rock
2шт.
21
D38129
STRAP - rock guard
4шт.
22
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
4шт.
23
92-6
LOCK WASHER,3/8"
4шт.
24
13-1036
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
HHCS - 5/8" - 11 NC x 2-1/2"
8шт.
Выбрано товаров: 32
