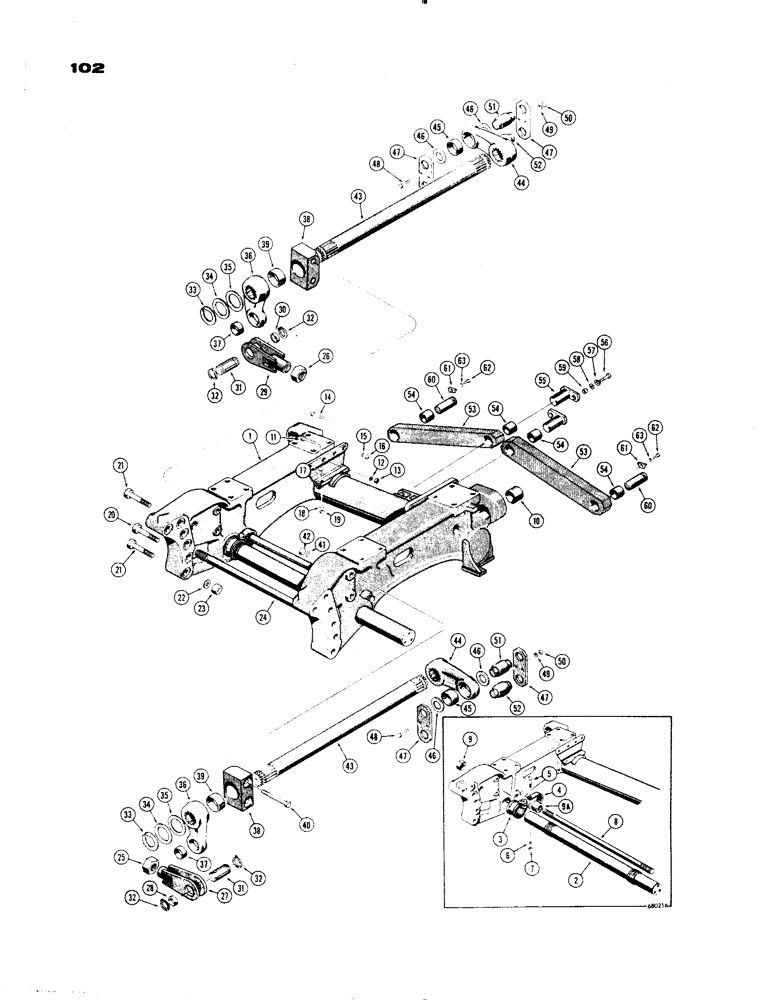

Запчасти Case 1150 (102) - SUSPENSION SYSTEM (04) - UNDERCARRIAGE

1

D36480

FRAME

- main, 60" gauge, Includes: Ref. 2 - 10

1шт.

2

D36986

SHAFT

- pivot

1шт.

3

R14205

CLAMP

- shaft

2шт.

4

R20158

CLAMP

"U" STRAP - clamp

2шт.

5

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

6

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

2шт.

7

25-1012

NUT,3/4"-10, G5

2шт.

8

R13422

ROD

- compression

1шт.

9

25-1124

NUT,1 1/2"-12, G5

- hex. (1-1/2" - 12 NF)

2шт.

9a

D40234

NUT

- special (1-1/2" - 12 NF)

2шт.

10

70091

BUSHING

- frame

2шт.

11

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

12

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

2шт.

13

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex, lock (3/4" - 10 NC)

2шт.

14

D23616

BOLT (SPREADER)

HHCS - 7/8" - 9 NC x 2-7/8" (Special)

6шт.

15

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- special

6шт.

16

230-41114

LOCK NUT,7/8"-9, GA

NUT - hex, lock (7/8" - 9 NC)

6шт.

17

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

18

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

2шт.

19

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex., lock (3/4" - 10 NC)

2шт.

20

13-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

8шт.

21

D36485

BOLT

HHCS - 1" - 8 NC x 6-3/4" (Special)

4шт.

22

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

12шт.

23

230-41116

NUT,1"-8, GA

NUT - hex. lock (1" - 8 NC)

12шт.

24

R21046

ROD

- equalizer

1шт.

25

25-1120

NUT,1 1/4"-12, G5

- hex. (1-1/4" - 12 NF) R.H.

1шт.

26

129-332

SPECIAL NUT,1 1/4"-12, G5, LH

1шт.

27

D42949

YOKE

- equalizer, R.H., Includes: Ref. 28

1шт.

28

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

- equalizer yoke

2шт.

29

D42948

YOKE

- equalizer, L.H., Includes: Ref. 30

1шт.

30

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

- equalizer, yoke

2шт.

31

D42944

PIN

- yoke

2шт.

32

D25279

SNAP RING,M35, Int

RING - retaining

4шт.

33

R18674

RING

- lever retaining

4шт.

34

R18559

SHIM,.062" Thk

Lever .062" Thk

1шт.

35

74298

WASHER

SPACER - lever

1шт.

36

D34029

LEVER

- equalizer, rear, Includes: Ref. 37

2шт.

37

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

1шт.

38

D43615

BRACKET

- torsion bar, Includes: Ref. 39

2шт.

39

70091

BUSHING

- bracket

1шт.

40

13-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

4шт.

41

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

4шт.

42

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex., lock (3/4" - 10 NC)

4шт.

43

D42882

SHAFT

BAR - torsion

2шт.

44

D35846

LEVER

- equalizer, front, Includes: Ref. 45

2шт.

45

D35850

BUSHING

- lever

1шт.

46

D35849

WASHER

- equalizer link

4шт.

47

D35851

LINK

- front equalizer lever

4шт.

48

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

49

92-6

LOCK WASHER,3/8"

4шт.

50

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

51

D35847

PIN

- link, upper

2шт.

52

D35848

PIN

- link, lower

2шт.

53

R18143

LEVER

- guide, Includes: Ref. 54

2шт.

54

D36473

BUSHING,37.64mm ID x 50.65mm OD x 34.92mm L

- lever

2шт.

55

D40242

PIN

- lever retaining, at main frame

2шт.

56

46945

SCREW

BOLT - special, drilled head

2шт.

56a

R13538

ELECTRICAL WIRE

WIRE - lock, 8-3/8" long (Not illustrated)

1шт.

57

92-6

LOCK WASHER,3/8"

2шт.

58

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

59

D38524

SPACER

- lever retaining pin

2шт.

60

R18107

PIN

- lever retaining, at track frame

2шт.

61

D30391

PLATE

- pin retaining

2шт.

62

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

63

92-8

LOCK WASHER,1/2"

2шт.
