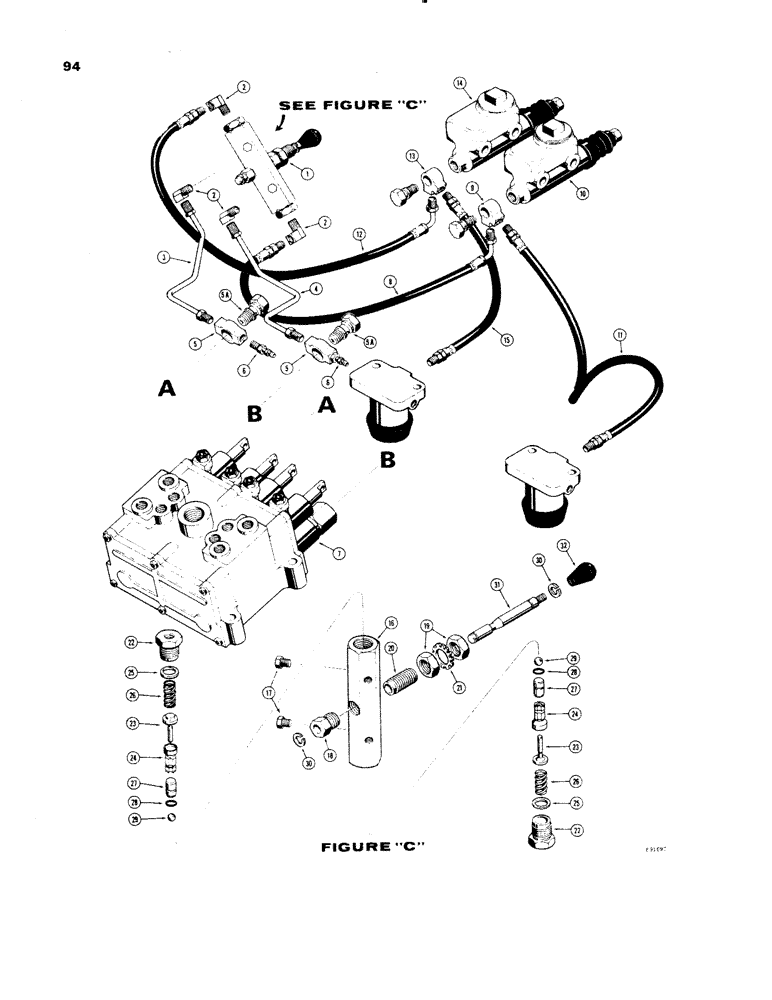

Запчасти Case 1150 (094) - DECLUTCH LOCKOUT (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
a
D49105
VALVE
- lock out, clutch (Parts list below)
1шт.
2
222-1021
ELBOW,90 Degree, 3/8"-24 Inv Fl x 1/8" NPT
- male, 90deg.
4шт.
3
D49108
TUBE
- brake, L.H.
1шт.
4
D49106
TUBE
- brake, R.H.
1шт.
5
D49114
FITTING
- special
2шт.
5a
A12864
BOLT
- special
2шт.
6
D49104
PLUG
- bleeder
2шт.
7
REF
INSTRUCTION
VALVE - transmission (Parts list page 77)
1шт.
8
D45396
HOSE,3.17mm ID x 419.1mm L
- valve to R.H. master cylinder (16-1/2" long)
1шт.
9
51200243
FITTING
TEE - special
1шт.
10
REF
INSTRUCTION
CYLINDER - master, R.H. brake (Parts list figure 90)
1шт.
11
D49111
HOSE
- master cylinder to slave cylinder, R.H. (25-3/16" long)
1шт.
12
D39836
HOSE,3.17mm ID x 609.6mm L
- valve to L.H. master cylinder (24" long)
1шт.
13
51200243
FITTING
TEE - special
1шт.
14
REF
INSTRUCTION
CYLINDER - master, L.H. brake (Parts list figure 90)
1шт.
15
D49110
HOSE
- master cylinder to slave cylinders (9-1/2" long)
1шт.
D49105
VALVE
- lock out, declutch, Includes: Ref. 16 - 20
1шт.
16
NSS
NOT SOLD SEPARAT
BODY - valve
1шт.
17
221-1849
PLUG
- pipe, sq. socket head
2шт.
18
D50018
PLUG
- push rod guide
1шт.
19
129-167
JAM NUT,Jam, 5/8"-18, G5
- hex. (5/8" 11 NC) Zinc plated
2шт.
20
D50017
ADAPTER
- special, push rod
1шт.
21
193-14
LOCK WASHER,Ext Tooth, 5/8"
WASHER, LOCK, Ext Tooth, 5/8", Includes: Ref. 22 - 32
1шт.
22
A16672
PLUG
- special, end
2шт.
23
D46267
STEM
- valve
2шт.
R29966
KIT
- repair, valve, Includes: Ref. 24 - 32
1шт.
24
NSS
NOT SOLD SEPARAT
VALVE
2шт.
25
D46277
GASKET
- end plug
2шт.
26
A16674
SPRING
- valve
2шт.
27
218-442
HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF
PISTON ASSEMBLY - valve, Includes: Ref. 28
2шт.
28
A16679
O-RING
SEAL - "O" ring
1шт.
29
211-11
BALL,3/8" Dia
- valve, . 3/8" Dia
2шт.
30
D50016
RING, SNAP
RING - retaining, Includes: Ref. 31 and 32
2шт.
31
D50013
PUSH ROD
ROD ASSEMBLY - push
1шт.
32
D50015
KNOB
- push rod
1шт.
Выбрано товаров: 35
