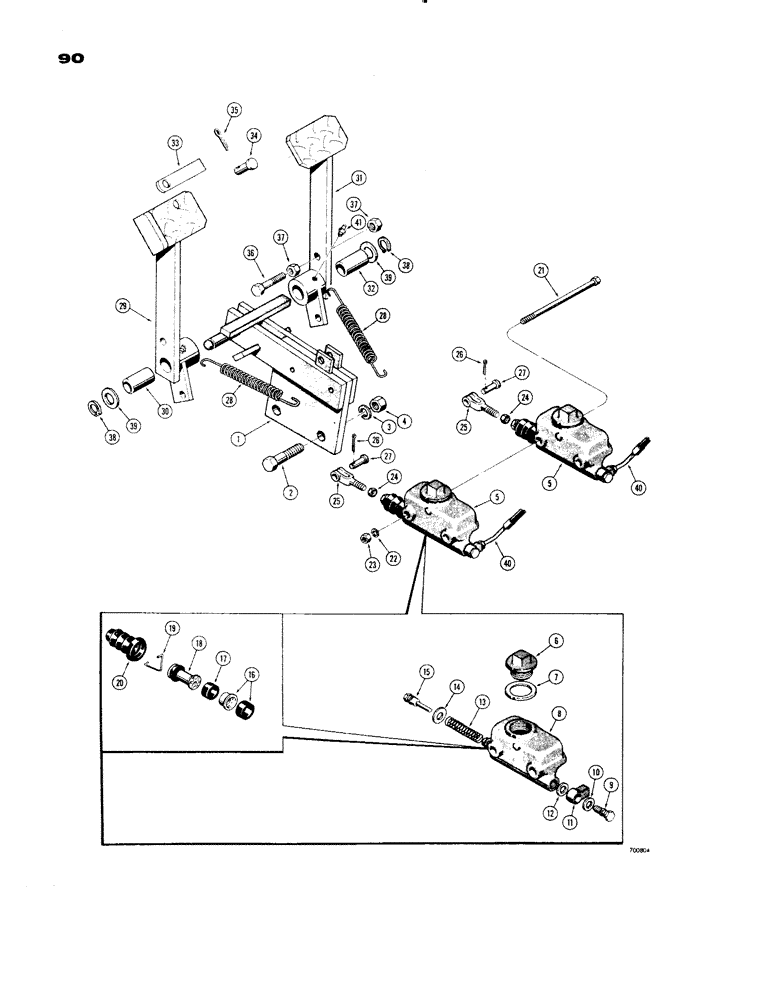

Запчасти Case 1150 (090) - BRAKE PEDALS (04) - UNDERCARRIAGE

1

D34918

SUPPORT

- brake mounting

1шт.

2

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

25-1010

NUT,5/8"-11, G5

2шт.

5

D38621

CYLINDER

- master, brake, Includes: Ref. 6 - 20

2шт.

6

D39212

PLUG

CAP - filler

1шт.

7

A19755

GASKET

- cap

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - master cylinder

1шт.

9

A12864

BOLT

- tube fitting

1шт.

10

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- inlet connection

1шт.

11

A18531

FITTING

- brake, Serial Range: cylinder-hose

1шт.

12

NLS

NO LONGER SERVICED

- inlet connection

1шт.

13

D39209

SPRING

- plunger return

1шт.

14

D39210

PLATE ASSY.

PLATE - stop

1шт.

15

D39211

ROD

- push

1шт.

D39186

KIT

- rebuild, master cylinder, Includes: Ref. 16 - 20

1шт.

16

NSS

NOT SOLD SEPARAT

VALVE AND SEAT - cylinder

1шт.

17

NSS

NOT SOLD SEPARAT

CUP - cylinder

1шт.

18

NSS

NOT SOLD SEPARAT

PISTON - cylinder

1шт.

19

NSS

NOT SOLD SEPARAT

WIRE - lock

1шт.

20

D39213

BOOT

- cylinder

1шт.

21

13-6104

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

24

25-157

JAM NUT,Jam, 7/16"-20, G5

- hex., lock (7/16" - 20 NF)

2шт.

25

D38620

YOKE

- adjustable

2шт.

26

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

2шт.

27

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - yoke

2шт.

28

11469

SPRING

- pedal return

2шт.

29

D42838

PEDAL

BRAKE - pedal, L.H. (Service with D48604 pedal and 219-1 fitting), Includes: Ref. 30

1шт.

30

D40392

BUSHING

- D42838 pedals (1-3/4" long)

1шт.

29

D48604

PEDAL ASSY.

BRAKE - pedal, L.H.

1шт.

30

D48603

BUSHING

- D48604 pedal, 23/32" long

2шт.

31

D42837

PEDAL

BRAKE - pedal, R.H. (Service with D48605 pedal and 219-1 fitting), Includes: Ref. 32

1шт.

32

D40392

BUSHING

- D42837 pedal (1-3/4" long)

1шт.

31

D48605

BRAKE ASSY.

BRAKE - pedal, R.H.

1шт.

32

D48603

BUSHING

- D48605 pedal (23/32" long)

2шт.

33

D42840

LOCK

- brake pedal

1шт.

34

141-3

CLEVIS PIN,5/16" x .940"

PIN - lock

1шт.

35

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

36

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

37

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

38

T25683

SNAP RING,#75, Ext

RING - snap, #75, Ext

2шт.

39

195-45

WASHER,3/4"

2шт.

40

A50326

HOSE

- master, Serial Range: cylinder-brake

2шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT) Brake pedals

2шт.
