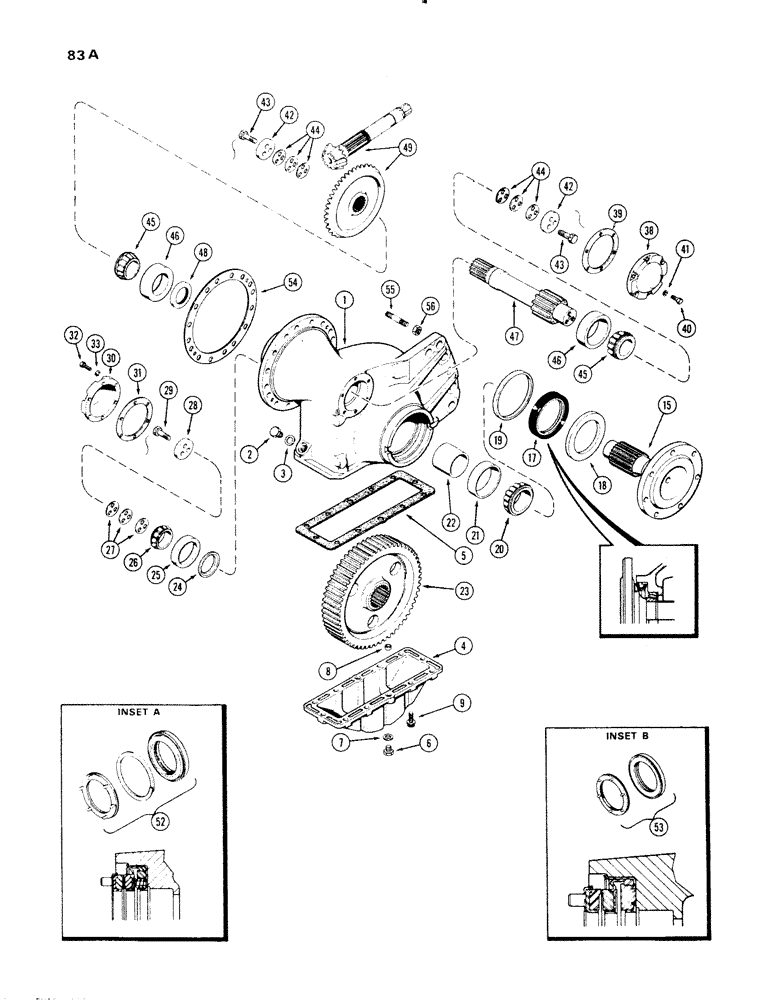

Запчасти Case 1150 (083A) - FINAL DRIVE, USED PRIOR TO TRANS. SER. NO. 2663630 (04) - UNDERCARRIAGE

A50312

X

DRIVE ASSY. - final, R. H. (w/gear & pinion), Includes: Ref. 1 - 49

1шт.

A50372

X

DRIVE ASSY. - final, R.H. (w/out gear & pinion), Includes: Ref. 1 - 49

1шт.

A50313

X

DRIVE ASSY. - final, L.H. (w/gear & pinion), Includes: Ref. 1 - 49

1шт.

A50373

HOUSING

DRIVE ASSY. - final, L.H. (w/out gear & pinion), Includes: Ref. 1 - 49

1шт.

1

A50316

NO LONGER SERVICED

HOUSING - final drive, right hand

1шт.

1

A50317

NO LONGER SERVICED

HOUSING - final drive, left hand

1шт.

2

R14777

PLUG

- filler, drive housing

1шт.

3

A58613

SEALING WASHER

GASKET - filler plug

1шт.

4

A50008

COVER

- lower, final drive gear

1шт.

5

A50009

GASKET

- lower drive gear cover

1шт.

6

A50014

PLUG

- drain, gear cover

1шт.

7

A58608

GASKET

- gear cover drain plug

1шт.

8

A50011

SLEEVE

- dowel, gear cover locating

2шт.

9

166-88

12 PT SCREW,Flg, 1/2" - 13 x 1 3/4", Gr 8

SCREW - cap, 1/2 x 1-3/4" N.C. 12 pt. Ferry hd.

2шт.

9

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

SCREW - cap, 1/2 x 1-1/2" N.C. 12 pt. Ferry hd.

10шт.

15

A50572

SHAFT

- output, final drive

1шт.

A50572 has a 25 tooth spline (see Ref. 15 on figure 83A) for comparison to i.d. which assembly you have if the tags are missing.

1шт.

A50555

SEAL

KIT - output shaft (See insets for old kits), Includes: Ref. 17 - 19

1шт.

17

A50552

SEAL

- face

1шт.

18

A50553

SEAL

SEAT - face seal

1шт.

19

A50554

SPACER

-, Serial Range: seal-housing

1шт.

20

A50325

CONE

- bearing, outer (3-1/4" I.D.)

1шт.

21

A50324

BEARING CUP

CUP - bearing cone, outer (5-1/4" O.D.)

1шт.

22

A50323

BUSHING

SPACER - outer, output shaft

1шт.

23

A50478

GEAR

- final drive

1шт.

24

A50279

BUSHING

SPACER - bearing, output shaft

1шт.

25

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - bearing, inner (4-7/16" O.D.)

1шт.

26

A7891

ROLLER BEARING

CONE - bearing, inner (2-1/2" I.D.)

1шт.

27

R21743

SHIM,.020" Thk

Bearing .020" Thk

1шт.

27

R21742

SHIM,.007" Thk

Bearing .007" Thk

1шт.

27

R21741

SHIM,.005" Thk

Bearing .005" Thk

1шт.

28

R19889

PLATE

- lock, output shaft bearing

1шт.

29

R19888

SCREW

BOLT - lock plate, 9/16 x 1-1/4" N.F., drilled hex. hd.

3шт.

30

A50454

CAP

- bearing, output shaft

1шт.

31

A50339

GASKET

- bearing cap

1шт.

32

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cap Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

33

92-6

LOCK WASHER,3/8"

6шт.

38

A50453

CAP

- bearing, bevel gear shaft

1шт.

39

A50340

GASKET

- bearing cap

1шт.

40

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cap Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

41

92-6

LOCK WASHER,3/8"

6шт.

42

R19889

PLATE

- lock, final drive shaft

2шт.

43

R19888

SCREW

BOLT - lock plate, 9/16 x 1-1/4" N.F. drilled hex. hd.

6шт.

44

R21743

SHIM,.020" Thk

Lock plate .020" Thk

1шт.

44

R21741

SHIM,.005" Thk

Lock plate .005" Thk

1шт.

44

R21742

SHIM,.007" Thk

Lock plate .007" Thk

1шт.

45

A50320

ROLLER BEARING,2.5" ID x 1.723"

CONE - bearing (2-1/2" I.D.)

2шт.

46

A50319

BEARING CUP

CUP - bearing (4-13/16" O.D.)

2шт.

47

A50318

SHAFT

- bevel gear, final drive

1шт.

48

A50422

OIL SEAL

- oil, bevel gear shaft (2-7/8 x 3-3/4 x 1/2"), Includes: Ref. 49

1шт.

49

A50459

SET

GEAR & PINION - trans. drive (matched set)

1шт.

52

A50545

KIT

SEAL KIT - see Inset A (Order A50555)

2шт.

53

A50244

SEAL

KIT - see Inset B (Order A50555)

2шт.

54

70821

SHIM

- drive housing to trans. housing (.010")

1шт.

54

70822

SHIM

- drive housing to trans, housing (.005")

1шт.

55

A50237

STUD

- mounting, drive housing (5/8" N.C. x 2-1/2")

32шт.

56

232-41110

NUT,5/8"-11, GC

NUT - lock, 5/8" N.C. hex.

32шт.
