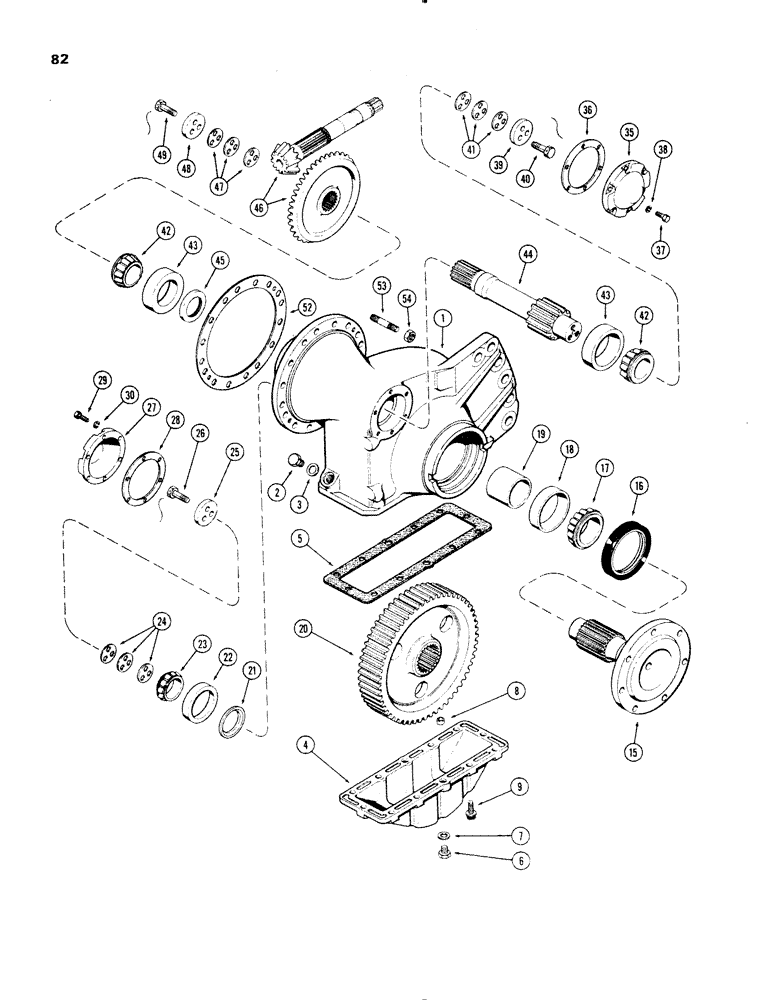

Запчасти Case 1150 (082) - FINAL DRIVE, 1ST USED TRANS. SER. NO. 2663630 (04) - UNDERCARRIAGE

A50526

HOUSING

DRIVE ASSY. - final, right hand, Includes: Ref. 1 - 49

1шт.

A50527

HOUSING

DRIVE ASSY. - final, left hand, Includes: Ref. 1 - 49

1шт.

1

A50524

HOUSING

- final drive, right hand

1шт.

1

A50525

HOUSING

- final drive, left hand

1шт.

2

R14777

PLUG

- oil level, drive housing

1шт.

3

A58613

SEALING WASHER

GASKET - oil level plug

1шт.

4

A50544

COVER ASSY

COVER - lower, final drive gear

1шт.

5

A50540

GASKET

- lower drive gear cover

1шт.

6

A14280

PLUG

- drain, gear cover

1шт.

7

A58608

GASKET

- gear cover drain plug

1шт.

8

A50011

SLEEVE

- dowel, gear cover locating

2шт.

9

166-88

12 PT SCREW,Flg, 1/2" - 13 x 1 3/4", Gr 8

SCREW - cap, 1/2 x 1-3/4" N.C. 12 pt. Ferry hd.

2шт.

9

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

SCREW - cap, 1/2 x 1-1/2" N.C. 12 pt. Ferry hd.

10шт.

15

A50530

SHAFT

- output, final drive

1шт.

A50530 has a 41 tooth spline (see Ref. 15 on figure 82) for comparison to i.d. which assembly you have if the tags are missing.

1шт.

16

A50547

SEAL

KIT - oil, output shaft

1шт.

17

A50532

ROLLER BEARING,89.97mm ID x 40.2mm W

CONE - bearing, outer (3-35/64" I.D.)

1шт.

18

A50529

BEARING CUP,147.03mm OD x 32.5mm W

CUP - bearing, outer (5-25/32" O.D.)

1шт.

19

A50533

BUSHING

SPACER - outer, output shaft (3-9/16 x 3-7/8 x 3-11/16")

1шт.

20

A50534

GEAR

- final drive

1шт.

21

A50535

BUSHING

SPACER - bearing, output shaft

1шт.

22

A50528

BEARING CUP

CUP - bearing, inner (4-17/32" O.D.)

1шт.

23

A50536

CONE

- bearing, inner (2-3/4" I.D.)

1шт.

24

R21743

SHIM,.020" Thk

Bearing .020" Thk

1шт.

24

R21742

SHIM,.007" Thk

Bearing .007" Thk

1шт.

24

R21741

SHIM,.005" Thk

Bearing .005" Thk

1шт.

25

A50537

PLATE

- lock, output shaft bearing

1шт.

26

R19888

SCREW

BOLT - lock plate, 9/16 x 1-1/4" N.F. drilled hex. hd.

3шт.

27

A50454

CAP

- bearing, output shaft

1шт.

28

A50339

GASKET

- bearing cap

1шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cap Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

30

92-6

LOCK WASHER,3/8"

6шт.

35

A50453

CAP

- bearing, bevel gear shaft

1шт.

36

A50340

GASKET

- bearing cap

1шт.

37

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cap Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

38

92-6

LOCK WASHER,3/8"

6шт.

39

R19889

PLATE

- lock, final drive shaft bearing

1шт.

40

R19888

SCREW

BOLT - lock plate, 9/16 x 1-1/4" N.F. hex., drilled hd.

3шт.

41

R21743

SHIM,.020" Thk

Lock plate .020" Thk

1шт.

41

R21741

SHIM,.005" Thk

Lock plate .005" Thk

1шт.

41

R21742

SHIM,.007" Thk

Lock plate .007" Thk

1шт.

42

A50320

ROLLER BEARING,2.5" ID x 1.723"

CONE - bearing (2-1/2" I.D.)

2шт.

43

A50319

BEARING CUP

CUP - bearing (4-13/16" O.D.)

2шт.

44

A50538

SHAFT

- bevel gear, final drive

1шт.

45

A50422

OIL SEAL

- oil, bevel gear shaft (2-7/8 x 3-3/4 x 1/2")

1шт.

46

A50541

GEAR

& PINION - trans. drive (matched set)

1шт.

47

R21743

SHIM,.020" Thk

Bevel gear .020" Thk

1шт.

47

R21741

SHIM,.005" Thk

Bevel gear .005" Thk

1шт.

47

R21742

SHIM,.007" Thk

Bevel gear .007" Thk

1шт.

48

R19889

PLATE

- bevel gear retaining

1шт.

49

R19888

SCREW

BOLT - plate, 9/16 x 1-1/4" N.F. drilled hex. hd.

3шт.

52

70821

SHIM

- drive housing to trans. housing (.010")

1шт.

52

70822

SHIM

- drive housing to trans. housing (.005")

1шт.

53

A50237

STUD

- mounting, drive housing (5/8" N.C. x 2-1/2")

32шт.

54

232-41110

NUT,5/8"-11, GC

NUT - lock, 5/8" N.C. hex.

32шт.
