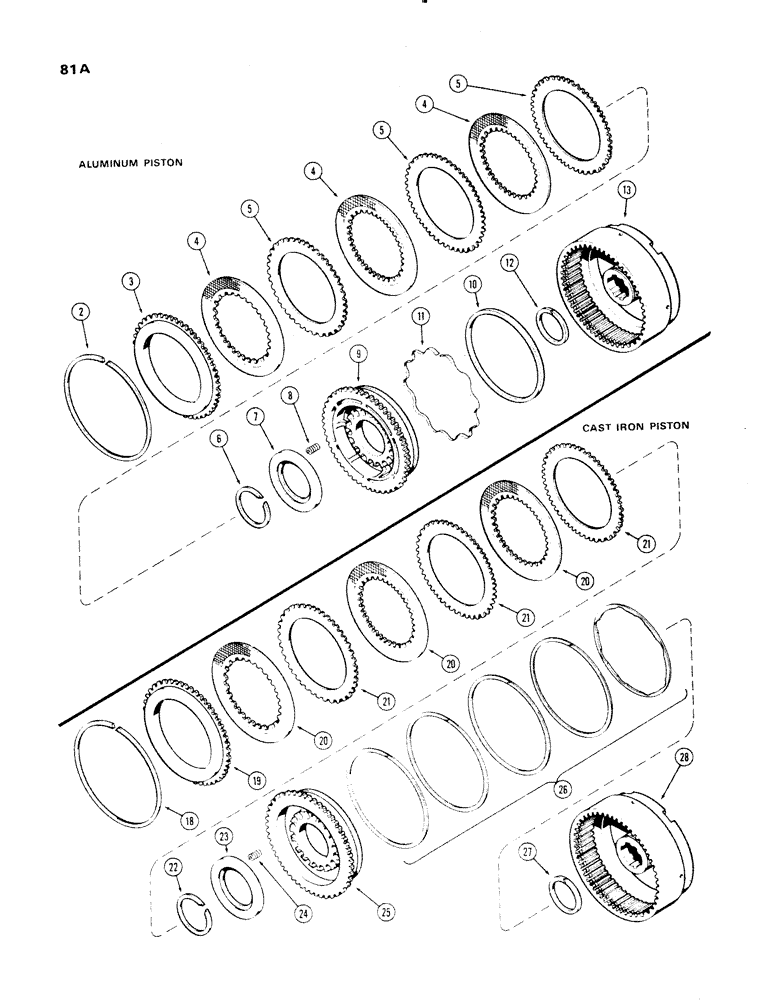

Запчасти Case 1150 (081A) - A50411 CLUTCH, W/ ALUMINUM PISTON (04) - UNDERCARRIAGE

A50411

CLUTCH

ASSY. - high-low & forward-reverse, Includes: Ref. 2 and 3

8шт.

2

30785

RING

- snap, backing plate retaining

1шт.

3

A50030

PLATE

- clutch backing

1шт.

4

A50029

PLATE

DISC - clutch (sintered) (internal teeth)

3шт.

5

A50028

PLATE

DISC - clutch (steel) (external teeth), Includes: Ref. 6 - 13

3шт.

6

A27233

RING

- snap, spring retainer

1шт.

7

R11016

RETAINER

- clutch spring

1шт.

8

R11015

SPRING

- clutch

18шт.

9

A50413

PISTON

- clutch (aluminum)

1шт.

10

A50414

SEALING RING

RING - sealing, piston

1шт.

11

A50416

SPRING

EXPANDER - piston ring

1шт.

12

A50415

SEAL

RING - sealing, drum hub

1шт.

13

A50290

DRUM

- clutch

1шт.

A50289

CLUTCH ASSY. - high-low & forward-reverse (Order A50411), Includes: Ref. 18 - 28

8шт.

18

30785

RING

- snap, backing plate retaining, A50289 clutch with cast iron piston

1шт.

19

A50030

PLATE

- backing (Replaces A50522), A50289 clutch with cast iron piston

1шт.

20

A50029

PLATE

- clutch (Sintered) (internal teeth), A50289, with cast iron piston

3шт.

21

A50028

PLATE

- clutch (Steel) (external teeth), A50289, with cast iron piston

3шт.

22

A27233

RING

- snap, spring retainer, A50289 clutch with cast iron piston

1шт.

23

R11016

RETAINER

- spring, A50289 clutch with cast iron piston

1шт.

24

R11015

SPRING

- clutch, A50289, with cast iron piston

18шт.

25

A50186

PISTON

- clutch (cast iron), A50289, with cast iron piston

1шт.

26

A50027

RING

KIT - seal, piston (incl. 4 rings & 1 expander), A50289 clutch with cast iron piston

1шт.

27

A50415

SEAL

"O" RING - drum sealing, A50289 clutch with cast iron piston

1шт.

28

A50290

DRUM

- clutch, A50289 clutch with cast iron piston

1шт.
