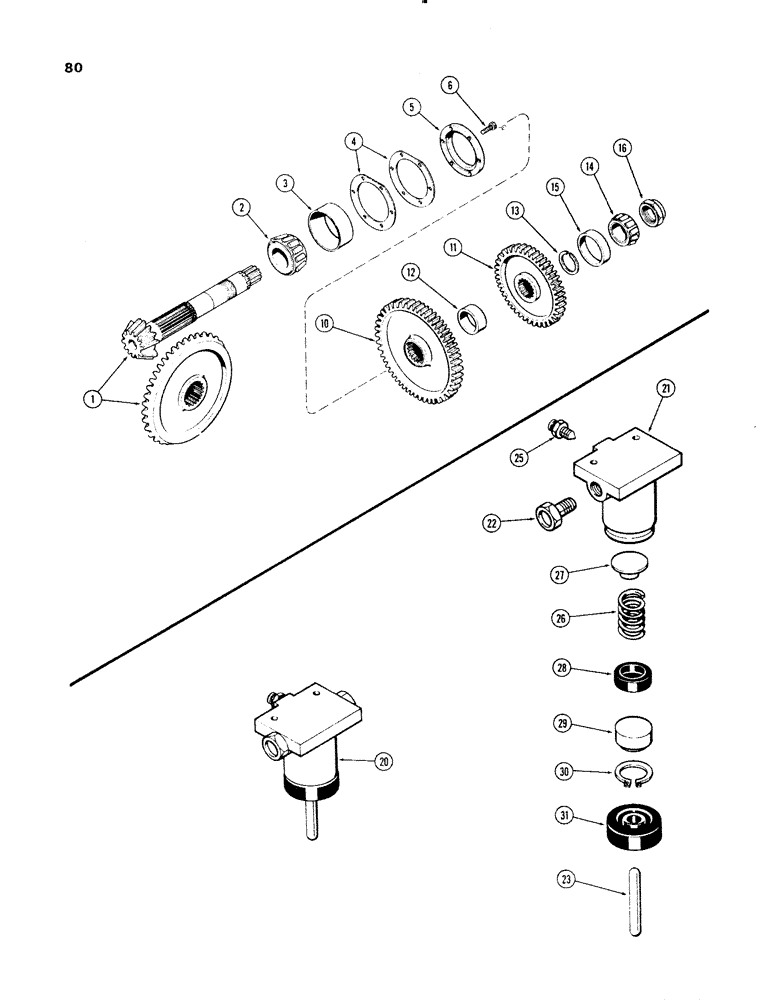

Запчасти Case 1150 (080) - BEVEL PINION SHAFT (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
1
A50541
GEAR
PINION & GEAR SET, Start Serial: 2663630
2шт.
1
A50459
SET
PINION & GEAR SET, Serial Range: -2663630
2шт.
2
40436
ROLLER BEARING,1.9375" ID x 1.751"
CONE - brg., bevel pinion (1-15/16" I.D.)
2шт.
3
NNA40435
BEARING CUP,103.2mm OD x 36.51mm W
CUP - brg., bevel pinion (4-1/16" O.D.)
2шт.
4
71396
SHIM
- lock plate, .010"
1шт.
4
71397
SHIM
- lock plate, .005"
1шт.
4
NLS
NO LONGER SERVICED
SHIM - lock plate, .003"
1шт.
5
70839
PLATE
- lock, pinion bearing
2шт.
6
46945
SCREW
- cap, 3/8 x 1" N.F. hex., drilled hd.
12шт.
10
A50497
GEAR WHEEL
GEAR - low, pinion driven (58 teeth)
2шт.
11
A50496
GEAR
- high, pinion driven (45 teeth)
2шт.
12
70833
SPACER - driven gears (1-61/64 x 2-3/8 x 1")
2шт.
13
100-11196
SNAP RING,#196, Ext
RING - snap, , high & low gear, CLAMP - harness, to engine valve cover #196, Ext
2шт.
14
40390
ROLLER BEARING,1.6875" ID x 1"
CONE - brg., pinion shaft (1-11/16" I.D.)
2шт.
15
A29062
ROLLER BEARING,82.956 mm OD x 19.101 mm
CUP - brg., pinion shaft (3-17/64" O.D.)
2шт.
16
70828
LOCK NUT
- lock, 1-5/8" N.F. hex.
2шт.
20
A50361
CYLINDER
ASSY. - hydraulic brake (1-1/16" bore), A50361, Includes: Ref. 21 - 31
2шт.
21
NSS
NOT SOLD SEPARAT
BODY - brake cylinder (Order A50361)
1шт.
22
222-1062
PLUG,7/16"-24, Inv Fl
body, cylinder, A50361, brake 7/16"-24, Inv Fl
1шт.
23
R15269
ROD
- push, cylinder piston, A50361, brake
1шт.
A40857
KIT
REPAIR KIT - brake cylinder, A50361, Includes: Ref. 25 - 31
1шт.
25
R15262
SCREW
- bleeder, cylinder, A50361, brake
1шт.
26
A50173
COIL SPRING
SPRING - pressure, cylinder, A50361, brake
1шт.
27
R15270
HARDWARE
INSERT - tube seat, A50361 brake cylinder
1шт.
28
A40858
CUP
- piston & spring, A50361 brake cylinder
1шт.
29
A40859
PISTON
- cylinder, A50361 brake cylinder
1шт.
30
R16289
SNAP RING,1.06", Int, #106
RING - snap, , piston, A50361 brake cylinder 1.06", Int, #106
1шт.
31
R16239
BOOT
- dust, cylinder, A50361, brake
1шт.
Выбрано товаров: 28
