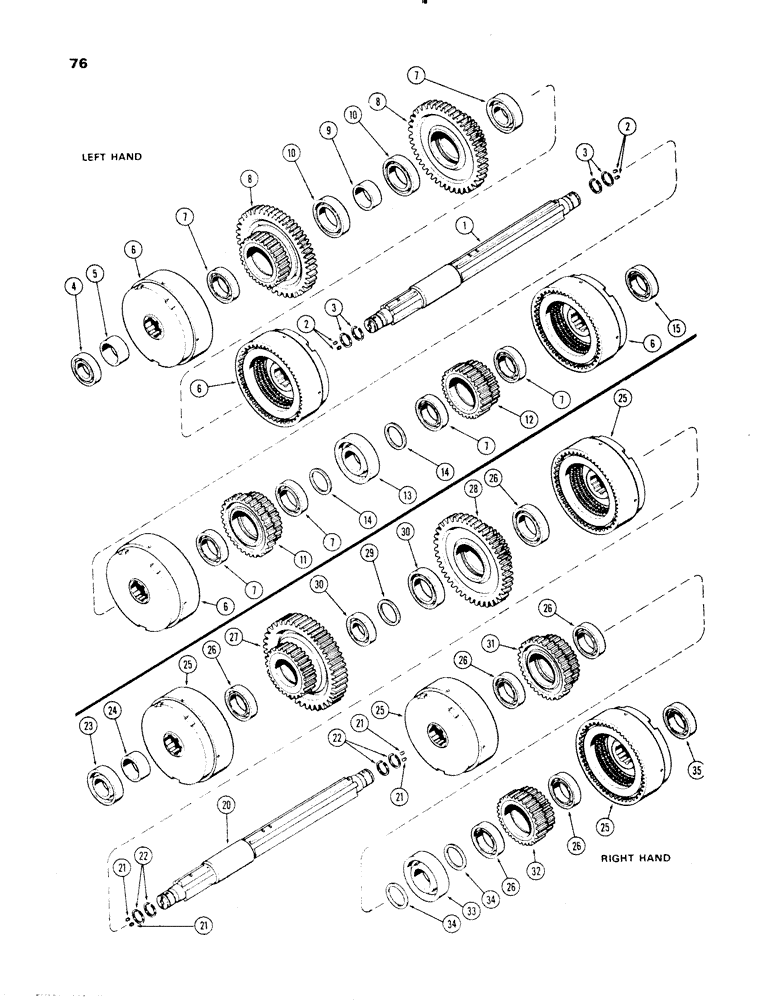

Запчасти Case 1150 (076) - LEFT HAND CLUTCH SHAFT (04) - UNDERCARRIAGE

1

A50518

SHAFT

ASSY. - clutch, left hand, Includes: Ref. 2

1шт.

2

221-850

PLUG,Hex Soc, 1/16"-27

- pipe, 1/16" hex. sckt. hd.

4шт.

3

A50389

SEAL

RING - oil seal, clutch shaft

4шт.

4

ST436

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

BEARING - ball, rear (1-37/64 x 3-35/64 x 29/32")

1шт.

5

70834

BUSHING

SPACER - bearing & clutch (1-39/64 x 2-3/8 x 1") (not used w/P.T.O.) (See figure 74)

1шт.

6

A50411

CLUTCH

ASSY. - high-low & forward-reverse (Repairs Figure 81A) (Replaces A50289)

4шт.

7

G10418

BEARING, BALL

BEARING - ball, center (1-31/32 x 3-9/64 x 5/8")

6шт.

8

A50483

GEAR

- forward & reverse clutch (29 & 51 teeth)

2шт.

9

70831

SPACER

- forward & reverse gear (2-7/32 x 2-1/2 x 1")

1шт.

10

T25088

BALL BEARING,55 mm ID x 90 mm OD x 18 mm

BEARING - ball, forward & reverse gear (2-5/32 x 3-35/64 x 45/64")

2шт.

11

A50480

GEAR

- low (23 & 29 teeth)

1шт.

12

A50481

GEAR

- high (29 & 37 teeth)

1шт.

13

40016

BALL BEARING,1.9685" ID x 4.3307" OD x 1.063"

- ball, high & low gear (1-31/32 x 4-11/32 x 1/16")

1шт.

14

A50034

SPACER

- bearing (1-31/32 x 2-3/8 x 1/8")

2шт.

15

B18215

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"

BEARING - ball, front (1-37/64 x 3-9/64 x 45/64")

1шт.

20

A50518

SHAFT

ASSY. - clutch, right hand, Includes: Ref. 21

1шт.

21

221-850

PLUG,Hex Soc, 1/16"-27

- pipe, 1/16" hex. sckt. hd., right hand clutch shaft

4шт.

22

A50389

SEAL

RING - oil seal, clutch shaft, right hand

4шт.

23

ST436

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

BEARING - ball, rear (1-37/64 x 3-35/64 x 29/32"), right hand clutch shaft

1шт.

24

70834

BUSHING

SPACER - bearing & clutch (1-39/64 x 2-3/8 x 1"), right hand shaft

1шт.

25

A50411

CLUTCH

ASSY. - high-low & forward-reverse (Repairs Figure 81A) (Replaces A50289), right hand clutch shaft

4шт.

26

G10418

BEARING, BALL

BEARING - ball, center (1-32/32 x 3-9/64 x 5/8"), right hand clutch shaft

6шт.

27

A50482

GEAR

- reverse clutch (29 & 51 teeth) (wide), right hand shaft

1шт.

28

A50483

GEAR

- forward clutch (29 & 51 teeth) (narrow), right hand shaft

1шт.

29

70829

SPACER

- forward & reverse gear (2-7/32 x 2-1/2 x 1/8"), right hand clutch shaft

1шт.

30

T25088

BALL BEARING,55 mm ID x 90 mm OD x 18 mm

BEARING - ball, forward & reverse gear (2-5/32 x 3-35/64 x 45/64"), right hand clutch shaft

2шт.

31

A50480

GEAR

- low (23 & 29 teeth), right hand clutch shaft

1шт.

32

A50481

GEAR

- high (29 & 37 teeth), right hand clutch shaft

1шт.

33

40016

BALL BEARING,1.9685" ID x 4.3307" OD x 1.063"

- ball, high & low gear (1-32/32 x 4-11/32 x 1/16"), right hand clutch shaft

1шт.

34

A50034

SPACER

- bearing (1-31/32 x 2-3/8 x 1/8"), right hand clutch shaft

2шт.

35

B18215

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"

BEARING - ball, front (1-37/64 x 3-9/64 x 45/64"), right hand clutch shaft

1шт.
