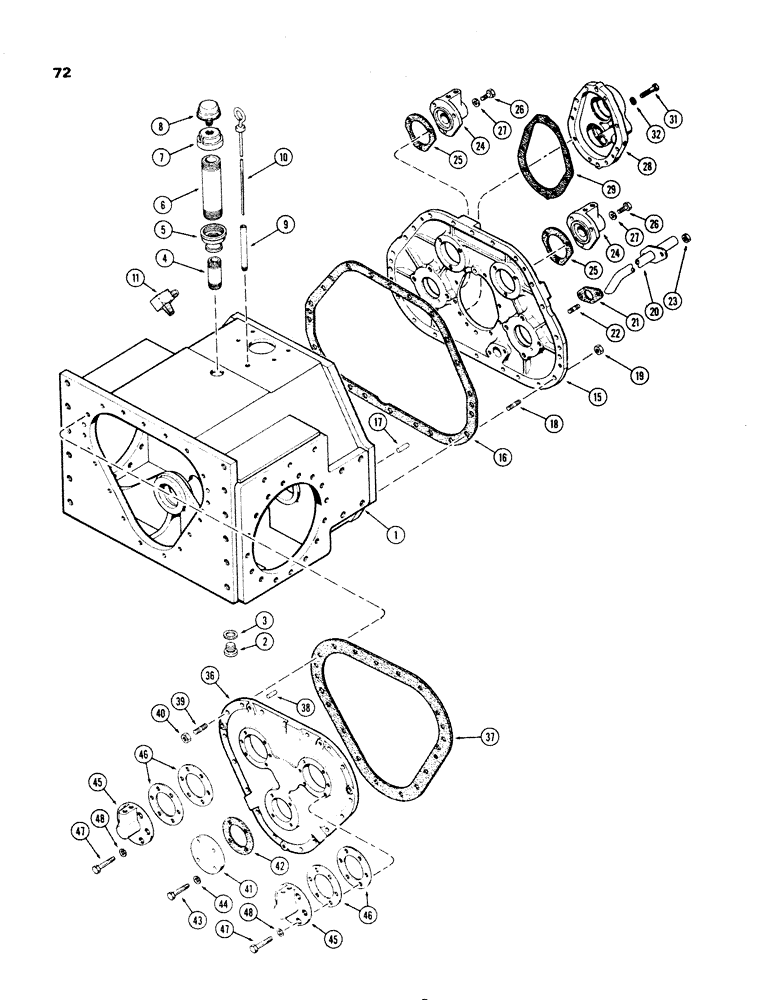

Запчасти Case 1150 (072) - TRANSMISSION HOUSING AND COVERS (03) - TRANSMISSION

A50570

TRANSMISSION ASSY. - complete, Start Serial: 2663630

1шт.

A50315

TRANSMISSION ASSY. - complete, Serial Range: -2663630

1шт.

A50569

TRANSMISSION ASSY. - less hydraulics & final drive, Start Serial: 2663630

1шт.

A50314

TRANSMISSION ASSY. - less hydraulic & final drive, Serial Range: -2663630

1шт.

1

A50426

HOUSING

- transmission

1шт.

2

R14777

PLUG

- drain, transmission housing

1шт.

3

A58613

SEALING WASHER

WASHER - drain plug (1" I.D. x 1-1/4" O.D. nylon)

1шт.

4

221-218

PIPE,Nipple, 3/4" NPT x 3 1/2"

NIPPLE - pipe, 3/4" P.T. x 3-1/2"

1шт.

5

221-360

REDUCER - pipe, 2" P.T. to 3/4" P.T.

1шт.

6

221-314

NIPPLE - pipe, 2" P.T. x 6-1/2"

1шт.

7

70665

CAP - pipe, filter mounting

1шт.

8

A27173

BREATHER

FILTER - breather

1шт.

9

R12344

SUPPORT ASSY.

SUPPORT - dipstick

1шт.

10

R12345

DIPSTICK

- oil level gauge

1шт.

11

R19880

FITTING

ELBOW - transmission oil return, 90deg.

1шт.

15

A50585

COVER - front (Replaced A50584), Start Serial: 2698192

1шт.

15

A50383

COVER

- front, Serial Range: -2698192

1шт.

16

70845

GASKET

- front cover

1шт.

17

70205

PIN

- dowel, cover locating (1/2 x 1-1/2")

6шт.

18

A50342

STUD

- front cover (1/2" N.C. x 1-7/8")

22шт.

19

88871

NUT,1/2"-13, GC

NUT, LOCK, , Front cover stud 1/2"-13, GC

22шт.

20

A50384

TUBE

- oil suction

1шт.

21

A50109

GASKET

- oil suction tube

1шт.

22

A50362

STUD

- tube flange (3/8" N.C. x 1-3/8")

2шт.

23

25-106

NUT,3/8"-16, G5

- tube stud, 3/8" N.C. hex.

2шт.

24

R11414

COVER

- oil inlet, front cover

2шт.

25

R11428

GASKET

- oil inlet cover

2шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

27

A22317

WASHER

- cover bolt (25/64 x 11/16 x 3/64" copper)

6шт.

28

A50159

NO LONGER SERVICED

COVER - mechanical shift (See Figure 74)

1шт.

29

R11425

GASKET

- shift cover

1шт.

30

70205

PIN

- dowel, cover locating (1/2 x 1-1/2")

2шт.

31

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover, 3/8 x 1-1/2" N.C. hex.

9шт.

32

A22317

WASHER

- cover bolt (25/64 x 11/16 x 3/64" copper)

9шт.

36

A50161

COVER - rear

1шт.

37

70844

GASKET

- rear cover

1шт.

38

70205

PIN

- dowel, cover locating (1/2 x 1-1/2")

2шт.

39

A50342

STUD

- rear cover, 1/2" N.C. x 1-7/8"

17шт.

40

88871

NUT,1/2"-13, GC

NUT, LOCK, , Cover stud 1/2"-13, GC

17шт.

41

70838

COVER

- rear (for trans. w/out P.T.O.)

1шт.

42

A50058

GASKET

- drive shaft cover (Replaces 34852)

1шт.

43

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

44

A22317

WASHER

- cover bolt (25/64 x 11/16 x 3/64" copper)

4шт.

45

70279

PIPE FITTING

- oil inlet, rear

2шт.

46

1342255C1

SHIM

- rear cover, Serial Range: .007"-.0063"

1шт.

46

1342256C1

SHIM

- rear cover, Serial Range: .018"-.022"

1шт.

47

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1", G5, Full Thd

12шт.

48

A22317

WASHER

- cover bolt (25/64 x 11/16 x 3/64" copper)

12шт.
