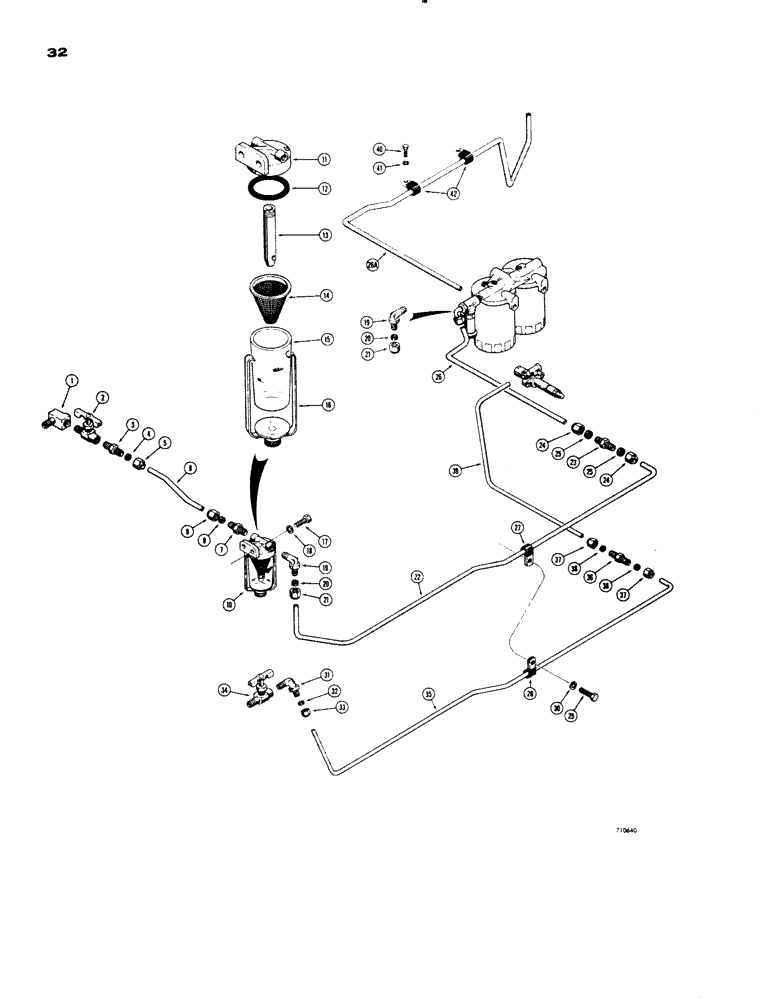

Запчасти Case 1150 (032) - FUEL LINES AND STRAINER (02) - FUEL SYSTEM

1

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- street, 90 deg. (1/4" NPT)

1шт.

2

217-94

SHUT-OFF VALVE

SHUT OFF - fuel

1шт.

3

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

CONNECTOR - flex. male, Includes: Ref. 4 and 5

1шт.

4

222-104

SLEEVE,3/8" Tube

- flex male

1шт.

5

222-114

NUT,5/8"-24

NUT - flex tube

1шт.

6

D48213

TUBE

-, Serial Range: tank-strainer

1шт.

7

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

CONNECTOR - flex, male, Includes: Ref. 8 and 9

1шт.

8

222-104

SLEEVE,3/8" Tube

- flex tube

1шт.

9

222-114

NUT,5/8"-24

NUT - flex tube

1шт.

10

R18798

STRAINER ELEMENT

STRAINER - fuel, Includes: Ref. 11 - 16

1шт.

11

R21356

HOUSING

BODY - strainer

1шт.

12

R21357

GASKET

- bowl

1шт.

13

R21360

TUBE,0.687" DIA x 3.344" L

- strainer

1шт.

14

R21359

FILTER SCREEN

SCREEN - strainer

1шт.

15

R21361

BOWL

- strainer

1шт.

16

R21358

CLAMP

BAIL - strainer

1шт.

17

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- flex, male, Includes: Ref. 20 and 21

2шт.

20

222-104

SLEEVE,3/8" Tube

- flex tube

1шт.

21

222-114

NUT,5/8"-24

NUT - flex tube

1шт.

22

D50743

TUBE

- fuel. rear (Suction)

1шт.

On models with one-piece tube from tank to filter, order D50743 tube. D50741 tube and 222-5 adapter.

1шт.

23

222-5

FITTING,5/8"-24 Flex Tube

ADAPTER - flex tube, Includes: Ref. 24 and 25

1шт.

24

222-114

NUT,5/8"-24

NUT - adapter

2шт.

25

222-104

SLEEVE,3/8" Tube

- adapter

2шт.

26

D50741

TUBE - fuel, front (Suction), Start Serial: 7300916

1шт.

On models with one-piece tube from tank to filter, order D50743 tube. D50741 tube and 222-5 adapter.

1шт.

26a

D52503

TUBE - fuel, front (Suction), Serial Range: -7300916

1шт.

27

49852

PTO SHAFT

- 3/8" tube

2шт.

28

49851

SHIELD

- 1/4" tube

2шт.

29

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

30

92-5

LOCK WASHER,5/16"

2шт.

31

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

- flex, male, Includes: Ref. 32 and 33

1шт.

32

222-102

SLEEVE,1/4" Tube

1шт.

33

87017024

TUBE NUT,1/2"-24

NUT - flex tube

1шт.

34

217-94

SHUT-OFF VALVE

SHUT OFF - fuel

1шт.

35

D50742

PIPE

TUBE - fuel, rear (Return)

1шт.

On models with one-piece tube from tank to injectors, order D50742 tube. D50740 tube and 222-3 adapter.

1шт.

36

222-3

FITTING,1/2"-24 Flex Tube

ADAPTER - flex tube, Includes: Ref. 37 and 38

1шт.

37

87017024

TUBE NUT,1/2"-24

NUT - adapter

2шт.

38

222-102

SLEEVE,1/4" Tube

Adapter 1/4" Tube

2шт.

39

D50740

TUBE

- fuel. front (Return)

1шт.

On models with one-piece tube from tank to injectors, order D50742 tube. D50740 tube and 222-3 adapter.

1шт.

40

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

41

92-6

LOCK WASHER,3/8"

2шт.

42

49845

CLAMP

- D52503 tube

2шт.
