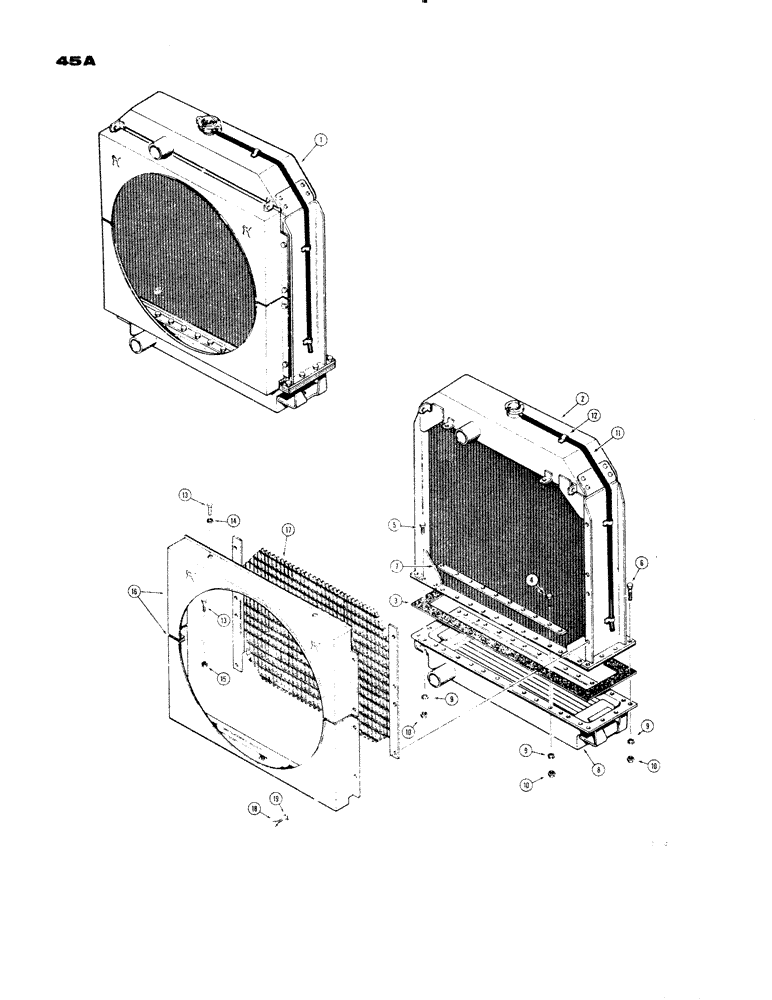

Запчасти Case 1150 (045A) - R24029 RADIATOR, YOUNG RADIATOR (01) - ENGINE

1

R24029

RADIATOR

- cooling, Young #E246800, Includes: Ref. 2 - 19

1шт.

2

NSS

NOT SOLD SEPARAT

TOP TANK AND CORE ASSEMBLY - radiator

1шт.

3

D38230

GASKET

- top tank and oil cooler

1шт.

4

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

20шт.

5

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

8шт.

6

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

8шт.

7

D38227

BAR - header

2шт.

8

R24689

TANK - oil cooler (If replacement is required also replace D38230 gasket which must be ordered separately)

1шт.

9

92-5

LOCK WASHER,5/16"

36шт.

10

25-106

NUT,3/8"-16, G5

- hex. (5/16" - 18")

36шт.

11

D38224

HOSE - overflow

1шт.

12

R24692

CLAMP - hose

3шт.

13

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

131-204

NUT,1/4"-20

NUT - hex. lock (1/4" - 20 NC)

2шт.

16

R24690

SHROUD - fan

1шт.

17

R24691

GUARD

SCREEN - anti-sand blast

1шт.

18

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

HHCS - 1/4" - 20 NC x 5/8"

8шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.
