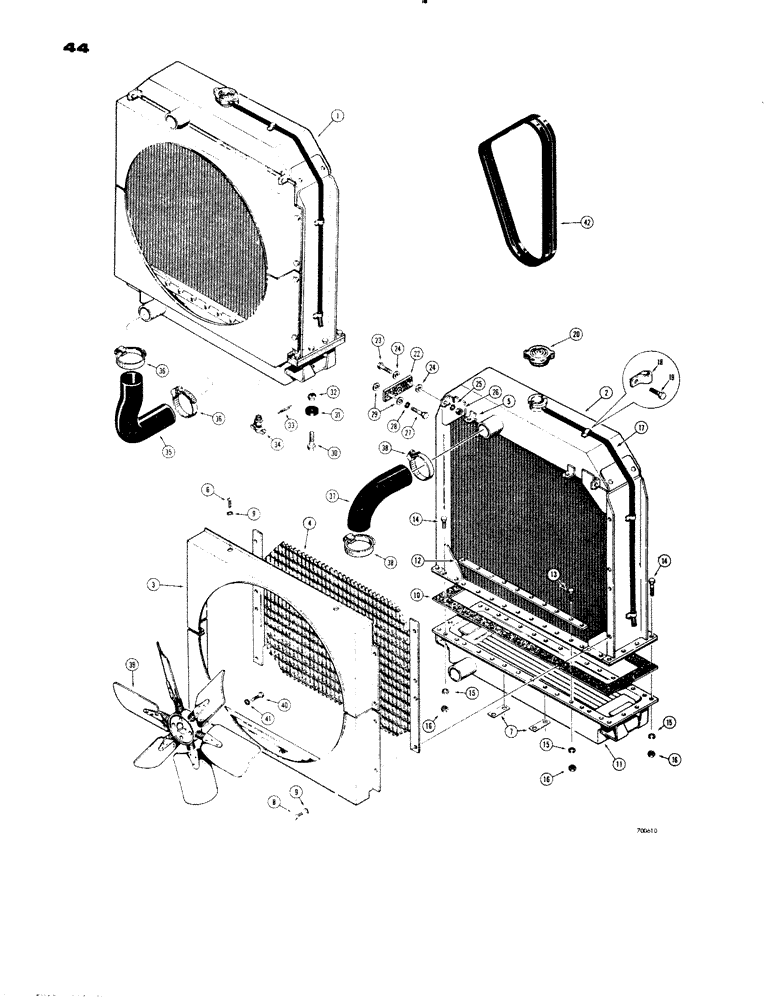

Запчасти Case 1150 (044) - RADIATOR, FAN AND HOSES, PERFEX RADIATOR (01) - ENGINE

1

R24028

RADIATOR

- cooling, Perfex #8449-D, Includes: Ref. 2 - 19

1шт.

2

D53285

TANK

TOP TANK AND CORE - R24028 radiator

1шт.

3

D47903

SHROUD - radiator

1шт.

4

D49173

FILTER SCREEN

SCREEN - anti-sand blast

1шт.

5

D48110

CLIP - shroud, top

2шт.

6

75-46

SCREW

RHMS - 1/4" - 20 NC xd 3/8"

4шт.

7

D48111

CLIP - shroud, bottom

2шт.

8

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

8шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

10

72773

FLEXIBLE HOSE

- core

2шт.

11

D50908

BOTTOM TANK AND COOLER - radiator (If replacement is required also replace 72773 gasket which must be ordered separately)

1шт.

12

R22015

WASHER - radiator core

2шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

32шт.

14

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

8шт.

15

92-5

LOCK WASHER,5/16"

40шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

40шт.

17

D47905

HOSE - overflow

1шт.

18

R22017

CLAMP - overflow hose

2шт.

19

R18946

SCREW - drive, no. 20 x 3/8"

2шт.

20

D50206

CAP

- pressure, 15 P.S.I.

1шт.

22

D35108

STRAP

- radiator mounting, fan and hoses

2шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Fan and hoses Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

24

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- special, fan and hoses

4шт.

25

92-6

LOCK WASHER,3/8"

fan and hoses 3/8"

2шт.

26

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), fan and hoses

2шт.

27

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Fan and hoses Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

28

92-6

LOCK WASHER,3/8"

fan and hoses 3/8"

2шт.

29

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- special, fan and hoses

4шт.

30

F62016

SCREW

BOLT - special (Drilled), fan and hoses

2шт.

31

70198

WASHER

- vibration, fan and hoses

2шт.

32

25-138

SLOTTED NUT,1/2"-20, G5

NUT - hex., slotted (1/2" - 20 NF), fan and hoses

2шт.

33

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , Fan and hoses 1/8" x 1"

2шт.

34

217-92

COCK

DRAIN COCK - radiator (1/4" NPT), fan and hoses

1шт.

35

D47752

RADIATOR HOSE,2.63" ID x 8.50", SAE 20R4 Class C

- Outlet, Fan and hoses 2.63" ID x 8.50", SAE 20R4 Class C

1шт.

36

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose, fan and hoses

2шт.

37

D47823

RADIATOR HOSE,2.50" ID x 9.50", SAE 20R4 CLASS SC or SAE 20R4 CLASS R

Inlet, Fan 2.50" ID x 9.50", SAE 20R4 CLASS SC or SAE 20R4 CLASS R

1шт.

38

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, fan and hoses

2шт.

39

D12906

FAN

- pusher (Standard) Not illustrated, hoses

1шт.

Use D49173 anti-sand blast screen with D12906 pusher fan and D41565 reversible fan only.

1шт.

39

D12907

FAN

- suction (Optional) Not illustrated, hoses

1шт.

39

D41565

FAN

- reversible, optional, hoses

1шт.

Use D49173 anti-sand blast screen with D12906 pusher fan and D41565 reversible fan only.

1шт.

40

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Fan and hoses Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

41

92-6

LOCK WASHER,3/8"

fan and hoses 3/8"

4шт.

42

D47563

SET OF BELTS,0.69" W x 56.50" L

SET OF 2 BELTS , Fan, Hoses 0.69" W x 56.50" L

1шт.
