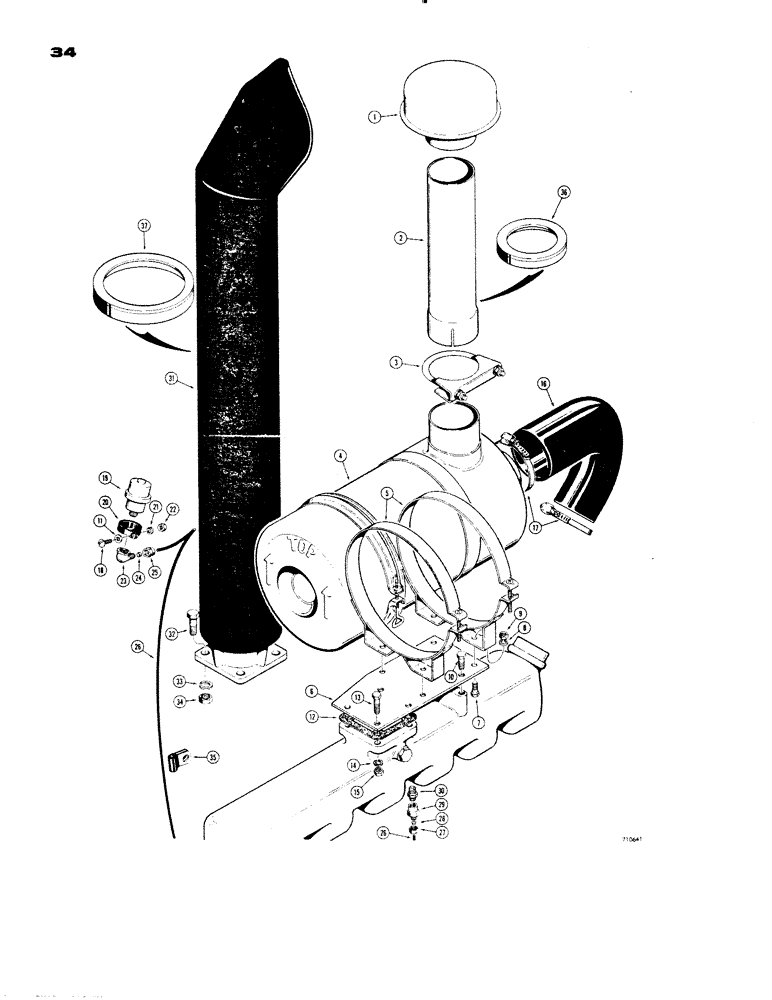

Запчасти Case 1150 (034) - MUFFLER AND DRY TYPE AIR CLEANER (01) - ENGINE

1

A61277

CAP

- screen, air cleaner (Replaced A61227)

1шт.

2

D34631

TUBE

STACK - air cleaner

1шт.

3

A19955

CLAMP

- stack

1шт.

4

D36261

CLEANER

AIR CLEANER - dry type (Parts list figure 38)

1шт.

5

D52449

BRACKET

CLAMP - mounting, air cleaner

2шт.

6

D47806

BRACKET - air cleaner

1шт.

7

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

8

92-5

LOCK WASHER,5/16"

4шт.

9

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

HHCS - 3/8" - 16 NC X 3/4"

2шт.

11

195-18

WASHER,1/4"

- plain (3/8") Indicator spacer

1шт.

12

A58910

GASKET

- manifold

1шт.

13

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

4шт.

14

92-6

LOCK WASHER,3/8"

4шт.

15

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

16

D47807

LARGE HOSE

ELBOW - hose

2шт.

17

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose

2шт.

18

173-202

SCREW,Rnd Hd, 1/4" - 20 x 3/4"

RHMS - 1/4" - 20 NC x 3/4" (Zinc plated)

1шт.

19

D47217

INDICATOR

FILTER INDICATOR - air cleaner

1шт.

20

D45064

CLAMP,1 3/8", Insul, 1/4" Bolt

- indicator

1шт.

21

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

22

25-104

NUT,1/4"-20, G5

1шт.

D45588

FITTING

ELBOW ASSEMBLY - special, 90 deg., Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

ELBOW - special, 90deg.

1шт.

24

D37176

SLEEVE

1шт.

25

D37362

TUBE NUT

1шт.

26

D36961

TUBE

- indicator to inlet tube

1шт.

D35091

PIPE FITTING

CONNECTOR ASSEMBLY - female, Includes: Ref. 27 - 29

1шт.

27

D37362

TUBE NUT

- connector

1шт.

28

D37176

SLEEVE

- connector

1шт.

29

NSS

NOT SOLD SEPARAT

CONNECTOR - female

1шт.

30

D36264

FITTING

CONNECTOR, special, filter type

1шт.

31

D47767

MUFFLER

- exhaust

1шт.

The Adapter Plate. There is no Gasket used.

1шт.

32

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

4шт.

33

92-8

LOCK WASHER,1/2"

4шт.

34

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13NC)

4шт.

35

D43839

CLAMP

- tube

1шт.

36

D50828

RING - trash guard, air cleaner (Feller Buncher)

1шт.

37

D50827

RING

- trash guard, muffler (Feller Buncher)

1шт.
