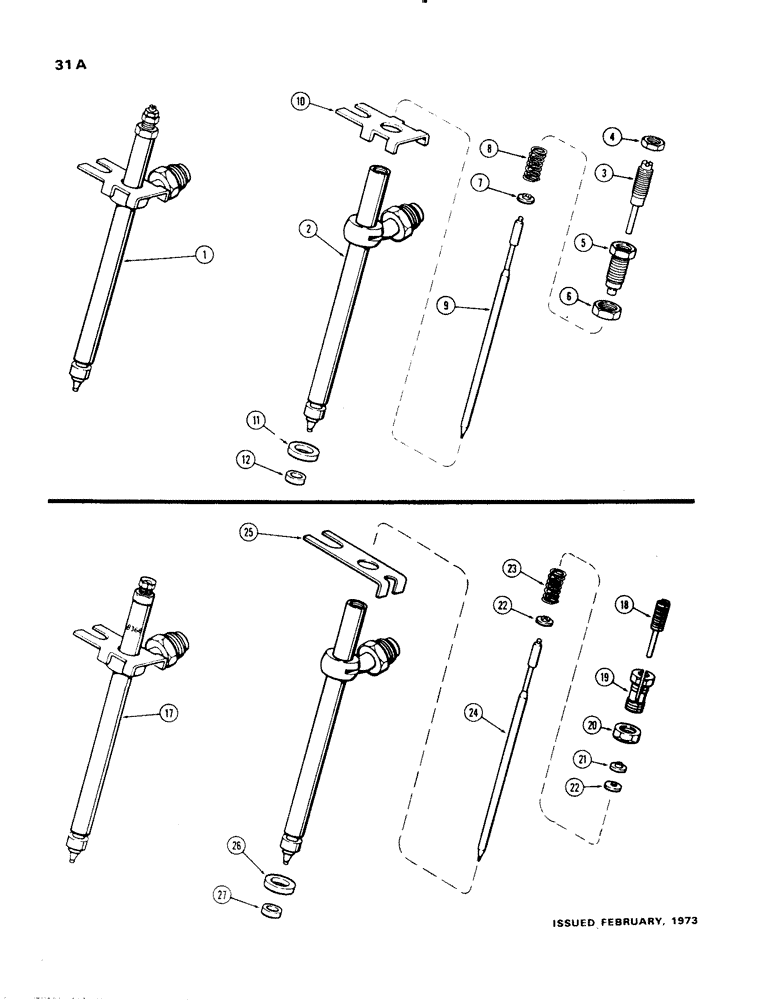

Запчасти Case 1150 (031A) - A62809 INJECTOR NOZZLES, (401B) DIESEL ENGINE, 1ST USED ENGINE SERIAL NO. 2504221 (01) - ENGINE

1

A62809

NOZZLE CAP

NOZZLE ASSY. - injector (3200 P.S.I.) (Stanadyne #19745), Includes: Ref. 2 - 12

6шт.

Whenever nozzle is removed from head seal (A41402) and washer (A41403)

1шт.

A138322R

REMAN-INJECT NOZZLE

1150 TORQUE CONVERTER (S/N 7110300 & AFTER), 1ST USED ENGINE SERIAL NO. 2504221 REMAN FOR NEW P/N A62809

6шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle (red paint color code)

1шт.

3

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock, lift adjusting screw

1шт.

5

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting screw

1шт.

7

A44369

SEAT

- spring

1шт.

8

A43601

SPRING

- pressure adjusting (1/2" free length with brown stripe)

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

10

A41768

PLATE

- nozzle locating

1шт.

11

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle

1шт.

12

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

17

A58694

NOZZLE

ASSY. - injector (2800 P.S.I.) (Stanadyne #I-18084) (Order A62809), Includes: Ref. 18 - 27, A58694 injector nozzles, Serial Range: -2504221

6шт.

Whenever nozzle is removed from head seal (A41402) and washer (A41403)

1шт.

A138322R

REMAN-INJECT NOZZLE

1150 TORQUE CONVERTER (S/N 7110300 & AFTER) 1ST USED ENGINE SERIAL NO. 2504221 REMAN FOR NEW P/N A58694

6шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

18

A41408

ADJUSTMENT SCREW,#10 - 56 x 1.40"

SCREW - lift adjusting, A58694 injector nozzles, Serial Range: -2504221

1шт.

19

A41409

ADJUSTMENT SCREW,5/16" - 48

SCREW - pressure adjusting, A58694 injector nozzles, Serial Range: -2504221

1шт.

20

A42424

LOCK NUT

- lock, adjusting screws, A58694 injector nozzles, Serial Range: -2504221

1шт.

21

A41407

WASHER

- valve ball seat, A58694 injector nozzles, Serial Range: -2504221

1шт.

22

A41401

SEAT

- pressure spring, A58694 injector nozzles, Serial Range: -2504221

2шт.

23

A41444

VALVE SPRING

SPRING - pressure adjusting (1/2" free length, plain), A58694 injector nozzles, Serial Range: -2504221

1шт.

24

NSS

NOT SOLD SEPARAT

VALVE - nozzle, A58694 injector, Serial Range: -2504221

1шт.

25

A41768

PLATE

- nozzle locating, A58694 injector, Serial Range: -2504221

1шт.

26

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle, A58694 injector, Serial Range: -2504221

1шт.

27

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, A58694 injector nozzles, Serial Range: -2504221

1шт.
