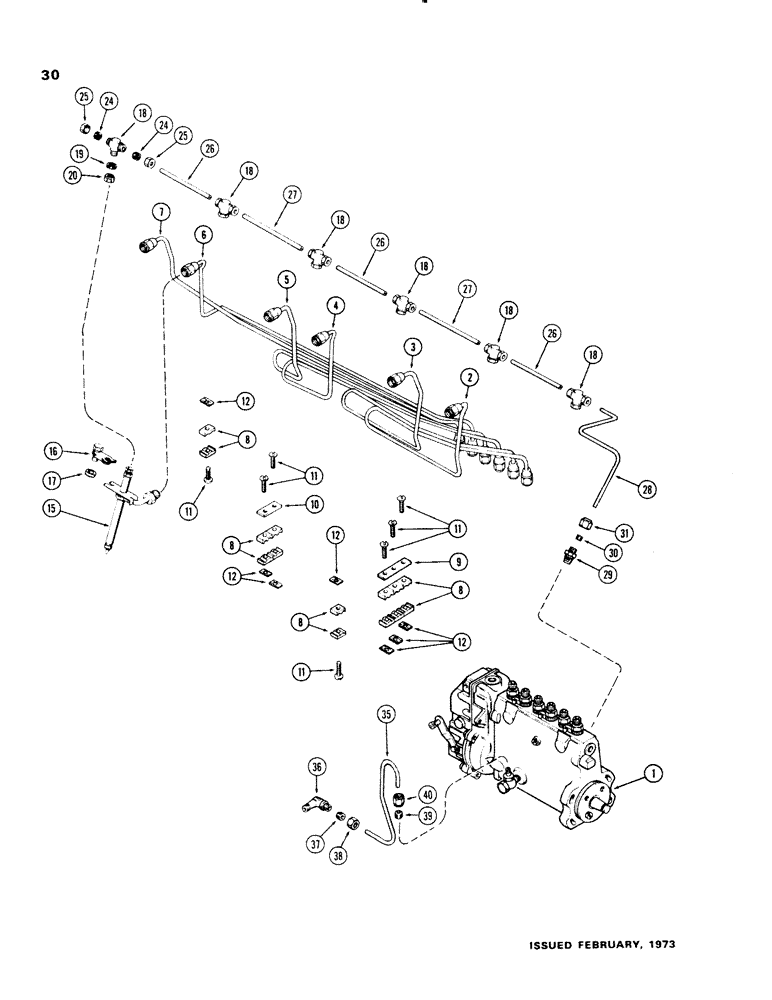

Запчасти Case 1150 (030) - FUEL INJECTION SYSTEM, (401B) DIESEL ENGINE (01) - ENGINE

1

REF

INSTRUCTION

PUMP ASSY. - fuel injection (See figure 26)

1шт.

2

A58702

TUBE

- injection, #1 cylinder

1шт.

3

A58703

TUBE

- injection, #2 cylinder

1шт.

4

A58704

TUBE

- injection, #3 cylinder

1шт.

5

A58705

TUBE

- injection, #4 cylinder

1шт.

6

A58706

TUBE

- injection, #5 cylinder

1шт.

7

A58707

TUBE

- injection, #6 cylinder

1шт.

8

A58709

BRACKET

- tube

14шт.

9

A58708

PLATE

- tube bracket (6 tubes)

1шт.

10

A58710

PLATE

- tube bracket (4 tubes)

1шт.

11

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

- (#10 x 1" N.C. sltd. hex. hd.)

7шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - #10 flat Tinnerman

7шт.

15

REF

INSTRUCTION

NOZZLE ASSY. - fuel injection (See Figure 31A)

6шт.

16

A58695

CLAMP

ASSY. - nozzle

6шт.

17

A58696

SPACER

- nozzle clamp

6шт.

18

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - nozzle & leak-off lines

6шт.

19

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

-, Serial Range: tee-nozzle

6шт.

20

A58961

NUT

-, Serial Range: nozzle-tee

6шт.

24

222-102

SLEEVE,1/4" Tube

12шт.

25

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

12шт.

26

A58965

TUBE

- leak-off (1/4" O.D. x 4-5/8" long)

3шт.

27

A58964

TUBE

- leak-off (1/4" O.D. x 5-5/8" long)

2шт.

28

A58963

TUBE

-, Serial Range: leak-off-pump

1шт.

29

A28098

VALVE

ASSY. - check (one way valve), Includes: Ref. 30 and 31

1шт.

30

222-102

SLEEVE,1/4" Tube

1шт.

31

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

35

A58717

TUBE

- lube, Serial Range: oil-pump

1шт.

36

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY. - tube to block, 1/4" tube x 1/8" P.T., Includes: Ref. 37 and 38

1шт.

37

222-102

SLEEVE,1/4" Tube

1шт.

38

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

39

222-102

SLEEVE,1/4" Tube

Tube to pump 1/4" Tube

1шт.

40

87017024

TUBE NUT,1/2"-24

NUT - tube to pump, (For 1/4" tube)

1шт.
