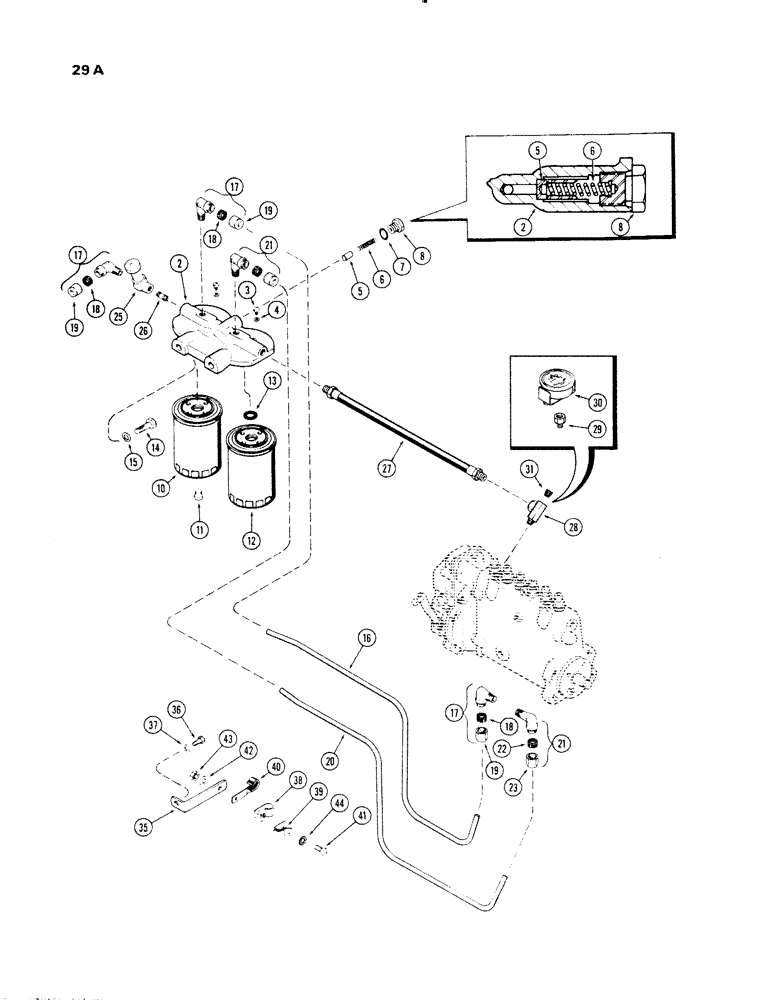

Запчасти Case 1150 (029A) - FUEL INJECTION FILTER SYSTEM, (401B) DIESEL ENGINE, USED PRIOR TO ENG. SN. 2319862 (01) - ENGINE

A58719

FILTER

ASSY. - 1st & 2nd stage, Includes: Ref. 2 - 13

1шт.

2

A58711

FILTER

HEAD - filter mounting

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleeder

2шт.

4

A20662

GASKET

WASHER - bleeder screw

2шт.

5

A24917

PLUNGER

- relief valve

1шт.

6

A24918

SPRING

- relief valve

1шт.

7

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - plug (1/2 x 11/16 x 3/32")

1шт.

8

A24916

PLUG

- relief valve

1шт.

CASA41745

FUEL FILTER

FILTER KIT - fuel, Includes: Ref. 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

FILTER - 1st stage, Includes: Ref. 11

1шт.

11

221-1661

PLUG

- pipe, 1/8" hex. hd.

1шт.

12

NSS

NOT SOLD SEPARAT

FILTER - 2nd stage, Includes: Ref. 13

1шт.

13

A42315

GASKET

-, Serial Range: filter-head

1шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Head Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

A58714

TUBE

- 1st stage filter to pump (3/8" O.D.)

1шт.

17

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- fuel line, 3/8" tube x 1/4" P.T., Includes: Ref. 18 and 19

3шт.

18

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

19

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

20

A58715

TUBE

- pump to 2nd stage filter (5/16: O.D.)

1шт.

21

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- fuel line, 5/16" tube x 1/4" P.T., Includes: Ref. 22 and 23

2шт.

22

222-103

SLEEVE,5/16" Tube

1шт.

23

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

25

A60042

PUMP

- hand primer, fuel

1шт.

25

A60042R

REMAN-FUEL LIFT PUMP

Hand Primer

1шт.

25

A60042C

CORE-FUEL LIFT PUMP

Return Number

1шт.

26

221-131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - 1/4" P.T. x 1"

1шт.

27

A58716

HOSE

- fuel, filter to pump (17" lg.)

1шт.

28

A20539

FITTING

UNION -, Serial Range: hose-pump

1шт.

29

A28061

FITTING

SNUBBER - pressure, Serial Range: gauge-union

1шт.

30

A8101

GAUGE

- fuel pressure

1шт.

31

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe (1/8" P.T., square head) (Replaces Refs. 29 & 30)

1шт.

35

A58718

BRACKET

-, Serial Range: tubes-block

1шт.

36

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

37

92-6

LOCK WASHER,3/8"

1шт.

38

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

CLIP - tube (5/16" tube)

1шт.

39

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - tube (3/8" tube)

1шт.

40

A59112

CLIP - hose

1шт.

41

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

42

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

43

25-104

NUT,1/4"-20, G5

1шт.

44

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

1шт.
