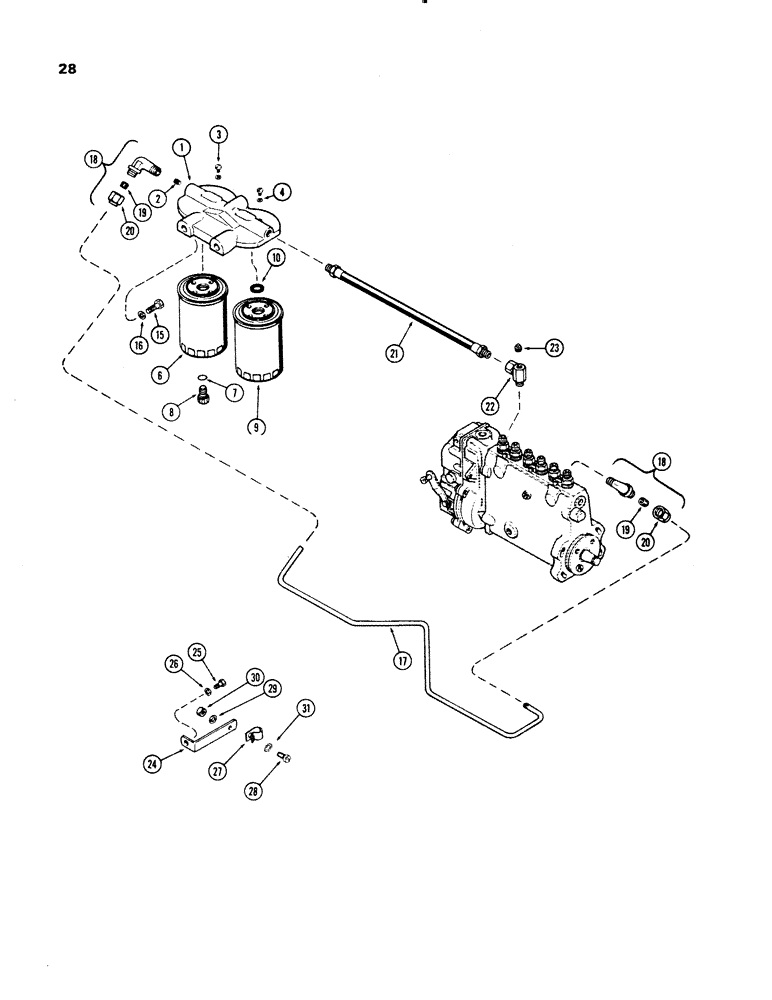

Запчасти Case 1150 (028) - FUEL INJECTION FILTER SYSTEM, (401B) DIESEL ENGINE, 1ST USED (01) - ENGINE

A62347

FILTER

ASSY. - 1st and 2nd stage, Includes: Ref. 1 - 10

1шт.

1

A62339

HEAD

- filter mounting, Includes: Ref. 2

1шт.

2

221-41

PLUG

- pipe (1/8" P.T.)

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleeder

2шт.

4

A20662

GASKET

WASHER - bleeder screw

2шт.

NLS

NO LONGER SERVICED

FILTER KIT - fuel, Includes: Ref. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

FILTER - 1st stage, Includes: Ref. 7 and 8

1шт.

7

G49080

PLUG

- 3/8" N.C., 10 pt. hd. (plastic)

1шт.

8

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - 3/8 x 9/16 x 3/32"

1шт.

221-1661

PLUG

- (steel) (Order G49080 plug & A27891 "O" ring)

1шт.

9

NSS

NOT SOLD SEPARAT

FILTER - 2nd stage, Includes: Ref. 10

1шт.

10

A42315

GASKET

-, Serial Range: filter-head

1шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

A62342

TUBE

- transfer pump to 1st filter

1шт.

18

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - fuel line (5/16" tube x 1/4" P.T.), Includes: Ref. 19 and 20

2шт.

19

222-103

SLEEVE,5/16" Tube

1шт.

20

222-113

TUBE NUT,9/16"-24

NUT - (5/16" tube)

1шт.

21

A65564

HOSE,9.53mm ID x 390.65mm L, SAE 100R6

- fuel, filter to pump (16" long)

1шт.

22

A20539

FITTING

UNION -, Serial Range: hose-pump

1шт.

23

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe (1/8" P.T., square head)

1шт.

24

A58718

BRACKET

- tube to block (4-9/16" long)

1шт.

24

A64856

BRACKET

- tube to block (3-1/4" long)

1шт.

25

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

26

92-6

LOCK WASHER,3/8"

1шт.

27

49852

PTO SHAFT

CLIP - tube (5/16" tube)

1шт.

28

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

29

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

30

25-104

NUT,1/4"-20, G5

1шт.

31

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

1шт.
