Запчасти Case 1150 (027A) - FUEL INJECTION PUMP, (401B) DIESEL ENGINE, 1ST USED ENGINE SERIAL NO. 3219862 (01) - ENGINE

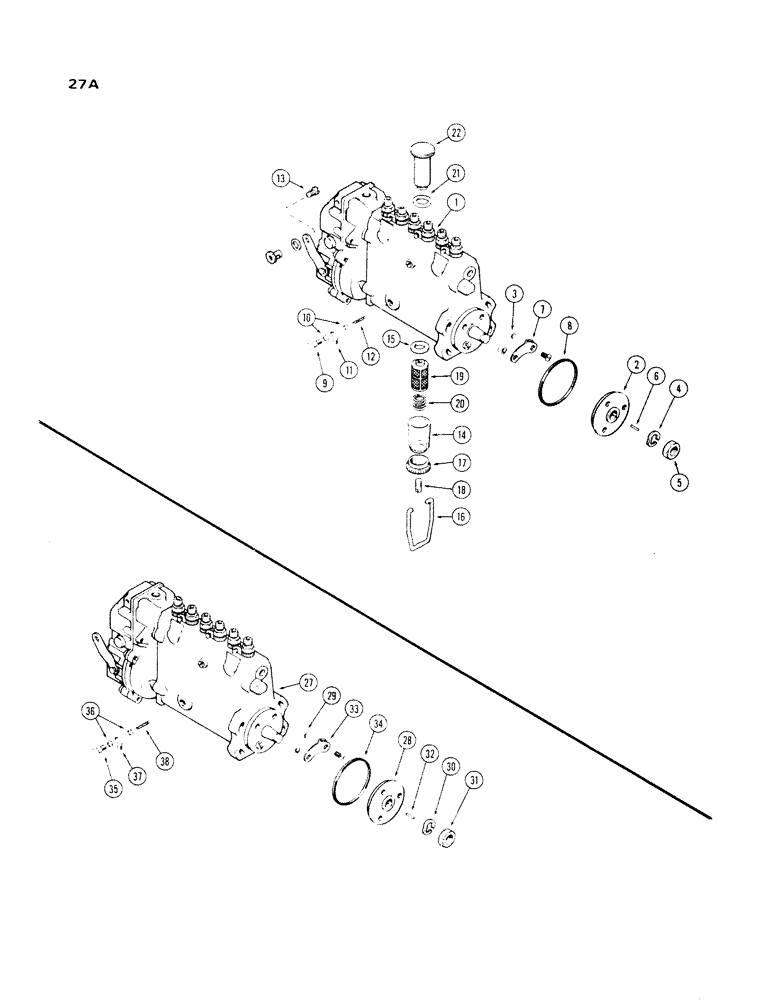

Схема запчастей Case 1150 - (027A) - FUEL INJECTION PUMP, (401B) DIESEL ENGINE, 1ST USED ENGINE SERIAL NO. 3219862 (01) - ENGINE
38
28
15
37
32
10
31
30
18
4
21
33
1
12
20
17
27
2
35
6
8
19
13
36
5
3
14
22
16
9
34
7
11
29

Артикул

Название

Примечание

Количество

1

A62327

PUMP

ASSY. fuel injection (1900 RPM) (Used w/loader) (Bosch Pump #PES6A85C42OLS2264) (Bosch Governor #EP/RSV 300-950A2B), Includes: Ref. 2 - 22

1шт.

1

A62328

PUMP

ASSY. - fuel injection (1850 R.P.M.) (Used w/Dozer) (Bosch Pump #PES6A85C42OLS2264) (Bosch Governor #EP/RSV 300-925A2B544DR), Includes: Ref. 2 - 22

1шт.

2

A41853

HUB

- pump drive

1шт.

3

A41855

BUSHING

SPACER - timing pointer

2шт.

4

A42312

LOCK WASHER

- lock, hub nut

1шт.

5

A42313

NUT

- hub

1шт.

6

A20933

KEY

-, Serial Range: hub-shaft

1шт.

7

A41854

INDICATOR

POINTER - pump adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - sealing (2-21/64 x 3-3/16 x 1/8")

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube fitting

1шт.

10

A22381

WASHER

- copper, tube fitting

2шт.

11

A25191

FITTING

- banjo, oil, Serial Range: tube-pump

1шт.

12

A25190

SPRING

- oil tube fitting

1шт.

13

A42829

SCREW,M4 x 3/4" x 0.75mm

- pump stop control cable lock

1шт.

14

A43347

BOWL

- filter

1шт.

15

A43346

GASKET

- bowl

1шт.

16

A43350

CLAMP

BAIL - bowl

1шт.

17

A43348

NUT

BAILNUT - retaining

1шт.

18

A43349

STUD

- bailnut

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

20

A43345

SPRING

- element retaining

1шт.

21

A43351

SEAL

- primer & port, copper gasket

2шт.

22

A43343

CARTRIDGE

PRIMER - fuel, hand pump

1шт.

27

A61238

PUMP ASSY. - fuel injection (1900 R.P.M. w/Loader), Includes: Ref. 28 - 38, Serial Range: -2319862

1шт.

27

A60503

PUMP ASSY. - fuel injection (1850 R.P.M. w/Dozer, Includes: Ref. 28 - 38, Serial Range: -2319862

1шт.

28

A41853

HUB

- pump drive, Serial Range: -2319862

1шт.

29

A41855

BUSHING

SPACER - hub, Serial Range: -2319862

2шт.

30

A42312

LOCK WASHER

- lock, hub nut, Serial Range: -2319862

1шт.

31

A42313

NUT

- hub, Serial Range: -2319862

1шт.

32

A20933

KEY

- hub to shaft, Serial Range: -2319862

1шт.

33

A41854

INDICATOR

POINTER - pump adjustment, Serial Range: -2319862

1шт.

34

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - pump mounting, Serial Range: -2319862

1шт.

35

A25192

BANJO BOLT

BOLT - lube tube fitting, Serial Range: -2319862

1шт.

36

A22381

WASHER

- tube fitting (Copper), Serial Range: -2319862

2шт.

37

A25191

FITTING

- banjo, oil tube to pump, Serial Range: -2319862

1шт.

38

A25190

SPRING

- tube fitting, Serial Range: -2319862

1шт.

Выбрано товаров: 36
