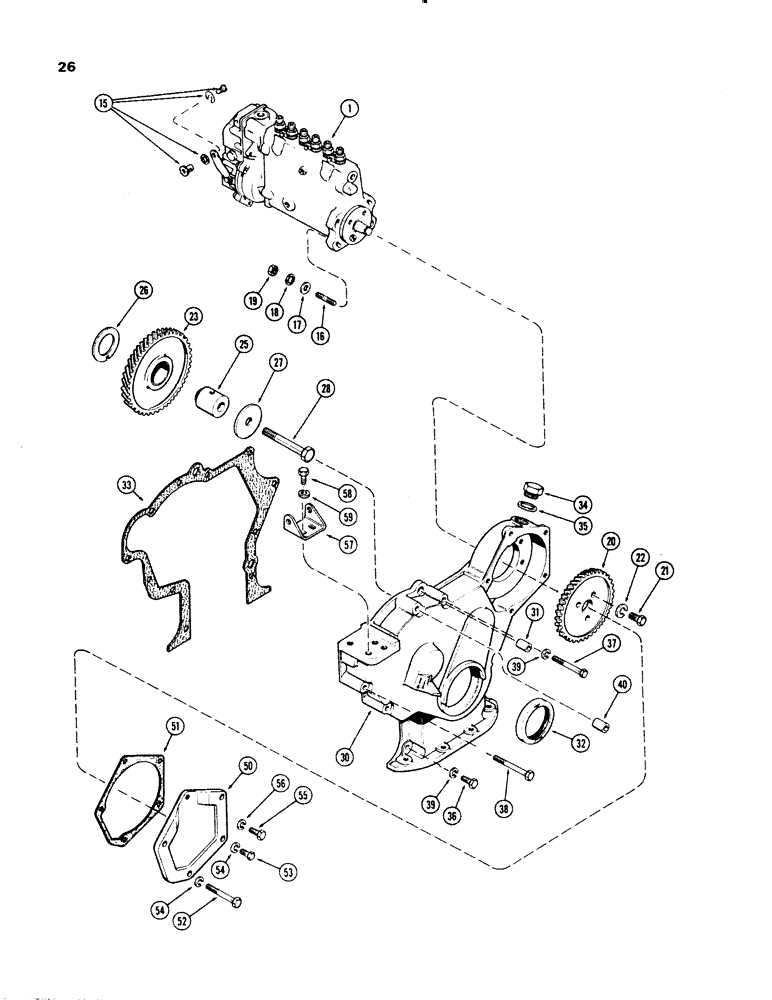

Запчасти Case 1150 (026) - FUEL INJECTION PUMP AND DRIVE, (401B) DIESEL ENGINE (01) - ENGINE

1

A62327

PUMP

ASSY. - fuel injection (1900 R.P.M.) (Used w/loader) (Bosch Pump #PES6A85C42OLS2264) (Bosch Governor #EP/RSV 300-950A2B) (1st Used Eng. Serial No. 2319862) (See figure 27A For Repairs), Start Serial: 2319862

1шт.

1

A62328

PUMP

ASSY. - fuel injection (1850 R.P.M.) (Used w/Dozer) (Bosch Pump #PES6A85C420LS2264) (Bosch Governor #EP/RSV 300-925A2B544DR) (First Used Eng Ser. No. 2319862)(See figure 27A For Reapirs), Start Serial: 2319862

1шт.

1

A61238

PUMP ASSY. - fuel injection (1900 R.P.M.) (Used w/Loader) (See Figure 27A For Repairs), Serial Range: -2319862

1шт.

1

A60503

PUMP ASSY. - fuel injection (1850 R.P.M.) (Used w/Dozer) (See Figure 27A For Repairs), Serial Range: -2319862

1шт.

15

A59101

PIVOT

- stop control

1шт.

16

A58689

STUD

- mounting, injection pump (3/8" N.C. x 1-7/8")

4шт.

17

A57470

WASHER

- flat (13/32 x 11/16" x 16 ga.)

4шт.

18

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

19

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

20

A58693

GEAR

- pump drive

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

22

92-6

LOCK WASHER,3/8"

3шт.

23

A62542

GEAR

ASSY. - idler (Replaces A58686)

1шт.

25

A58690

SHAFT

- idler gear

1шт.

26

A58691

WASHER

- thrust, idler shaft

1шт.

27

A58692

PLATE

- thrust, idler shaft

1шт.

28

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

1шт.

30

A58609

COVER

ASSY. - timing gear, Includes: Ref. 31

1шт.

31

A58611

PIN

- dowel, cover

1шт.

32

A57342

SEAL

- crankshaft front

1шт.

33

A58612

GASKET

-, Serial Range: cover-block

1шт.

34

A21140

PLUG

- timing window

1шт.

35

A58613

SEALING WASHER

GASKET - plug, timing window

1шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

37

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C.

2шт.

38

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C. hex.

3шт.

39

92-6

LOCK WASHER,3/8"

9шт.

40

A19774

BUSHING

SPACER - alternator pry point

1шт.

50

A61053

COVER

- fuel pump gear (Replaces A58614)

1шт.

51

A58615

GASKET

- cover, pump gear

1шт.

52

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" N.C. hex.

2шт.

53

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

54

92-6

LOCK WASHER,3/8"

4шт.

55

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

56

92-5

LOCK WASHER,5/16"

1шт.

57

A38492

BRACKET

- alternator mounting

1шт.

58

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bracket to cover Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

59

92-6

LOCK WASHER,3/8"

2шт.
