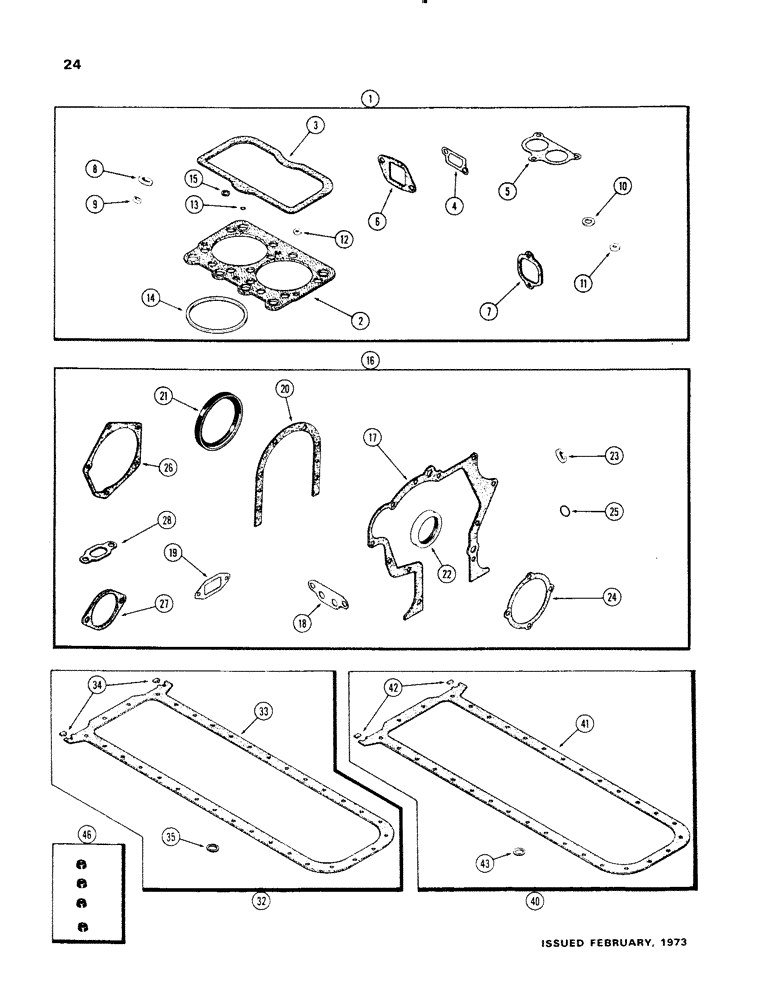

Запчасти Case 1150 (024) - ENGINE GASKET KITS, (401B) DIESEL ENGINE (01) - ENGINE

1

A42890

VALVE

GRIND - GASKET KIT, Includes: Ref. 2 - 15

1шт.

For complete engine overhaul Order 1-A42890, 1-A42096 & 1-A43006 or 1-A41846

1шт.

2

A62215

GASKET

- cylinder head to block (w/insert)

3шт.

3

A65734

CYLINDER HEAD GASKET

- cylinder head cover

3шт.

4

A58637

MANIFOLD GASKET

- water manifold

3шт.

5

A58639

GASKET

- thermostat housing

1шт.

6

A58662

MANIFOLD GASKET

- intake manifold

6шт.

7

A58895

GASKET

- exhaust manifold

6шт.

8

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injector nozzle

6шт.

9

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, injector nozzle

6шт.

10

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube (11/16 x 1-1/4 x 1/4")

3шт.

11

A23684

GASKET

GASKET - cover studs (15/32 x 7/8 x 1/8" rubber)

6шт.

12

A34133

GASKET

- breather screw (9/32 x 1/2 x 3/64" fiber)

3шт.

13

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube (3/16 x 5/16 x 1/16")

3шт.

14

A34686

RING

- fire, cylinder head (Standard)

6шт.

15

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- intake & exhaust valve stem

12шт.

16

A42096

GASKET

CYLINDER BLOCK GASKET KIT, Includes: Ref. 17 - 28

1шт.

For complete engine overhaul Order 1-A42890, 1-A42096 & 1-A43006 or 1-A41846

1шт.

17

A58612

GASKET

- timing gear cover

1шт.

18

A58756

OIL PAN GASKET SET

- oil filter base (Not used this unit)

1шт.

19

A58649

GASKET

- water pump body (Replaced A58646)

1шт.

20

A32830

GASKET

- rear oil seal retainer

1шт.

21

A62050

OIL SEAL

- oil, crankshaft, rear (4-3/4 x 5-3/4 x 1/2")

1шт.

22

A62049

OIL SEAL

- oil, crankshaft, front (2-5/8 x 3-5/8 x 1/2")

1шт.

23

A58613

SEALING WASHER

GASKET - timing window plug

1шт.

24

A58646

GASKET

- water pump body to block (Replaced A58649)

1шт.

25

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - oil pump (15/16 x 1-1/8 x 3/32")

3шт.

26

A58615

GASKET

- fuel pump cover

1шт.

27

A58617

GASKET

- auxiliary drive cover

1шт.

28

A58670

GASKET

- oil cooler water opening

1шт.

32

A43006

GASKET KIT

- oil pan, Includes: Ref. 33 - 35, Start Serial: 2322106

1шт.

For complete engine overhaul Order 1-A42890, 1-A42096 & 1-A43006 or 1-A41846

1шт.

33

NSS

NOT SOLD SEPARAT

GASKET - oil pan

1шт.

34

A62402

GASKET

- oil pan corners

2шт.

35

A58933

OIL PAN GASKET SET

- drain plug (7/8 x 1-1/4 x 5/64" nylon)

1шт.

35

A58608

GASKET

- drain plug (3/4 x 1 x 5/64" nylon)

1шт.

40

A41846

KIT

OIL PAN GASKET KIT, Includes: Ref. 41 - 43, Serial Range: -2322106

1шт.

For complete engine overhaul Order 1-A42890, 1-A42096 & 1-A43006 or 1-A41846

1шт.

41

NSS

NOT SOLD SEPARAT

GASKET - oil pan

1шт.

42

A33017

OIL PAN GASKET SET

- oil pan corners

2шт.

43

A58933

OIL PAN GASKET SET

- drain plug (7/8 x 1-1/4 x 5/64" nylon)

1шт.

43

A58608

GASKET

- drain plug (3/4 x 1 x 5/64" nylon)

1шт.

46

M20614

SEAL KIT

VALVE SEAL KIT - (Set of 4)

3шт.
