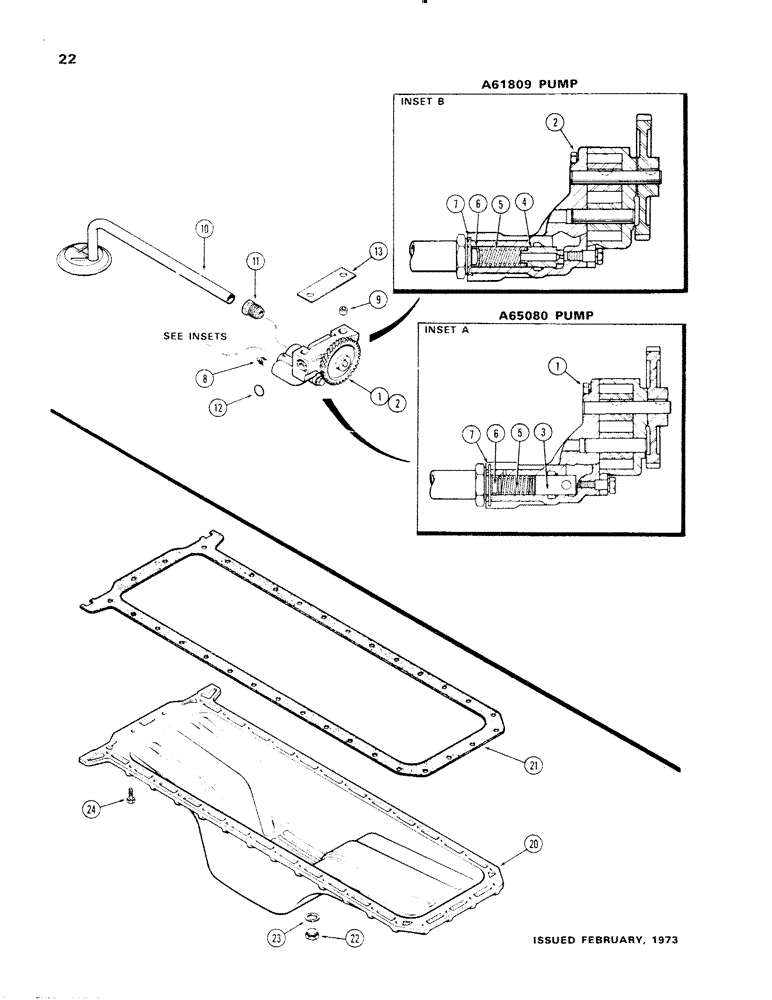

Запчасти Case 1150 (022) - OIL PUMP, (401B) DIESEL ENGINE (01) - ENGINE

1

A65080

PUMP

ASSY. - oil (See Inset A), Includes: Ref. 3 - 9

1шт.

2

A61809

PUMP

ASSY. - oil (See Inset B), Includes: Ref. 3 - 9

1шт.

3

A65083

VALVE

- relief (Used w/A65080 pump) (See Inset A)

1шт.

4

A34992

PISTON

VALVE - relief (Used w/A61809 pump) (See Inset B)

1шт.

5

A59111

SPRING

- relief valve

1шт.

6

41-1011

PLUG,Cup, 11/16"

- relief valve (45/64" cup type)

1шт.

7

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

8

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2" P.T., hex. sckt. hd.

1шт.

9

A58915

SLEEVE

- dowel, pump locating

1шт.

10

A60506

SCREEN

TUBE ASSY. - oil suction (includes screen)

1шт.

11

222-510

TUBE NUT,1 1/4"-18

NUT - 1" tube

1шт.

12

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

"O" RING - oil port (15/16 x 1-1/8 x 3/32")

1шт.

13

A58859

SHIM,.005" Thk

Oil pump to brg. cap .005" Thk

1шт.

20

A60502

PAN

- oil

1шт.

20

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A43006 or A41846 from figure 24).

1шт.

22

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

23

A58933

OIL PAN GASKET SET

- drain plug, oil pan

1шт.

24

193-527

WASHER,Hex, 3/8" - 16 x 1 1/4"

BOLT - 3/8 x 1-1/4" N.C. (spec. incl. lockwasher), oil pan

30шт.

24

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - 3/8 x 1-1/2" N.C. (spec. incl. lockwasher), oil pan

2шт.
