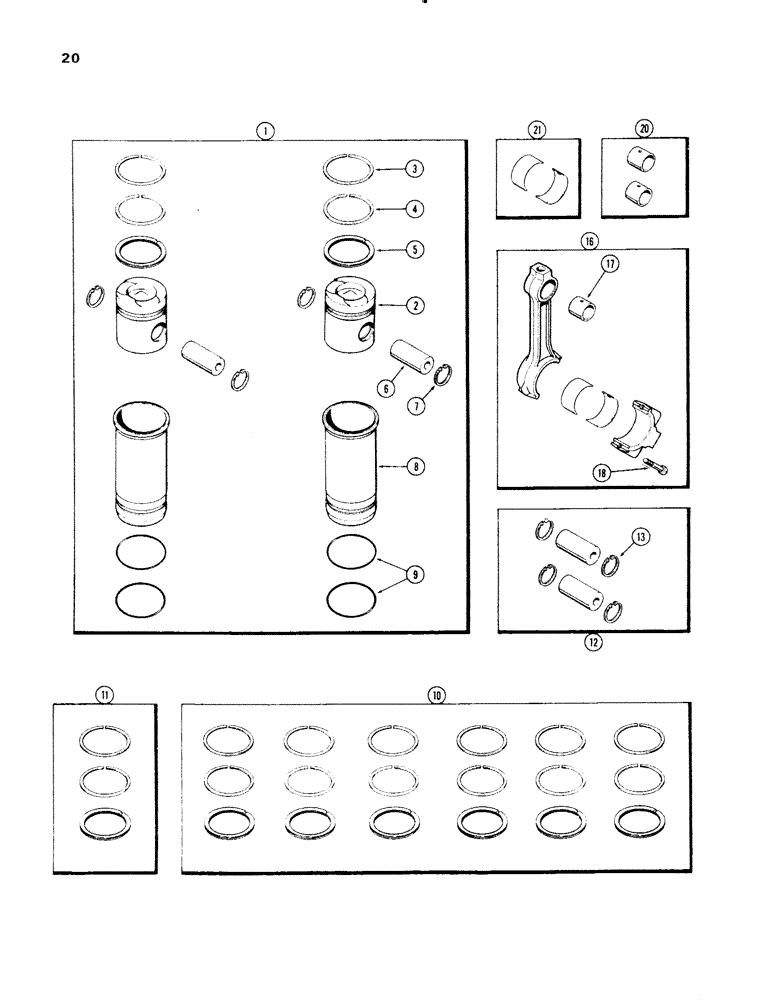

Запчасти Case 1150 (020) - PISTON ASSEMBLY AND CONNECTING RODS, (401B) DIESEL ENGINE (01) - ENGINE

1

A43116

SLEEVE

PISTON ASSY. - (Matched set of 2) (Replaces A41964 & A43106), Includes: Ref. 2 - 9

3шт.

2

A65127

PISTON

- cylinder (4-1/8" dia.) (Replaces A58882 & A64874)

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, 1st groove (Order ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, 2nd groove (Order ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (Order ref. 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 12)

2шт.

7

T28550

SNAP RING,1.50", Int, #150

RING - snap, , piston pin, see ref.12 1.50", Int, #150

4шт.

8

A58883

SLEEVE

- cylinder (4-1/8" bore)

2шт.

9

A23315

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

"O" RING - sleeve packing (4-1/4 x 4-1/2 x 1/8")

4шт.

10

A41969

RING

KIT - piston re-ring (Set of 6), Includes: Ref. 11

1шт.

11

A41967

RING, PISTON

RING KIT - piston re-ring (Set of 1)

6шт.

12

A24517

PIN

KIT - piston (incl. snap rings) (Set of 2)

3шт.

13

T28550

SNAP RING,1.50", Int, #150

RING - snap, 1.50", Int, #150

4шт.

16

A62952

ROD

ASSY. - connecting, Includes: Ref. 17 and 18, Start Serial: 2331513

6шт.

16

A58862

ROD

ASSY. - connecting, Includes: Ref. 17 and 18, Serial Range: -2331513

6шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 20)

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - rod cap, 1/2 x 2-3/16" N.F. 12 pt. cap (Used w/A62952 conn. rod) (Replaces A62184)

2шт.

18

A27848

SPECIAL BOLT,1/2" - 20 x 2 3/16"

- rod cap (1/2 x 2-3/16" N.F.) (Used w/A58862 conn. rod)

2шт.

20

A21722

BUSHING

KIT - piston pin (Set of 2)

3шт.

21

A43173

BEARING LINER

LINERS - bearing, conn. rod (Std.) (Replaces A42493)

6шт.

21

A42478

BEARING LINER

LINERS - bearing, conn. rod (.002" undersize)

6шт.

21

A42479

BEARING LINER

LINERS - bearing, conn. rod (.010" undersize)

6шт.

21

A42480

BEARING LINER

LINERS - bearing, conn. rod (.020" undersize)

6шт.

21

A42481

BEARING LINER

LINERS - bearing, conn. rod (.030" undersize)

6шт.
