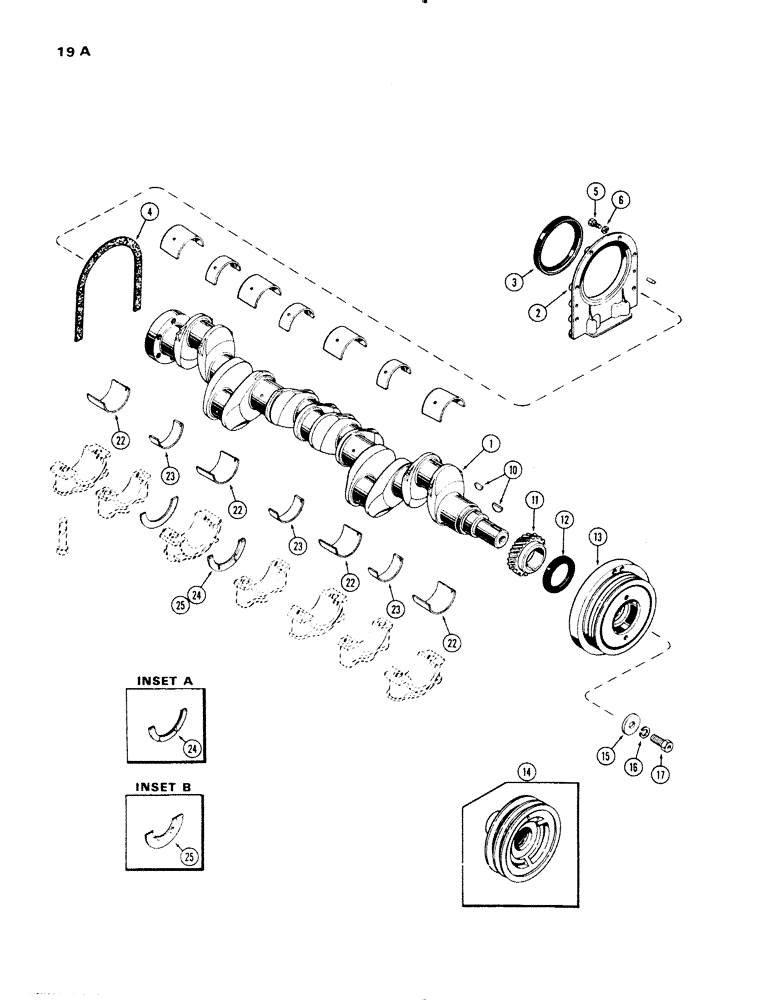

Запчасти Case 1150 (019A) - CRANKSHAFT, (401B) DIESEL ENGINE (01) - ENGINE

1

A58860

CRANKSHAFT

1шт.

2

A57457

RETAINER

- rear oil seal

1шт.

3

A62050

OIL SEAL

- oil, rear (4-3/4 x 5-3/4 x 1/2") (Replaced A23085)

1шт.

4

A32830

GASKET

-, Serial Range: retainer-block

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

6

92-6

LOCK WASHER,3/8"

6шт.

10

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear & pulley #C, 5/16" x 1 1/8", HT

2шт.

11

A58573

GEAR

- crankshaft

1шт.

12

A62049

OIL SEAL

- oil, front (2-5/8 x 3-5/8 x 1/2") (Replaces A57342)

1шт.

13

A61669

PULLEY

- fan drive (Loader Models)

1шт.

14

A61163

PULLEY

- fan drive (Dozer Models)

1шт.

15

A27903

WASHER

- pulley (21/32 x 2-1/8 x 1/4")

1шт.

16

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

17

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Drive pulley Hex, 5/8"-18 x 1 1/2", G5

1шт.

22

A43163

BEARING LINER

LINERS - wide, crankshaft brg. (Std.) (Replaces A42490)

4шт.

22

A42486

LINING

LINERS - wide, crankshaft brg. (.002" undersize)

4шт.

22

A42487

LINER

S - wide, crankshaft brg. (.010" undersize)

4шт.

22

A42488

LINER

S - wide, crankshaft brg. (.020" undersize)

4шт.

22

A42489

BEARING

LINERS - wide, crankshaft brg. (.030" undersize)

4шт.

23

A43158

BEARING LINER

LINERS - narrow, crankshaft brg. (Std.) (Replaces A42492)

3шт.

23

A42482

LINING

LINERS - narrow, crankshaft brg. (.002" undersize)

3шт.

23

A42483

LINING

LINERS - narrow, crankshaft brg. (.010" undersize)

3шт.

23

A42484

KIT

LINERS - narrow, crankshaft brg. (.020" undersize)

3шт.

23

A42485

LINING

LINERS - narrow, crankshaft brg. (.030" undersize)

3шт.

24

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

WASHER - thrust, crankshaft, std. (aluminum) (.185 thick) (See Inset A)

2шт.

24

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

WASHER - thrust, crankshaft (.006" oversize) (aluminum) (See Inset A)

2шт.

Cartridge assembly is P/N S61961.

1шт.

25

A58786

WASHER

- thrust, crankshaft, standard (bronze) (See Inset B) (Order A62573)

2шт.

25

A42446

WASHER

- thrust, crankshaft (.006" oversize) (bronze) (See Inset B) (Order A42932)

2шт.
