Запчасти Case 1150 (018) - FLYWHEEL AND HOUSING, (401B) DIESEL ENGINE (01) - ENGINE

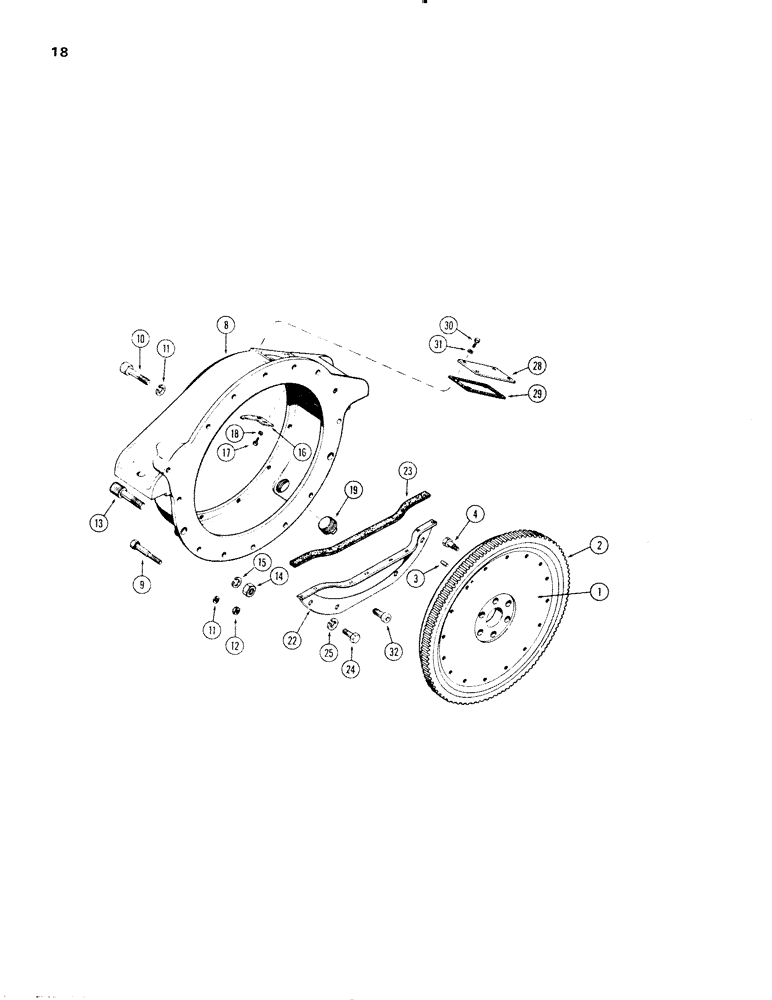

Схема запчастей Case 1150 - (018) - FLYWHEEL AND HOUSING, (401B) DIESEL ENGINE (01) - ENGINE
3
18
15
11
28
19
13
30
23
16
1
11
32
31
14
22
10
12
8
2
17
24
29
9
4
25

Артикул

Название

Примечание

Количество

1

A60508

FLYWHEEL

ASSY., Incl. Ref. 2 and 3

1шт.

2

A27920

GEAR

Ring (137T)

1шт.

3

A27840

PIN

Dowel

1шт.

4

25331R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

Flywheel to crankshaft

6шт.

8

A33992

SPARE PART Flywheel

1шт.

9

A61040

STEP BOLT

Dowel, housing to block (1/2 x 3" N.C.)

1шт.

9

A61041

STEP BOLT

Dowel, housing to block (1/2 x 2-7/16" N.C.)

1шт.

10

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

2шт.

10

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

3шт.

10

13-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

1шт.

11

92-8

LOCK WASHER,1/2"

8шт.

12

25-108

NUT,1/2"-13, G5

4шт.

13

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

2шт.

14

25-1012

NUT,3/4"-10, G5

2шт.

15

92-12

LOCK WASHER,3/4"

2шт.

16

A22586

INDICATOR

POINTER - timing, flywheel

1шт.

17

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

18

92-4

LOCK WASHER,1/4"

1шт.

19

221-17

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

Pipe

1шт.

22

A64462

GUARD

PLATE - cover, timing hole (Replaced A22584)

1шт.

23

A57144

GASKET

Cover (Replaced A22585)

1шт.

24

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

25

92-5

LOCK WASHER,5/16"

4шт.

28

A22584

COVER

SHIELD - dust, flywheel (Replaces A57143) (Replaced A64462)

1шт.

29

A22585

GASKET

Shield (Replaced A57144)

1шт.

30

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

4шт.

31

92-8

LOCK WASHER,1/2"

4шт.

32

176-481

SCREW - set, 1/2 x 1/2" N.C. socket hd.

1шт.

Выбрано товаров: 28
