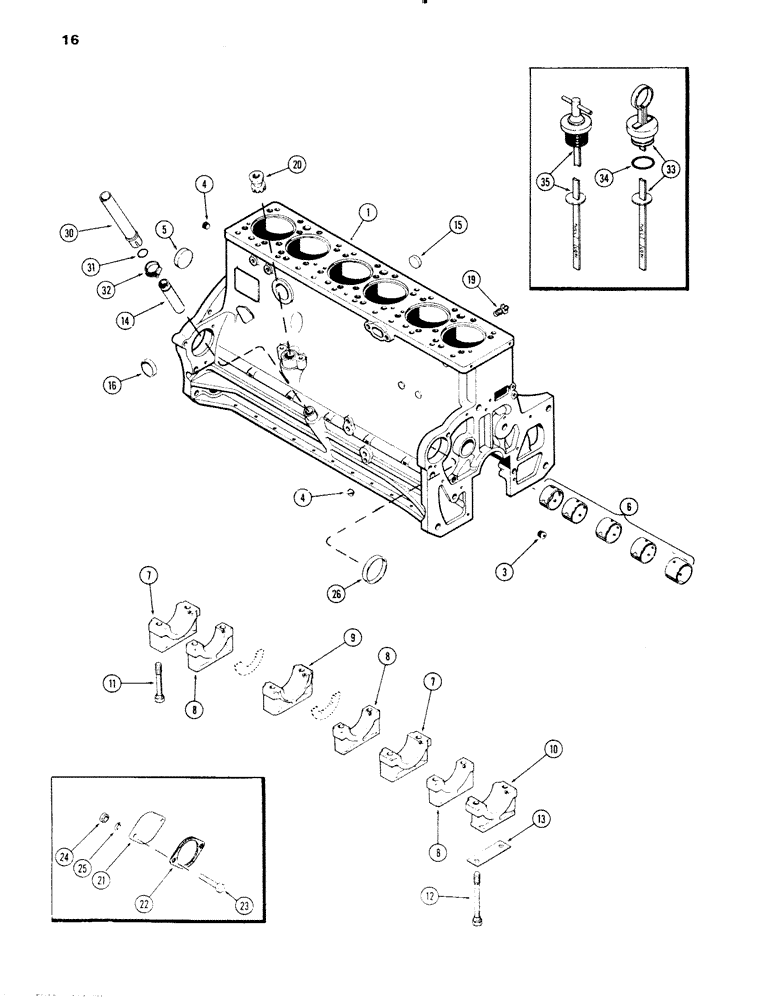

Запчасти Case 1150 (016) - CYLINDER BLOCK ASSEMBLY, (401B) DIESEL ENGINE (01) - ENGINE

A41962

BLOCK

ASSY. - short (includes stripped block pistons, conn. rods, crankshaft & brgs., camshaft, lifters & timing gears) (Casting #A58511), Includes: Ref. 1 - 16

1шт.

1

A41963

SKELETON ENGINE

BLOCK ASSY. - stripped (Casting #A58511), Includes: Ref. 3 - 16

1шт.

3

221-1843

PLUG

- pipe, 3/8" socket hd.

4шт.

4

221-41

PLUG

- pipe, 1/8" slotted

6шт.

5

A24361

PLUG

- camshaft hole (2-3/8" cup type)

1шт.

6

A23544

BUSHING

KIT - camshaft

1шт.

7

A58783

BEARING CAP

CAP - wide main bearing

2шт.

8

A58784

BEARING CAP

CAP - narrow main bearing

3шт.

9

A58785

BEARING CAP

CAP - thrust, main bearing

1шт.

10

A58782

CAP

- front main bearing

1шт.

11

A58566

STEP BOLT

BOLT - bearing cap (5/8 x 4-1/2" N.C. spec.)

12шт.

12

A58567

STEP BOLT

BOLT - front brg. cap & oil pump (5/8 x 6-13/16" N.C. spec.)

2шт.

13

A58859

SHIM,.005" Thk

Oil pump .005" Thk

1шт.

14

A34540

TUBE

SOCKET - oil filler & dipstick

1шт.

15

A58568

PLUG,Cup, 1 3/8", Stainless

- water gallery (1-3/8 cup type)

3шт.

16

A58569

PLUG,Cup, 2", Stainless

CUP - heater hole (2" cup type)

1шт.

19

A23656

COCK, DRAIN

VALVE - drain, water

1шт.

20

A34266

DRIVE

ASSY. - tachometer

1шт.

21

A58732

COVER

- pump mounting (Order 41-1052) (See Ref. 26)

1шт.

22

A58617

GASKET

- cover

1шт.

23

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 X 3-1/2" N.C. hex.

2шт.

24

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

41-1052

PLUG,Cup, 3 1/4"

- aux. pump opening

1шт.

30

A65778

TUBE

EXTENSION - oil filler tube (Replaces A57940)

1шт.

31

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - tube seal (1-1/8 x 1-3/8 x 1/8")

1шт.

32

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - extension, 1-3/16 to 1-3/4"

1шт.

33

A61841

DIPSTICK

- oil level (w/"O" rings) (Order A22589), Includes: Ref. 34 and 35

1шт.

34

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

"O" RING - seal (3/4 x 1 x 9/64")

2шт.

35

A22589

ELECTRICAL GAUGE

DIPSTICK ASSY. - oil level (w/turn-tite fitting)

1шт.
