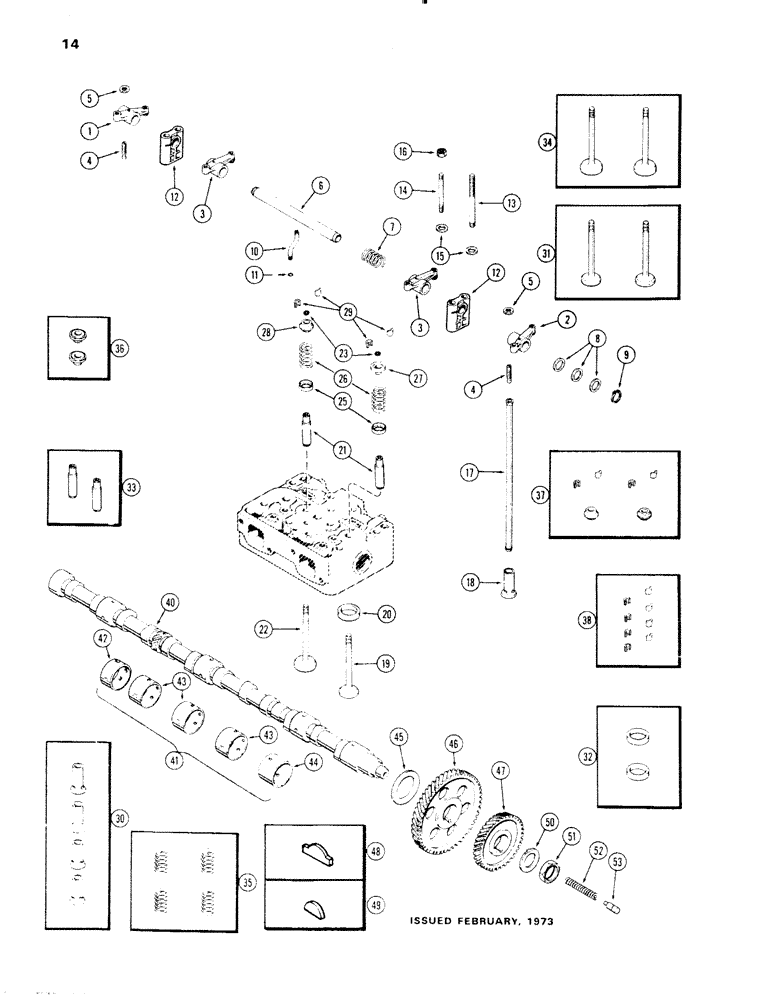

Запчасти Case 1150 (014) - VALVE MECHANISM AND CAMSHAFT, (401B) DIESEL ENGINE (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
58655
ARM - rocker, exhaust valve (1st, 3rd & 5th cyl.)
3шт.
2
A58656
ARM
- rocker, exhaust valve (2nd, 4th & 6th cyl.)
3шт.
3
A58654
ARM
- rocker, intake valve
6шт.
4
A21105
ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"
SCREW - adjusting, rocker arm
12шт.
5
25-156
JAM NUT,Jam, 3/8"-24, G5
- jam, 3/8" N.F. hex.
12шт.
6
A57532
SHAFT
- rocker arm
3шт.
7
A27877
SPRING
- rocker arm shaft
3шт.
8
A27878
WASHER
- rocker arm shaft (29/32 x 1-5/16 x 1/32")
1шт.
9
B18206
SNAP RING,#87, Ext
Ring, Snap, , rocker arm shaft #87, Ext
6шт.
10
A58657
TUBE
- oil, rocker arm shaft
3шт.
11
A27880
O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro
"O" RING - oil tube (3/16 x 5/16 x 1/16")
3шт.
12
A61128
BRACKET
- rocker arm shaft
6шт.
13
A60885
STUD
- bracket & cover (7/16" N.C. x 6")
6шт.
14
A58659
STUD
- rocker arm bracket (7/16" N.C. x 4-5/16")
6шт.
15
195-29
WASHER,7/16"
- plain, 7/16"
12шт.
16
25-107
NUT,7/16"-14, G5
- stud, 7/16" N.C.
12шт.
17
A58596
ROD
- push
12шт.
18
NSS
NOT SOLD SEPARAT
LIFTER - push rod (Order ref. 30)
12шт.
19
NSS
NOT SOLD SEPARAT
VALVE - exhaust (order ref. 31)
6шт.
20
NSS
NOT SOLD SEPARAT
INSERT - exhaust valve seat (Order ref. 32)
6шт.
21
NSS
NOT SOLD SEPARAT
GUIDE - valve stem (Order ref. 33)
12шт.
22
NSS
NOT SOLD SEPARAT
VALVE - intake (Order ref. 34)
6шт.
23
A58628
SEAL,8mm ID x 13.77mm OD x 2.16mm Thk
- valve stem
12шт.
25
A58623
SEAT
- valve spring
12шт.
26
NSS
NOT SOLD SEPARAT
SPRING - valve (Order ref. 35)
12шт.
27
NSS
NOT SOLD SEPARAT
ROTO CAP - exhaust valve (Order ref. 36)
6шт.
28
NSS
NOT SOLD SEPARAT
RETAINER - intake valve (Order ref. 37)
6шт.
29
NSS
NOT SOLD SEPARAT
LOCK - valve spring (Order ref. 38)
24шт.
30
A21653
KIT
LIFTER KIT - push rod (Std. set of 4)
3шт.
30
A22463
KIT
LIFTRE KIT - push rod (.010" oversize set of 4)
3шт.
31
A41965
VALVE
KIT - exhaust (Set of 2)
3шт.
32
A41985
INSERT
KIT - exhaust valve seat (Set of 2)
3шт.
33
A41781
GUIDE
KIT - valve stem (Set of 2)
6шт.
34
A41966
VALVE
KIT - intake (Set of 2)
3шт.
35
A42895
SPRING
KIT - valve (Set of 4)
3шт.
36
A57433
COIL
ROTO COIL KIT - exhaust valve (Set of 2)
3шт.
37
A21657
LOCK
RETAINER KIT - intake valve (Set of 2 w/locks)
3шт.
38
A40352
LOCK
KIT - valve spring (Set of 8)
3шт.
40
A62734
CAMSHAFT
, Start Serial: 2323279
1шт.
40
A58591
CAMSHAFT
- (Order 1 - A62734 camshaft & 1- 126-227 key), Serial Range: -2323279
1шт.
41
A23544
BUSHING
KIT - camshaft (Set of 5), Includes: Ref. 42 - 44
1шт.
42
NSS
NOT SOLD SEPARAT
BUSHING - rear (1-5/32" wide)
1шт.
43
NSS
NOT SOLD SEPARAT
BUSHING - intermediate (1-7/16" wide)
3шт.
44
NSS
NOT SOLD SEPARAT
BUSHING - front (1-21/32" wide)
1шт.
45
A21017
WASHER
- thrust, camshaft
1шт.
46
A58592
GEAR
- timing, camshaft
1шт.
47
A58593
GEAR
- idler, camshaft
1шт.
48
126-227
WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"
KEY - hi-pro (used w/A62734 camshaft)
1шт.
49
126-29
WOODRUFF KEY,#C, 5/16" x 1 1/8"
Used w/A58591 camshaft #C, 5/16" x 1 1/8"
1шт.
50
A58594
LOCK WASHER
- lock, camshaft nut
1шт.
51
A58595
NUT
- camshaft
1шт.
52
CASA27853
SPRING
- plunger, camshaft thrust
1шт.
53
A27852
PLUNGER
- thrust, camshaft
1шт.
Выбрано товаров: 53
