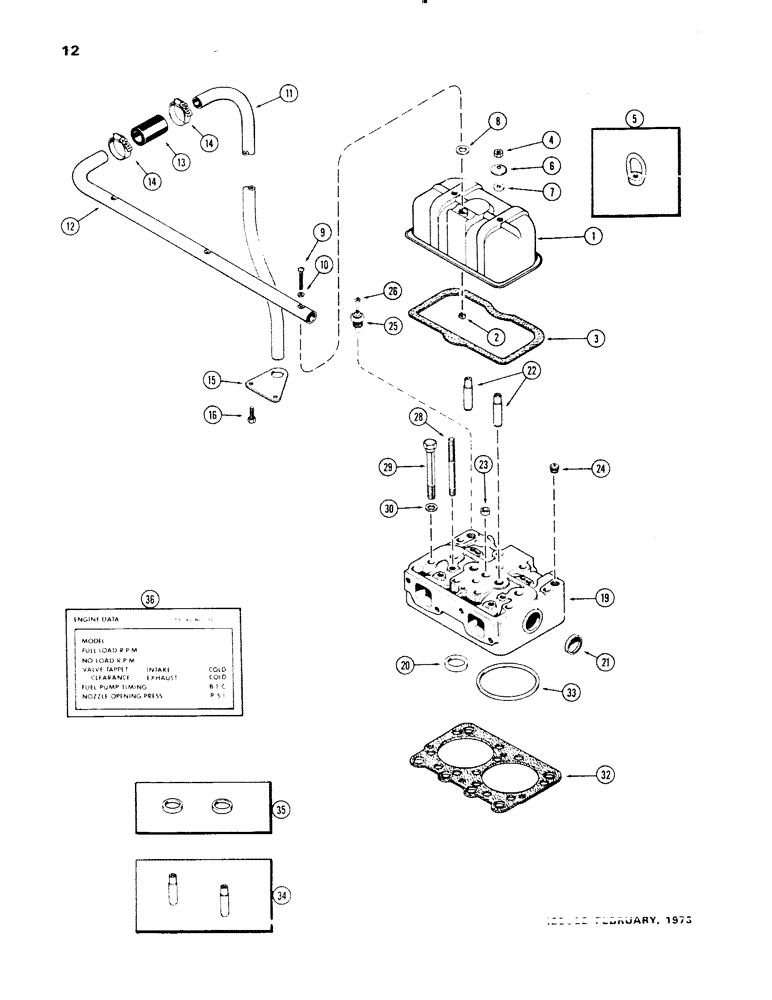

Запчасти Case 1150 (012) - CYLINDER HEAD AND COVER, (401B) DIESEL ENGINE (01) - ENGINE

1

A58929

COVER

ASSY. - cylinder head, Includes: Ref. 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4" N.C. Tinnerman

1шт.

3

A65734

CYLINDER HEAD GASKET

- cover to head (Replaces A58926)

3шт.

4

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

4шт.

5

A60567

EYE

- lift, cylinder head

2шт.

6

A23683

WASHER

- dished, cover nut

6шт.

7

A23684

GASKET

GASKET - cover stud (15/32 x 7/8 x 1/8" rubber)

6шт.

8

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- tube, lower (11/16 x 1-1/4 x 1/4")

3шт.

9

75-440

SCREW

- breather tube (1/4 x 2-1/2" N.C. rd. hd.

3шт.

10

A34133

GASKET

- tube, upper (9/32 x 1/2 x 3/64" fiber)

3шт.

11

A34778

TUBE

- breather, upper section

1шт.

12

A62077

TUBE

- breather, lower section

1шт.

13

A34777

HOSE

- breather tube sect. (1-1/8" I.D. x 3")

1шт.

14

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, (1-3/16" to 1-3/4")

2шт.

15

A58734

BRACKET

- lower breather tube

1шт.

16

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - 3/8 x 1-1/2" N.C. hex. sems

2шт.

19

A58885

CYLINDER

HEAD ASSY. - cylinder (Casting No. A58523), Includes: Ref. 20 - 23

3шт.

20

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 35)

2шт.

21

A34124

PLUG,Cup, 1 5/8", Stainless

- end, 1-5/8" cup type

2шт.

22

NSS

NOT SOLD SEPARAT

GUIDES - valve stem (Order ref. 34)

4шт.

23

A58620

PLUG,Cup, 3/4", Stainless

- top, 3/4" cup type

1шт.

24

221-1843

PLUG

- 3/8" P.T. socket hd.

5шт.

25

A61787

TRANSMITTER

UNIT - sending, engine temperature

1шт.

26

129-661

NUT

- #10-32 N.F. (brass)

1шт.

28

A60885

STUD

- cover & rocker arm brkt. (7/16" N.C. x 6")

6шт.

29

A62732

STEP BOLT

BOLT - head to block (5/8 x 5-5/8" N.C. hex.)

30шт.

30

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - head bolt (21/32" x 1" x 3/16")

30шт.

32

A62215

GASKET

- cylinder head

3шт.

33

A34686

RING

- fire, cyl. head (Std.)

6шт.

33

A34688

RING

- fire, cyl. head (oversize) (blue stripe code)

6шт.

34

A41781

GUIDE

KIT - valve stem (Set of 2)

3шт.

35

A41985

INSERT

KIT - valve seat (Set of 2)

3шт.

36

321-2325

DECAL - engine data (used with A62809 inj. nozzle) (Loader Models), Start Serial: 2504029

1шт.

36

321-2304

DECAL - engine data (used with A62809 inj. nozzle) (Dozer Models), Start Serial: 2504029

1шт.

36

321-1384

DECAL

- engine data (used with A58694 inj. nozzle) (Loader Models), Serial Range: -2504029

1шт.

36

321-1383

DECAL - engine data (used with A58694 inj. nozzles) (Dozer Models, Serial Range: -2504029

1шт.
