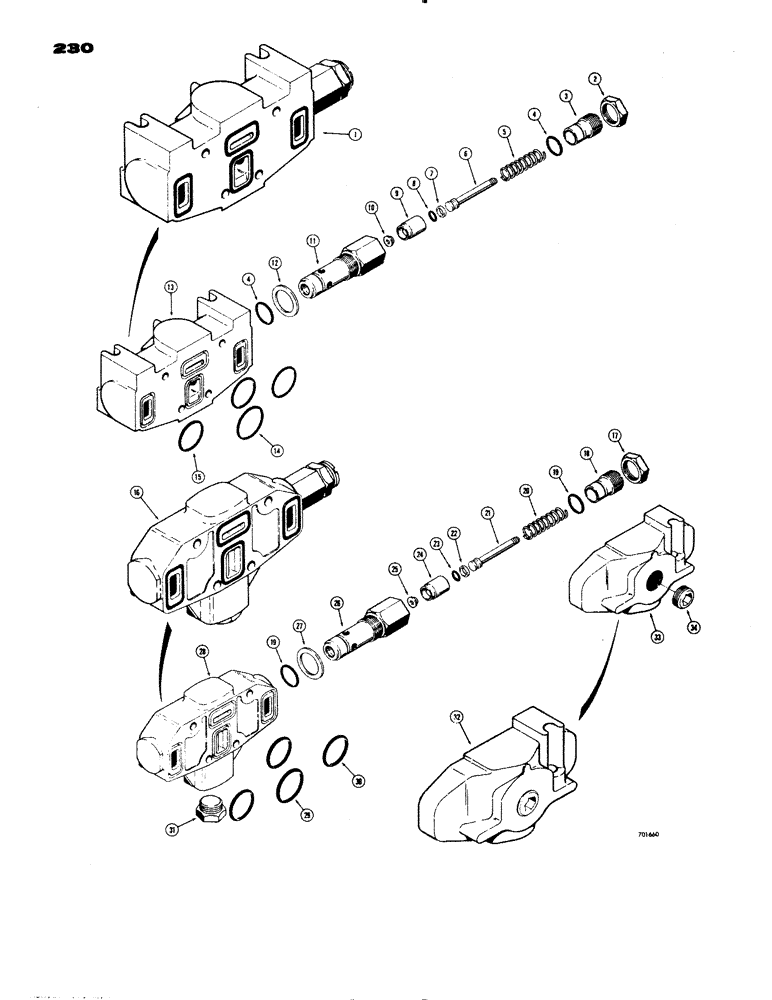

Запчасти Case 1150 (230) - D32112 VALVE INLET SECTION (07) - HYDRAULIC SYSTEM

1

D32112

NO LONGER SERVICED

INLET SECTION - equipment control valve, Includes: Ref. 2 - 15

1шт.

D32126

FILTER

CARTRIDGE - relief, Includes: Ref. 2 - 12

1шт.

2

R12507

LOCK NUT

- lock, adjusting screw

1шт.

3

R21364

SCREW

- spring adjusting

1шт.

4

D31413

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

SEAL - "O" ring, 7/8" I.D. x 1-1/8" O.D.

2шт.

5

D32476

SPRING

- compression

1шт.

6

R16125

PLUNGER

- displacement

1шт.

7

R12509

RING

- backup

1шт.

8

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

SEAL - "O" ring, 3/8" I.D. x 9/16" O.D.

1шт.

9

R12510

SEAT

- floating

1шт.

10

R16123

WASHER, THRUST

SNUBBER - check valve

1шт.

11

D39700

KIT

SHELL ASSEMBLY - cartridge

1шт.

12

23146

WASHER

- gasket

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - inlet section

1шт.

14

D32127

O-RING

SEAL - "O" ring, 1-13/16" I.D. x 2" O.D.

1шт.

15

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O" ring, 1-9/16" I.D. x 1-3/4" O.D.

3шт.

16

D50854

INLET SECTION - equipment control valve, Includes: Ref. 17 - 31

1шт.

D32126

FILTER

CARTRIDGE - relief, D50854 valve inlet section, Includes: Ref. 17 - 27

1шт.

17

R12507

LOCK NUT

- lock, adjusting screw, D50854 valve inlet section

1шт.

18

R21364

SCREW

- spring adjusting, D50854 valve inlet section

1шт.

19

D31413

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

SEAL - "O" ring, 7/8" I.D. x 1-1/8" O.D., D50854 valve inlet section

2шт.

20

D32476

SPRING

- compression, D50854 valve inlet section

1шт.

21

R16125

PLUNGER

- displacement, D50854 valve inlet section

1шт.

22

R12509

RING

- backup, D50854 valve inlet section

1шт.

23

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

SEAL - "O" ring, 3/8" I.D. x 9/16" O.D., D50854 valve inlet section

1шт.

24

R12510

SEAT

- floating, D50854 valve inlet section

1шт.

25

R16123

WASHER, THRUST

SNUBBER - check valve, D50854 valve inlet section

1шт.

26

D39700

KIT

SHELL ASSEMBLY - cartridge, D50854 valve inlet section

1шт.

27

23146

WASHER

- gasket, D50854 valve inlet section

1шт.

28

NSS

NOT SOLD SEPARAT

HOUSING - inlet section, D50854 valve

1шт.

29

D32127

O-RING

SEAL - "O" ring, 1-13/16" I.D. x 2" O.D., D50854 valve inlet section

1шт.

30

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O" ring, 1-9/16" I.D. x 1-3/4" O.D., D50854 valve inlet section

3шт.

31

221-664

PLUG,Hex Hd, 1/2"-14

- pipe, hex. head (1/2" NPT), D50854 valve inlet section

1шт.

32

D38360

VALVE

OUTLET SECTION - equipment control valve, Includes: Ref. 33 and 34, D50854, inlet

1шт.

33

NSS

NOT SOLD SEPARAT

HOUSING - outlet section, D50854 valve inlet

1шт.

34

221-846

PLUG,Hex Soc, 1"-11 1/2

- pipe, hex. socket head (1" NPT), D50854 valve inlet section

1шт.
