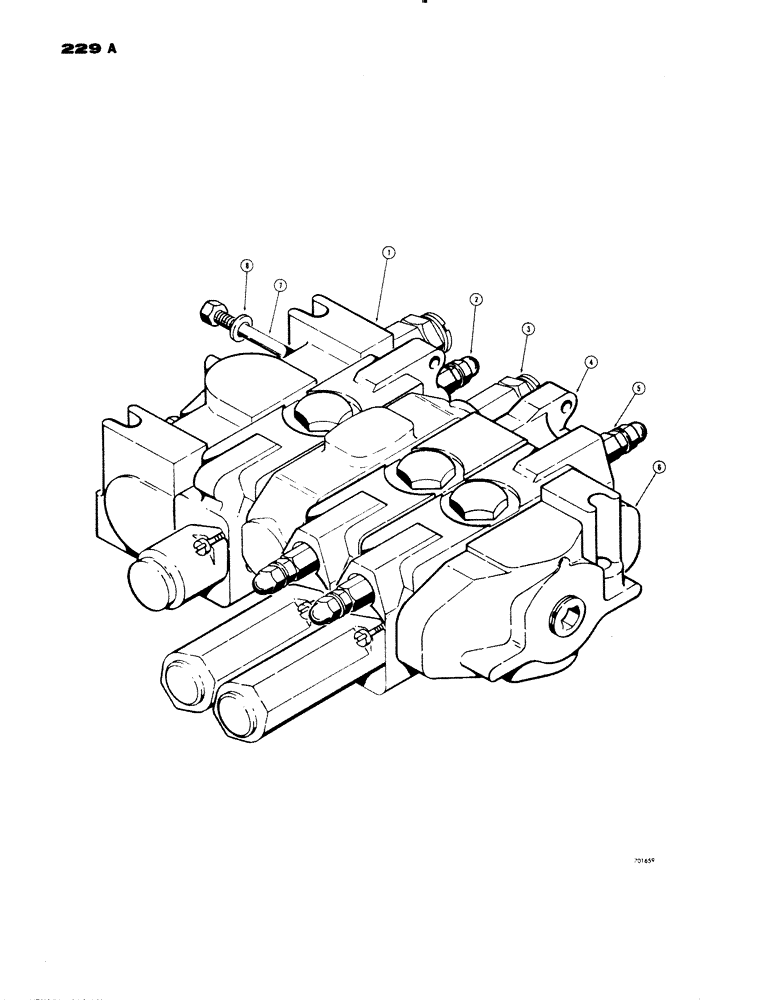

Запчасти Case 1150 (229A) - FELLER BUNCHER CONTROL VALVE (3 SPOOL) (07) - HYDRAULIC SYSTEM

D50853

VALVE - feller buncher, 3 spool, Includes: Ref. 1 - 8

1шт.

1

D32112

NO LONGER SERVICED

INLET SECTION - valve (Parts list figure 230)

1шт.

2

D32123

KNIFE SECTION

SHEAR AND CLAMP SECTION - valve (Parts list figure 234)

1шт.

3

D50854

INLET SECTION - valve (Parts list figure 230)

1шт.

4

D38365

KNIFE SECTION

LIFT SECTION - valve (Parts list figure 232)

1шт.

5

D49980

X

TILT SECTION - valve (Parts list figure 240)

1шт.

6

D38360

VALVE

OUTLET SECTION - valve (Parts list figure 230)

1шт.

7

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

8

D36476

STUD

ASSEMBLY - valve

4шт.
