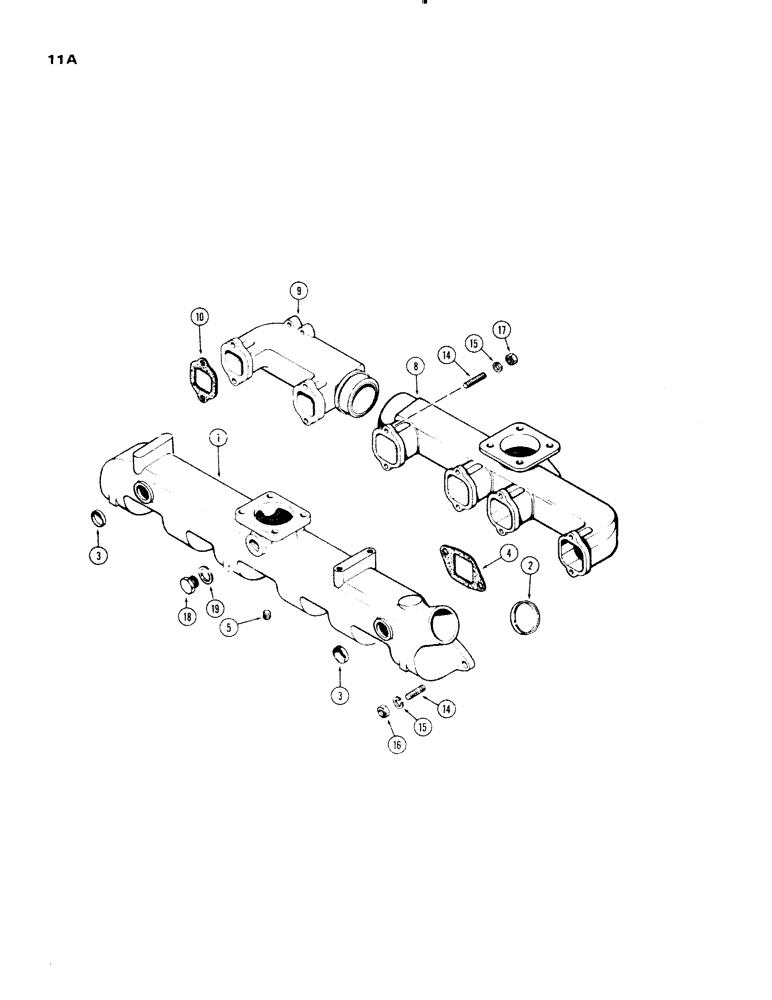

Запчасти Case 1150 (011A) - INTAKE AND EXHAUST MANIFOLDS, (401B) DIESEL ENGINE (01) - ENGINE

1

A58660

MANIFOLD

ASSY. - intake, Includes: Ref. 2 and 3

1шт.

2

41-1042

PLUG,Cup, 2 5/8"

- 2-5/8" cup type

1шт.

3

41-1020

PLUG,Cup, 1 1/4"

- 1-1/4" cup type

2шт.

4

A58662

MANIFOLD GASKET

- intake manifold

6шт.

5

221-1840

PLUG

- intake manifold, 1/8" P.T. sckt. hd.

1шт.

8

A64966

MANIFOLD

- exhaust, front section

1шт.

Ref. 8 There is no Gasket used in the area of Exhaust.

1шт.

9

A58664

MANIFOLD

- exhaust, rear section

1шт.

10

A58895

GASKET

- exhaust manifold (steel faced)

6шт.

14

A59077

STUD

- manifold to head (3/8" N.C. x 1-3/4")

24шт.

15

92-6

LOCK WASHER,3/8"

24шт.

16

25-106

NUT,3/8"-16, G5

- intake manifold (3/8" N.C. hex.)

12шт.

17

131-903

NUT,3/8"-16

NUT - exhaust manifold (3/8" N.C. Seez-Pruf)

12шт.

18

A20917

PLUG

- intake manifold (1-1/8" N.F. hex. hd.)

1шт.

19

A20916

MANIFOLD GASKET

GASKET - plug

1шт.
