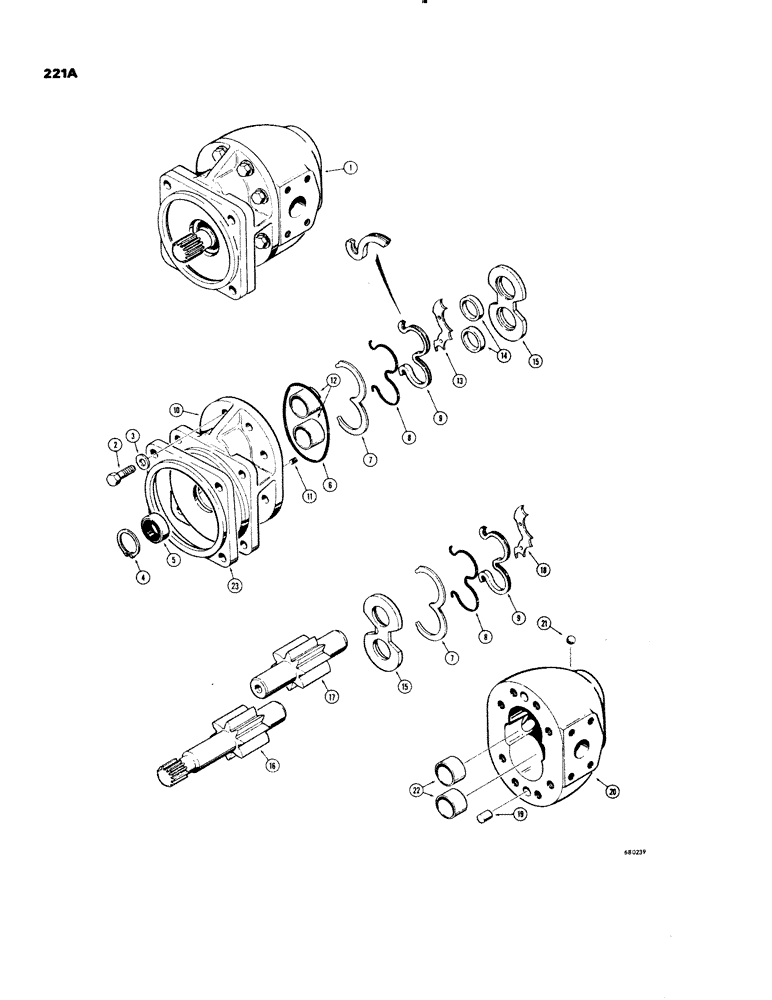

Запчасти Case 1150 (221A) - R25565, R30317 AND R30318 PUMPS, TYRONE (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
R25565
PUMP, HYDRAULIC
PUMP - hydraulic (Tyrone #20350) Loader models, Includes: Ref. 2 - 23
1шт.
1
R30318
PUMP
- hydraulic (Tyrone #20350C-WP) Loader models, Includes: Ref. 2 - 23
1шт.
1
R30317
PUMP
- hydraulic (Tyrone #20300C-WP) Dozer models, Includes: Ref. 2 - 23
1шт.
2
113-405
X
HHCS - 1/2" - 13 NC x 1-1/2"
8шт.
3
A39046
WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk
- special
8шт.
R30177
KIT
- pump seal, rebuild, Includes: Ref. 4 - 9
1шт.
4
D41419
RING
- snap
1шт.
5
D41418
SEAL
- drive shaft
1шт.
6
D43797
SEAL
- "O" ring, cover
1шт.
7
D44102
RING
- retaining
2шт.
8
L32845
O-RING
- "O" ring
2шт.
9
D44099
RING
- backup
2шт.
R29827
COVER
ASSEMBLY - R25565 pump, Includes: Ref. 10 - 12
1шт.
R30408
COVER ASSEMBLY - R30317 and R30318 pump, Includes: Ref. 10 - 12
1шт.
10
NSS
NOT SOLD SEPARAT
COVER - pump
1шт.
11
221-849
PLUG,Hex Soc, 1/8"-27
- hex., socket head (1/8" NPT)
1шт.
12
L32840
BUSHING
- R29827 cover
2шт.
12
NSS
NOT SOLD SEPARAT
BUSHING - R30408 cover
2шт.
13
D44101
PLATE
- isolation, top
1шт.
14
D43796
SPACER
RING - steel
2шт.
15
D42856
PLATE
- pressure
2шт.
R29829
GEAR-SET
GEAR SET - matched, drive and driven (R25565 and R30317 pumps), Includes: Ref. 16 and 17
1шт.
R32487
GEAR
SET - matched, drive and driven (R30318 pump), Includes: Ref. 16 and 17
1шт.
16
NSS
NOT SOLD SEPARAT
GEAR - drive
1шт.
17
NSS
NOT SOLD SEPARAT
GEAR - driven
1шт.
18
D44100
PLATE
- isolation, bottom
1шт.
19
D41414
PIN
DOWEL -, Serial Range: body-cover
2шт.
R29826
BODY ASSEMBLY - R25565 and R30318 pump, Includes: Ref. 20 - 22
1шт.
D52493
VALVE BODY
BODY ASSEMBLY - R30317 pump, Includes: Ref. 20 - 22
1шт.
20
NSS
NOT SOLD SEPARAT
BODY - pump
1шт.
21
211-5
BALL,3/16" Dia
- steel, . 3/16" Dia
1шт.
22
L32840
BUSHING
- R29826 body
2шт.
22
D52489
BUSHING
- D52493 body
2шт.
23
D44127
PLATE
- adapter
1шт.
Выбрано товаров: 34
