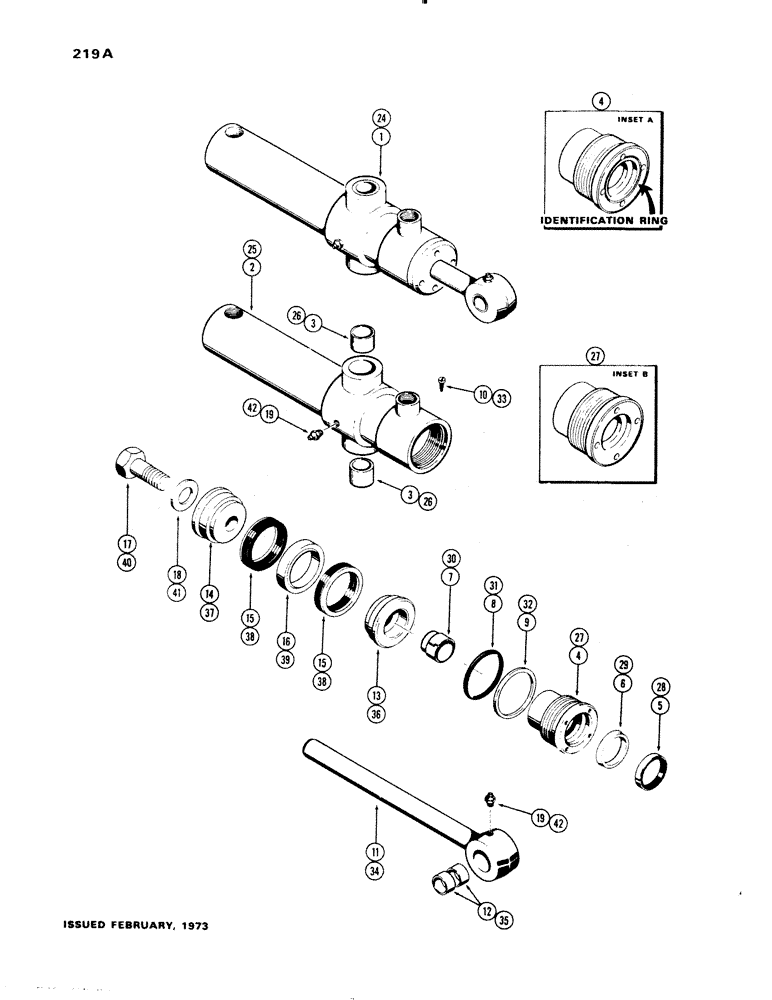

Запчасти Case 1150 (219A) - G33615 RIPPER CYLINDER, 4" DIA. CYLINDER WITH 13" STROKE W/SOLID OUTER WIPER & SPLIT INNER WIPER (07) - HYDRAULIC SYSTEM

1

G33615

CYLINDER

ASSY. - ripper, Includes: Ref. 2 - 19

1шт.

2

D36433

TUBE

ASSY. - cylinder body, Includes: Ref. 3

1шт.

3

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- tube trunnion

2шт.

G33640

GLAND

ASSY., Includes: Ref. 4 - 9

4шт.

4

NSS

NOT SOLD SEPARAT

GLAND - (w/identification ring) (See Inset A)

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16")

1шт.

Part of seal kit cylinder repair P/N G32615

1шт.

6

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 7/16")

1шт.

Part of seal kit cylinder repair P/N G32615

1шт.

7

D27380

SCRAPER RING

WIPER - piston rod, inner (split type)

1шт.

Part of seal kit cylinder repair P/N G32615

1шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4 x 4-1/4 x 1/8")

1шт.

Part of seal kit cylinder repair P/N G32615

1шт.

9

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland "O" Ring

1шт.

Part of seal kit cylinder repair P/N G32615

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

11

G33616

ROD

ASSY - piston (2" dia.) (w/identification ring), Includes: Ref. 12

1шт.

12

D29325

BUSHING,38.33mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

13

G33159

PISTON

- split (rod end) (w/identification ring)

1шт.

14

D46930

PISTON

- split (bolt end)

1шт.

G33239

PACKING

ASSY. - piston, Includes: Ref. 15 and 16

1шт.

Part of seal kit cylinder repair P/N G32615

1шт.

15

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" Type

2шт.

16

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

17

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8, Piston

1шт.

18

G32351

WASHER

- piston bolt (1-11/32 x 2-1/2 x 9/64")

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

2шт.

24

G32585

HYDRAULIC CYLINDER

CYLINDER ASSY. - ripper, Includes: Ref. 25 - 42, G32585 without gland identification ring

1шт.

25

D36433

TUBE

ASSY. - cylinder body, Includes: Ref. 26, G32585 ripper without gland identification ring

1шт.

26

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- tube trunnion, G32585 ripper cylinder without gland identification ring

2шт.

G32737

GLAND

ASSY., Includes: Ref. 27 - 32, G32585 ripper cylinder without identification ring

1шт.

27

NSS

NOT SOLD SEPARAT

GLAND - (w/o identification ring) (See Inset B), G32585 ripper cylinder

1шт.

28

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16"), G32585 ripper cylinder without gland identification ring

1шт.

Part of seal kit cylinder repair P/N G32614

1шт.

29

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 7/16"), G32585 ripper cylinder without gland identification ring

1шт.

Part of seal kit cylinder repair P/N G32614

1шт.

30

D27380

SCRAPER RING

WIPER - piston rod, inner (split type), G32585 ripper cylinder without gland identification ring

1шт.

Part of seal kit cylinder repair P/N G32614

1шт.

31

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4 x 4-1/4 x 1/8"), G32585 ripper cylinder without identification ring

1шт.

Part of seal kit cylinder repair P/N G32614

1шт.

32

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland "O" Ring , G32585 Ripper cylinder without identification ring

1шт.

Part of seal kit cylinder repair P/N G32614

1шт.

33

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping), G32585 ripper cylinder without identification ring

1шт.

34

D36428

PISTON ROD

ROD ASSY. - piston (2" dia.) (w/o identification ring), Includes: Ref. 35, G32585 ripper cylinder

1шт.

35

D29325

BUSHING,38.33mm ID x 53.98mm OD x 22.23mm L

- piston rod, G32585 ripper cylinder without gland identification ring

2шт.

36

D46424

PISTON

- split (rod end) (w/o identification ring), G32585 ripper cylinder

1шт.

37

D46930

PISTON

- split (bolt end), G32585 ripper cylinder without gland identification ring

1шт.

G33239

PACKING

ASSY. - piston, Includes: Ref. 38 and 39, G32585 ripper cylinder without gland identification ring

1шт.

38

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" Type, G32585 ripper cylinder without gland identification ring

2шт.

39

NSS

NOT SOLD SEPARAT

RING - center bearing, G32585 ripper cylinder without gland identification ring

1шт.

40

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8, Piston, G32585 ripper cylinder without gland identification ring

1шт.

41

G32351

WASHER

- piston bolt (1-11/32 x 2-1/2 x 9/64"), G32585 ripper cylinder without gland identification ring

1шт.

42

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.), G32585 ripper cylinder without gland identification ring

2шт.

G32614

SEAL KIT

- cylinder repair, Incl. Refs. 28, 29, 30, 31 and 32

1шт.
